Haas Automation Vertical Machining Centers

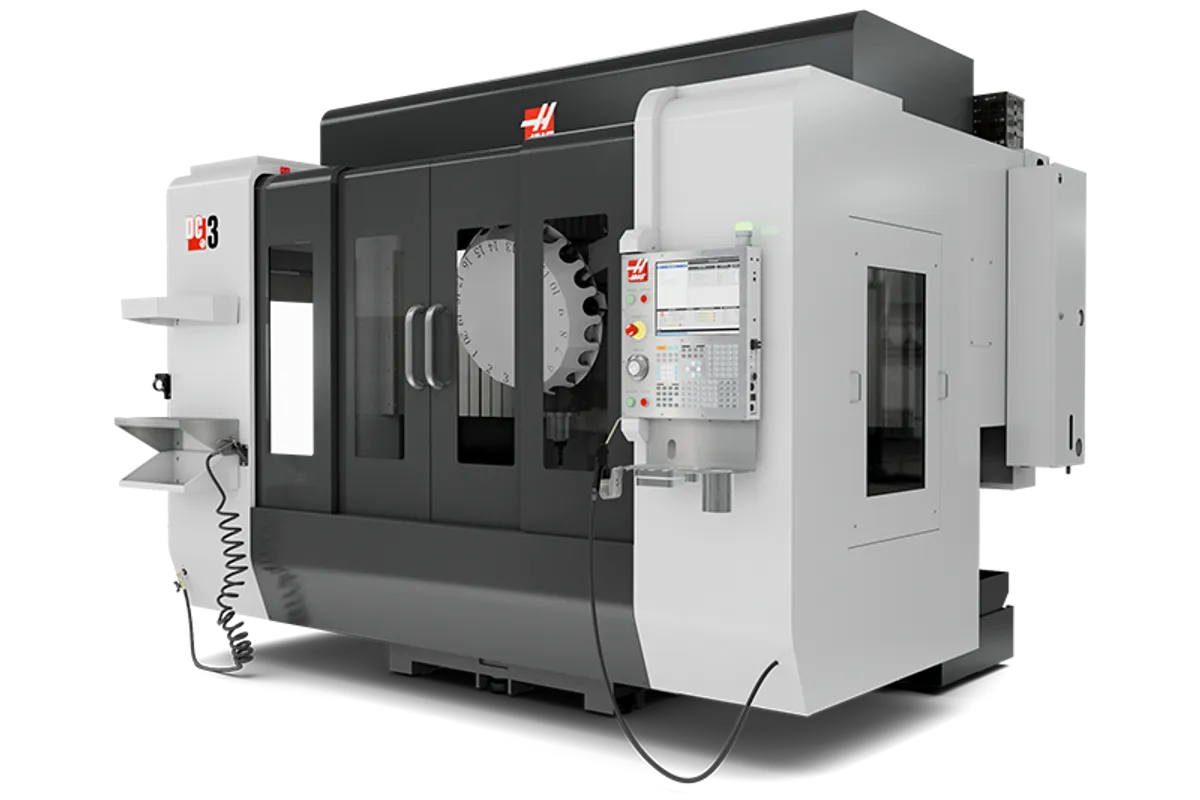

Haas DC-3-40 Drill Center

$85,000 - $110,000 Updated 2026-03-19

Key Specifications

X Travel

1,016 mm (40 in)

Y Travel

660 mm (26 in)

Z Travel

394 mm (15.5 in)

Max Spindle

10000 rpm

Spindle Taper

CT or BT 40

Tool Capacity

18+1 SMTC

Overview

The Haas DC-3-40 Drill Center extends the 40-taper drill center platform to a larger work envelope, stepping up from the DC-2-40 with 1,016 x 660 x 394 mm (40 x 26 x 15.5 in) of travel. That 40-inch X-travel and 26-inch Y-travel put larger plates, manifolds, and production fixtures well within reach while keeping the rear chip discharge and high-speed DNA that define the DC series.

The spindle is the same 11.2 kW (15 hp) inline direct-drive unit running at 10,000 RPM with 62 Nm (46 ft-lbf) of torque through a CT/BT 40 taper. Optional 12,000 and 15,000 RPM spindle upgrades are available. The 40-taper provides solid tool rigidity for larger drills, reamers, and light face milling. High-speed rigid tapping runs at 5,000 RPM with 4x retract.

The table measures 1,270 x 457 mm (50 x 18 in) and supports up to 454 kg (1,000 lb), a meaningful step up from the DC-2-40's 500 lb capacity. The 18+1 SMTC delivers 1.75-second tool-to-tool and 2.0-second chip-to-chip times. Rapids hit 61.0 m/min (2,400 ipm) on all axes, maintaining the same production speed as the smaller DC models.

Rear chip discharge is standard, keeping the work zone clear for high-volume production. The larger envelope compared to the DC-2-40 accommodates structural panels, large manifold blocks, and multi-part fixtures that need 40 inches of X-travel. Positioning accuracy is plus or minus 0.010 mm (0.0004 in) with plus or minus 0.005 mm (0.0002 in) repeatability.

At approximately $85,000-$110,000 configured, the DC-3-40 fills the gap between the DC-2-40 and dedicated VF-series machines for shops that need a large-envelope drill center with automatic chip evacuation. If your work is primarily drill-and-tap on larger parts, the DC-3-40's rear chip discharge and high rapids give it a throughput edge over a standard VMC.

Full Specifications

Parameter	Value
X-Axis Travel	1,016 mm (40 in)
Y-Axis Travel	660 mm (26 in)
Z-Axis Travel	394 mm (15.5 in)
Max Spindle Speed	10000 rpm
Spindle Taper	CT or BT 40
Spindle Motor Power	15.0 hp
Spindle Torque Max	62 Nm (46 ft-lbf) @ 1,700 RPM
Spindle Drive	Inline Direct-Drive
Tool Capacity	18+1 SMTC
Tool To Tool	1.50 s
Chip To Chip	2.50 s
Max Tool Diameter	4.3 in
Max Tool Weight	11.0 lb
Table Size	1,270 x 457 mm (50 x 18 in)
Table Load Max	454 kg (1,000 lb)
Rapid Traverse Rate	61.0 m/min (2,400 IPM) all axes
Max Cutting Feed	30.5 m/min (1,200 IPM)
Max Tapping Speed	5,000 RPM
Chip Discharge	Rear discharge standard
Positioning Accuracy	±0.010 mm (±0.0004 in)
Repeatability	±0.005 mm (±0.0002 in)
Machine Weight	3,175 kg (7,000 lb)
Coolant Capacity	66 gal
CNC Control	Haas Next Generation Control (NGC)
Travels	S.A.E
X Axis	78.70 in
Y Axis	19.70 in
Z Axis	11.80 in
Spindle Nose To Table	5.9 in
Spindle	S.A.E
Max Rating	15.0 hp
Max Speed	10000 rpm
Max Torque	52.0 ft-lbf @ 3000 rpm
Drive System	Inline Direct-Drive
Taper	CT40
Bearing Lubrication	Grease Packed
Cooling	Liquid Cooled
Table	S.A.E
Length	82.7 in
Width	19.7 in
T Slot Width	0.630 in
T Slot Center Distance	3.94 in
Number Of Std T Slots	5
Max Weight On Table	1323 lb
Feedrates	S.A.E
Max Cutting	1100 ipm
Rapids On X	1200 ipm
Rapids On Y	1400 ipm
Rapids On Z	1400 ipm
Axis Motors	S.A.E
Max Thrust X	2054 lbf
Max Thrust Y	2054 lbf
Max Thrust Z	2054 lbf
Tool Changer	S.A.E
Type	Turret
Capacity	20
Max Tool Diameter Large	6.3 in
Max Tool Length	7.90 in
Tapping	S.A.E
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	40 A
Input Ac Voltage High	440 VAC
Full Load Amps High	20 A
Haas Rotary	HAAS MACHINE
Ha2ts	DC-3/40
Ha5c	DC-3/40
Ha5c T	DC-3/40
Ha5c2	DC-3/40
Ha5c2 T	DC-3/40
Ha5c3	DC-3/40
Ha5c3 T	DC-3/40
Ha5c4	DC-3/40
Ha5c4 T	DC-3/40
Ha5cs	DC-3/40
Hqda5	DC-3/40
Hrt100	DC-3/40
Hrt160	DC-3/40
Hrt160sp	DC-3/40
Hrt160ss	DC-3/40
Hrt210	DC-3/40
Hrt210hs	DC-3/40
Hrt210ht	DC-3/40
Hrt210sp	DC-3/40
Hrt210ss	DC-3/40
Hrta5	DC-3/40
Hrta6	DC-3/40
T5c	DC-3/40
T5c2	DC-3/40
T5c3	DC-3/40
T5c4	DC-3/40
Th240	DC-3/40
Trt70	DC-3/40

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,016 mm (40 in) X-travel handles large plates and multi-part fixtures that exceed the DC-2-40's 28-inch envelope
40-taper spindle with 2,400 IPM rapids combines tool rigidity with high-speed drilling performance across a wide travel range
Rear chip discharge provides automatic chip evacuation critical for high-volume production lines
1,000 lb table load doubles the DC-2-40 capacity for heavier fixtures and larger workpieces
1.75-second tool-to-tool changes maintain production speed on multi-tool drill patterns across the wider table
Same NGC control and 40-taper tooling as DM and VF-series for shop floor standardization

Limitations

15 hp spindle limits heavier milling operations; for versatile mill work on this envelope, consider a VF-3 or VF-4
Dedicated drill center format is less versatile than a standard VMC for mixed milling work
Larger footprint than DC-1-40 and DC-2-40 without a proportional increase in cutting capability
18+1 tool capacity may be limiting for complex multi-operation parts that need more tool positions

Best For

High-volume drill-and-tap operations on large plates, structural panels, and manifolds up to 40 inches Automotive and industrial production requiring precision hole patterns across wide workpieces Production lines where 40-taper rigidity and automatic rear chip evacuation are both required Shops running dedicated drilling stations on larger parts alongside VF-series milling machines Aerospace bracket and panel production requiring precision hole patterns on parts up to 1,016 mm

Frequently Asked Questions

01 What does a new Haas DC-3-40 cost?

Base price starts around $85,000. With through-spindle coolant, probing, and spindle upgrade, configured price runs $95,000-$110,000.

02 What is the difference between the DC-3-40 and the DC-2-40?

The DC-3-40 extends X-travel from 711 mm to 1,016 mm (28 to 40 in) and Y-travel from 406 mm to 660 mm (16 to 26 in). Table load increases from 500 lb to 1,000 lb. Same spindle, same speed. Choose the DC-3-40 for larger parts that need more travel and table capacity.

03 Should I get a DC-3-40 or a VF-3?

The VF-3 offers comparable travel with more milling capability and a larger spindle. The DC-3-40 adds rear chip discharge for automatic chip evacuation in dedicated drilling production. Choose the DC-3-40 for high-volume drill/tap lines; choose the VF-3 for mixed milling and drilling.

04 Can the DC-3-40 handle light milling?

Yes. The 40-taper spindle supports face milling, shallow pocketing, and contouring in aluminum and softer materials. For significant milling volume, a VF-3 or VF-4 is the better choice since they are optimized for heavier cutting.
