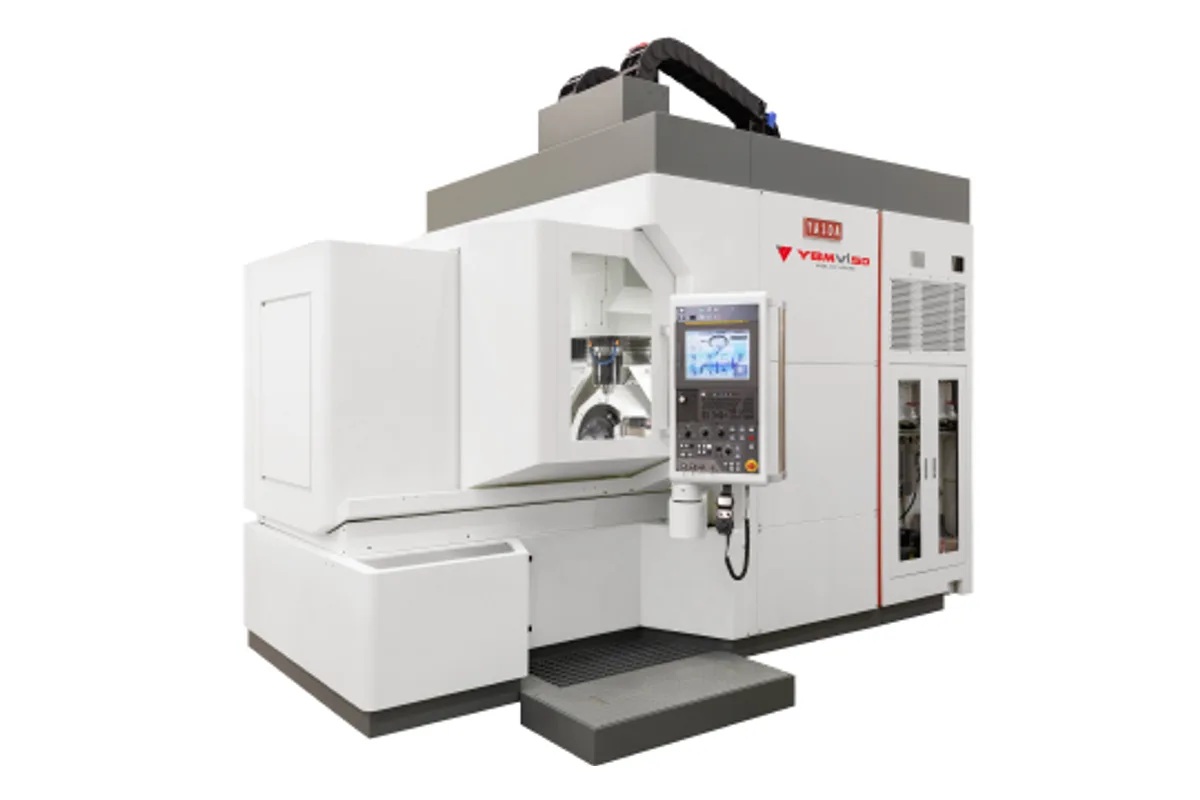

Yasda YBM Vi50
Image: yasda.co.jp, Yasda Precision
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Yasda YBM Vi50 cost?
Price estimate
We do not have a price for the Yasda YBM Vi50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Yasda YBM Vi50 is a vertical 5-axis machine that Yasda introduces as its latest, with a newly designed structure aimed at accurate machining of bigger workpieces. Its travels are unusual in their proportions: 720 mm (28.3 in) in X, 1,100 mm (43.3 in) in Y and 500 mm (19.7 in) in Z.
A Y travel longer than X is the detail to think about. On a vertical 5-axis machine a long travel in one direction is normally there so the spindle can follow a large part as the rotary axes move it, so the layout points to larger workpieces than the YBM Vi40 handles with its 900 mm, 500 mm and 450 mm travels. Yasda publishes no table size, load or rotary axis ranges on the product page, and those are the first figures to request.
The spindle runs 100-24,000 min-1 with a MAS BT40 taper, listed as a BIG plus spindle, and HSK-A63 is optional. The magazine holds 60 tools, with 100 tools as the option. The control is a FANUC 31i-B5 Plus with iHMI, and the machine is 3,612 mm (142.2 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 720 mm (28.3 in) |
| Y-Axis Travel | 1,100 mm (43.3 in) |
| Z-Axis Travel | 500 mm (19.7 in) |
| Max Spindle Speed | 100-24,000 min-1 |
| Spindle Taper | MAS BT40 (BIG plus spindle); HSK-A63 opt. |
| Tool Capacity | 60 tools (100 tools opt.) |
| CNC Control | FANUC 31i-B5 Plus (iHMI) |
| Machine Height | 3,612 mm (142.2 in) |
Specifications sourced from yasda.co.jp — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,100 mm (43.3 in) of Y travel with 720 mm (28.3 in) in X and 500 mm (19.7 in) in Z
- 100-24,000 min-1 MAS BT40 spindle (BIG plus), with HSK-A63 as an option
- 60 tools as standard, 100 tools optional
- FANUC 31i-B5 Plus control with iHMI
Limitations
- No table size, table load or rotary axis ranges are published on the product page
- Neither a pallet changer nor a robot interface is listed among the options
- Machine height of 3,612 mm (142.2 in)
Best For
Frequently Asked Questions
01
720 mm (28.3 in) in X, 1,100 mm (43.3 in) in Y and 500 mm (19.7 in) in Z. The YBM Vi40 has 900 mm, 500 mm and 450 mm, so the newer machine is much longer in Y and shorter in X.
02
A 100-24,000 min-1 spindle with a MAS BT40 taper, described as a BIG plus spindle, with HSK-A63 as an optional taper. The NC unit is a FANUC 31i-B5 Plus with iHMI.
03
The ATC holds 60 tools in the base machine, and tool storage for 100 tools is listed as optional equipment. The YBM Vi40 also starts at 60 tools.
