Vollmer QS 860 / QSF 860

Q: How much does the Vollmer QS 860 / QSF 860 cost?

The price estimate for the Vollmer QS 860 / QSF 860 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vollmer-qs860-qsf860#price; the request is passed to Vollmer or an authorised dealer.

Specs verified 2026-10-05 · vollmer-group.com Updated 2026-10-05

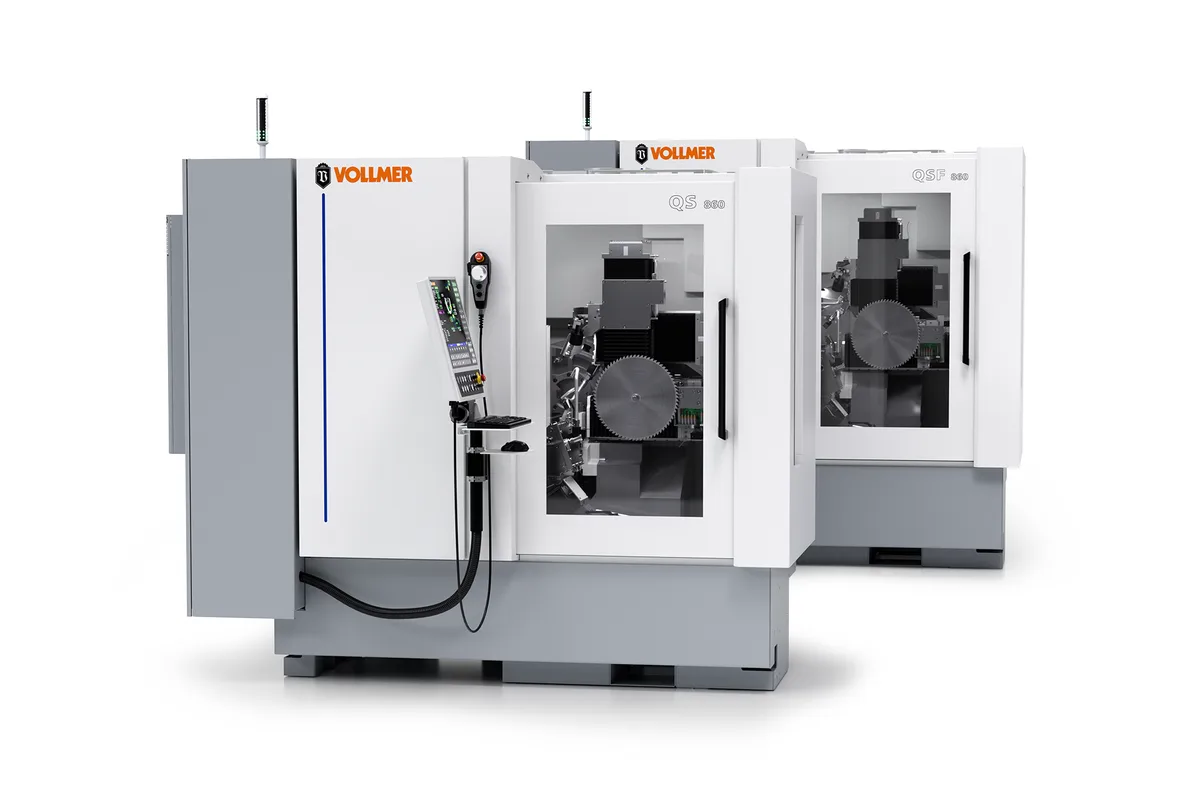

Vollmer QS 860 and QSF 860 disc erosion machines

Image: vollmer-group.com, Vollmer

Key Specifications

saw blade diameter

80 to 860 mm (3.1 to 33.9 in)

bore diameter

From 10 mm (0.39 in)

blade thickness

Up to 14 mm (0.55 in)

tooth pitch

Up to 180 mm (7.1 in)

cutting edge length

Up to 15 mm (0.59 in)

qs 860 clearance angle

+5° to +45°

How much does the Vollmer QS 860 / QSF 860 cost?

Price estimate

Uncertain

We do not have a price for the Vollmer QS 860 / QSF 860 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vollmer QS 860 / QSF 860 are disc erosion machines for PCD circular saw blades. Their diamond tips are eroded with a rotating electrode, not ground. The QS 860 works on the tooth tops and the QSF 860 on the sides, for blades from 80 to 860 mm (3.1 to 33.9 in).

They are the erosion counterparts of Vollmer's CS and CSF sharpeners and share that platform: a polymer concrete monoblock, measuring systems for automatic set-up, and operation by touch screen or keypad. The power source is Vollmer's Vpulse EDM erosion generator. The maker gives the kinematics as 8-axis or 9-axis.

Erosion is slow next to grinding, and the wheel speeds show it. The tooth top eroding wheel, 125 to 127 mm (4.9 to 5.0 in), turns at max. 10 m/s. The side wheels, 75 to 125 mm (3.0 to 4.9 in), turn at max. 5 m/s. An additional unit on the QS 860 carries a smaller wheel of 35 to 60 mm (1.4 to 2.4 in). Cutting edge length is up to 15 mm (0.59 in) on both machines, which fits the short PCD tips used on panel-sizing and scoring blades.

The angle table is brief. Clearance angle on the QS 860 is +5° to +45° with bevels on the tooth top up to 60°. On the QSF 860, tangential clearance is 0° to +8° and radial clearance -10° (-20°) to +6°. No tooth face row appears for either machine. Connected load is approx. 5.0 kVA and approx. 7.0 kVA, and each needs 6 bar (87 psi) of air. Weights are approx. 2,950 kg (6,504 lb) and approx. 2,850 kg (6,283 lb).

Full Specifications

Parameter	Value
Saw Blade Diameter	80 to 860 mm (3.1 to 33.9 in)
Bore Diameter	From 10 mm (0.39 in)
Blade Thickness	Up to 14 mm (0.55 in)
Tooth Pitch	Up to 180 mm (7.1 in)
Cutting Edge Length	Up to 15 mm (0.59 in)
Qs 860 Clearance Angle	+5° to +45°
Qsf 860 Tangential Clearance Angle	0° to +8°
Qsf 860 Radial Clearance Angle	-10° (-20°) to +6°
Qs 860 Bevel Grinding Tooth Top	Up to 60°
Qs 860 Tooth Height Difference	Up to 3 mm (0.12 in)
Qs 860 Tooth Top Eroding Wheel	125 to 127 mm (4.9 to 5.0 in) outside diameter, 32 mm (1.3 in) bore, max. 10 m/s
Qsf 860 Side Eroding Wheel	75 to 125 mm (3.0 to 4.9 in) outside diameter, 32 mm (1.3 in) bore, max. 5 m/s
Qs 860 Additional Unit Wheel	35 to 60 mm (1.4 to 2.4 in) outside diameter, max. 10 m/s
Power Requirement	Approx. 5.0 kVA (QS 860); approx. 7.0 kVA (QSF 860)
Compressed Air	6 bar (87 psi)
Machine Weight	Approx. 2,950 kg (6,504 lb) (QS 860); approx. 2,850 kg (6,283 lb) (QSF 860)

Specifications sourced from vollmer-group.com — verified 2026-10-05

Strengths & Limitations

Strengths

Purpose-built for PCD saw blades, with Vollmer's Vpulse EDM erosion generator on both machines
Covers blades from 80 to 860 mm (3.1 to 33.9 in) and up to 14 mm (0.55 in) thick
Measuring systems for fully automated set-up and work processes
Can be combined with the ND handling system, with up to three machines in one cell
Tooth pitches up to 180 mm (7.1 in) are in the table

Limitations

Top and side erosion are on separate machines
Cutting edge length is limited to 15 mm (0.59 in)
The table lists no tooth face machining for either machine
The QSF 860 needs approx. 7.0 kVA against approx. 5.0 kVA for the QS 860

Best For

Producing PCD circular saw blades Servicing PCD panel-sizing and scoring blades Furniture, flooring and panel plants with their own tool room Automated cells with the ND handling system

Frequently Asked Questions

01 What do the Vollmer QS 860 and QSF 860 do?

They erode the cutting edges of PCD-tipped circular saw blades with rotating disc electrodes. In the specification table the QS 860 has the tooth top eroding wheel, the clearance angle range of +5° to +45° and bevels up to 60°, and the QSF 860 has the side eroding wheel with tangential and radial clearance angles.

02 Which blade sizes fit the Vollmer QS 860 / QSF 860?

Outside diameters from 80 to 860 mm (3.1 to 33.9 in), bores from 10 mm (0.39 in), blade thickness up to 14 mm (0.55 in) and tooth pitch up to 180 mm (7.1 in). The cutting edge length that can be eroded is up to 15 mm (0.59 in).

03 How do they relate to the CS 860 / CSF 860?

Same platform, different process. The CS 860 / CSF 860 grinds carbide-tipped blades, with wheel speeds up to 57 m/s on the tooth face. The QS and QSF erode PCD at max. 10 m/s and max. 5 m/s. Both pairs take 80 to 860 mm (3.1 to 33.9 in) blades and weigh approx. 2,950 kg (6,504 lb) and approx. 2,850 kg (6,283 lb).

04 What eroding wheels are used?

On the QS 860, a tooth top wheel of 125 to 127 mm (4.9 to 5.0 in) with a 32 mm (1.3 in) bore, plus an additional unit with a wheel of 35 to 60 mm (1.4 to 2.4 in), both at max. 10 m/s. On the QSF 860, side wheels of 75 to 125 mm (3.0 to 4.9 in) at max. 5 m/s.
