Vollmer CS 860 / CSF 860

Q: How much does the Vollmer CS 860 / CSF 860 cost?

The price estimate for the Vollmer CS 860 / CSF 860 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vollmer-cs860-csf860#price; the request is passed to Vollmer or an authorised dealer.

Specs verified 2026-10-05 · vollmer-group.com Updated 2026-10-05

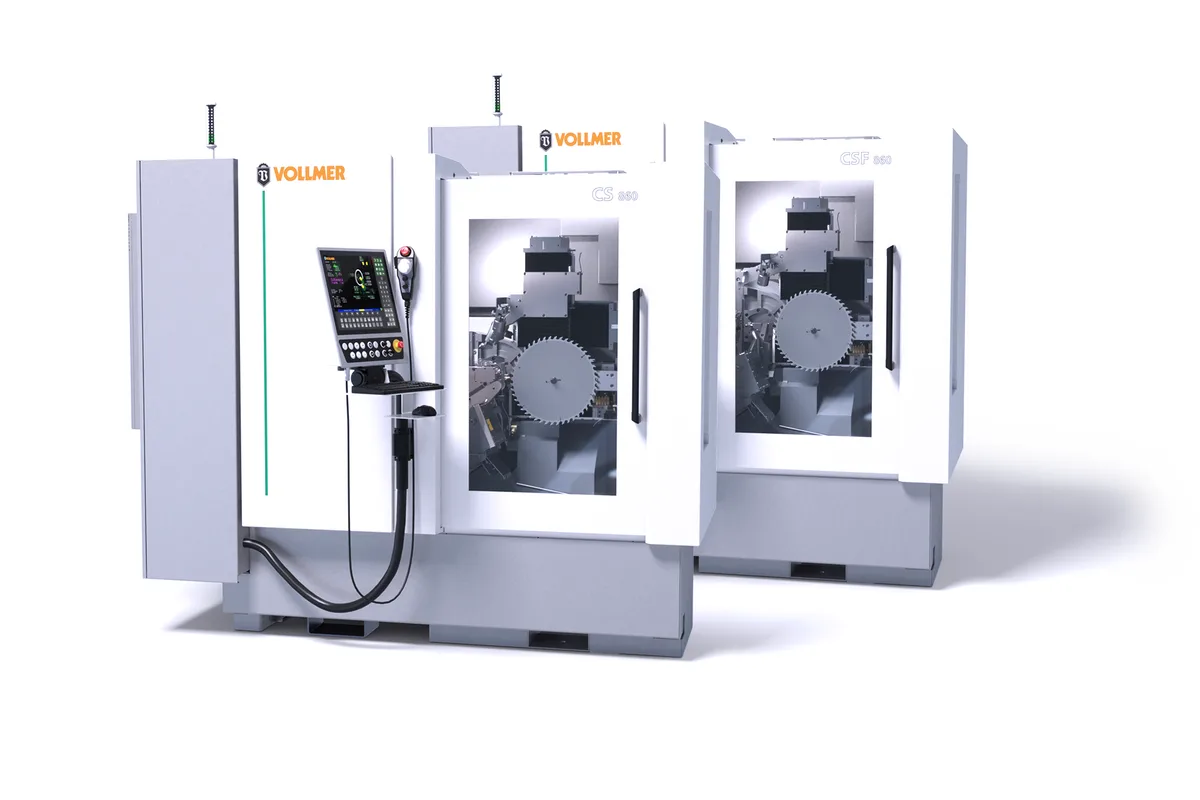

Vollmer CS 860 and CSF 860 sharpening machines

Image: vollmer-group.com, Vollmer

Key Specifications

saw blade diameter

80 to 860 mm (3.1 to 33.9 in)

bore diameter

From 10 mm (0.39 in)

blade thickness

Up to 14 mm (0.55 in)

tooth pitch

Up to 180 mm (7.1 in)

cutting edge length

Up to 20 mm (0.79 in) (CS 860); up to 30 mm (1.2 in) (CSF 860)

cs 860 hollow face grinding path

Up to 15 mm (0.59 in)

How much does the Vollmer CS 860 / CSF 860 cost?

Price estimate

Uncertain

We do not have a price for the Vollmer CS 860 / CSF 860 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vollmer CS 860 / CSF 860 is Vollmer's fully automated pair for sharpening carbide-tipped circular saw blades from 80 to 860 mm (3.1 to 33.9 in). The CS 860 grinds tooth faces and tooth tops. The CSF 860 grinds the sides. They look alike and share one kinematic concept, and Vollmer describes them as machines with 8-axis or 7-axis kinematics.

Both stand on a monoblock of polymer concrete, and neither has a coolant tank: the coolant returns to an external supply, so there is no sump to clean. Three measuring systems are fitted, a measuring cube for the wheels, a sensor for the tooth and an acoustic sensor for set-up. Up to three machines can be loaded by Vollmer's ND handling system. This is equipment for a blade factory or a high-volume service, not a corner of a joinery.

The CS 860 carries a wheel for each job. The tooth face wheel is 196 to 202 mm (7.7 to 8.0 in) and runs from 17 m/s to 57 m/s; the tooth top wheel is 125 to 127 mm (4.9 to 5.0 in). A separate chip breaker wheel of 26 to 50 mm (1.0 to 2.0 in) and a hollow face unit turning at 35,000 to 60,000 rpm complete the set. Tooth surface angle runs from -35° to +40°, bevels reach 60° on the top, and tooth height differences up to 3 mm (0.12 in) are handled.

On the CSF 860 the side wheel is 72 to 102 mm (2.8 to 4.0 in). Tangential clearance is 0° to +8° and radial clearance -10° (-20°) to +6°, with a cutting edge length up to 30 mm (1.2 in). It draws more power, approx. 7.8 kVA against approx. 4.2 kVA, and weighs approx. 2,850 kg (6,283 lb) to the CS 860's approx. 2,950 kg (6,504 lb). Blades may be up to 14 mm (0.55 in) thick on either.

Full Specifications

Parameter	Value
Saw Blade Diameter	80 to 860 mm (3.1 to 33.9 in)
Bore Diameter	From 10 mm (0.39 in)
Blade Thickness	Up to 14 mm (0.55 in)
Tooth Pitch	Up to 180 mm (7.1 in)
Cutting Edge Length	Up to 20 mm (0.79 in) (CS 860); up to 30 mm (1.2 in) (CSF 860)
Cs 860 Hollow Face Grinding Path	Up to 15 mm (0.59 in)
Cs 860 Relief Grinding on The Top	Up to 40 mm (1.6 in)
Tooth Surface Angle	-35° to +40° (CS 860); -40° to +40° (CSF 860)
Cs 860 Tooth Surface Angle with Hollow Face	-10° to +25°
Cs 860 Clearance Angle	+5° to +45°
Csf 860 Tangential Clearance Angle	0° to +8°
Csf 860 Radial Clearance Angle	-10° (-20°) to +6°
Cs 860 Bevel Grinding Tooth Top	Up to 60°
Cs 860 Bevel Grinding Tooth Face	Up to 30°
Cs 860 Bevel Grinding Negative Tooth Face	Up to 30°
Cs 860 Tooth Height Difference	Up to 3 mm (0.12 in)
Cs 860 Tooth Face Wheel	196 to 202 mm (7.7 to 8.0 in) outside diameter, 32 mm (1.3 in) bore, 17 m/s to 57 m/s
Csf 860 Side Wheel	72 to 102 mm (2.8 to 4.0 in) outside diameter, 32 mm (1.3 in) bore, 8 m/s to 41 m/s (2000–8000 rpm)
Cs 860 Tooth Top Wheel	125 to 127 mm (4.9 to 5.0 in) outside diameter, 32 mm (1.3 in) bore, 11 m/s to 36 m/s
Cs 860 Chip Breaker Wheel	26 to 50 mm (1.0 to 2.0 in) outside diameter, 11 m/s to 52 m/s
Cs 860 Hollow Face Wheel	6 mm (0.24 in) shank diameter, 35,000 to 60,000 rpm
Power Requirement	Approx. 4.2 kVA (CS 860); approx. 7.8 kVA (CSF 860)
Compressed Air	6 bar (87 psi)
Machine Weight	Approx. 2,950 kg (6,504 lb) (CS 860); approx. 2,850 kg (6,283 lb) (CSF 860)

Specifications sourced from vollmer-group.com — verified 2026-10-05

Strengths & Limitations

Strengths

Monoblock structure in polymer concrete on both machines
No coolant tank on the machine, thanks to the coolant return flow
Three measuring systems: measuring cube, measuring sensor and structure-borne sound
Multi-surface program handles up to 90 surfaces, on one tooth or split between up to 30 teeth
Up to three machines can be loaded automatically with the ND handling system
IoT gateway is fitted as standard

Limitations

Two machines are needed for a complete tooth: the CS 860 for face and top, the CSF 860 for the sides
Maximum blade diameter is 860 mm (33.9 in); larger sawmill blades need the 1,300 mm (51.2 in) frame of the CHX 840 / CHX 1300
The CSF 860 needs approx. 7.8 kVA, nearly twice the CS 860
An external coolant supply has to be planned, since there is no tank on the machine

Best For

Saw blade manufacturers producing in series Sharpening services with a high daily workload Unmanned cells with the ND handling system Blades up to 14 mm (0.55 in) thick with chip breakers or hollow faces

Frequently Asked Questions

01 What is the difference between the CS 860 and the CSF 860?

The CS 860 sharpens tooth faces and tooth tops, including hollow faces, chip breaker grooves, bevels and relief grinding on the top up to 40 mm (1.6 in). The CSF 860 grinds the tooth sides, with tangential clearance from 0° to +8° and radial clearance from -10° (-20°) to +6°. Both take blades from 80 to 860 mm (3.1 to 33.9 in).

02 How many axes do the machines have?

Vollmer describes the CS 860 and CSF 860 as two fully CN-controlled machines with 8-axis or 7-axis kinematics. An optional controlled lateral adjustment adds one axis, turning an 8-axis or 7-axis machine into a 9-axis or 8-axis machine, for saws with a clamp in mixed operation.

03 Which wheels does the CS 860 use?

A tooth face wheel of 196 to 202 mm (7.7 to 8.0 in) at 17 m/s to 57 m/s, a tooth top wheel of 125 to 127 mm (4.9 to 5.0 in) at 11 m/s to 36 m/s, a chip breaker wheel of 26 to 50 mm (1.0 to 2.0 in) at 11 m/s to 52 m/s, and a hollow face tool on a 6 mm (0.24 in) shank at 35,000 to 60,000 rpm.

04 Why is there no coolant tank?

Vollmer uses a coolant return flow instead of a tank inside the machine, and gives the reason that dirt and grinding residue would otherwise settle there. For the buyer it means the filtration and supply sit outside the machine and need to be part of the installation plan.

05 What are the installation figures?

Connected load is approx. 4.2 kVA for the CS 860 and approx. 7.8 kVA for the CSF 860. Both need compressed air at 6 bar (87 psi). The CS 860 weighs approx. 2,950 kg (6,504 lb) and the CSF 860 approx. 2,850 kg (6,283 lb).
