Haas Automation Vertical Machining Centers (VMC)

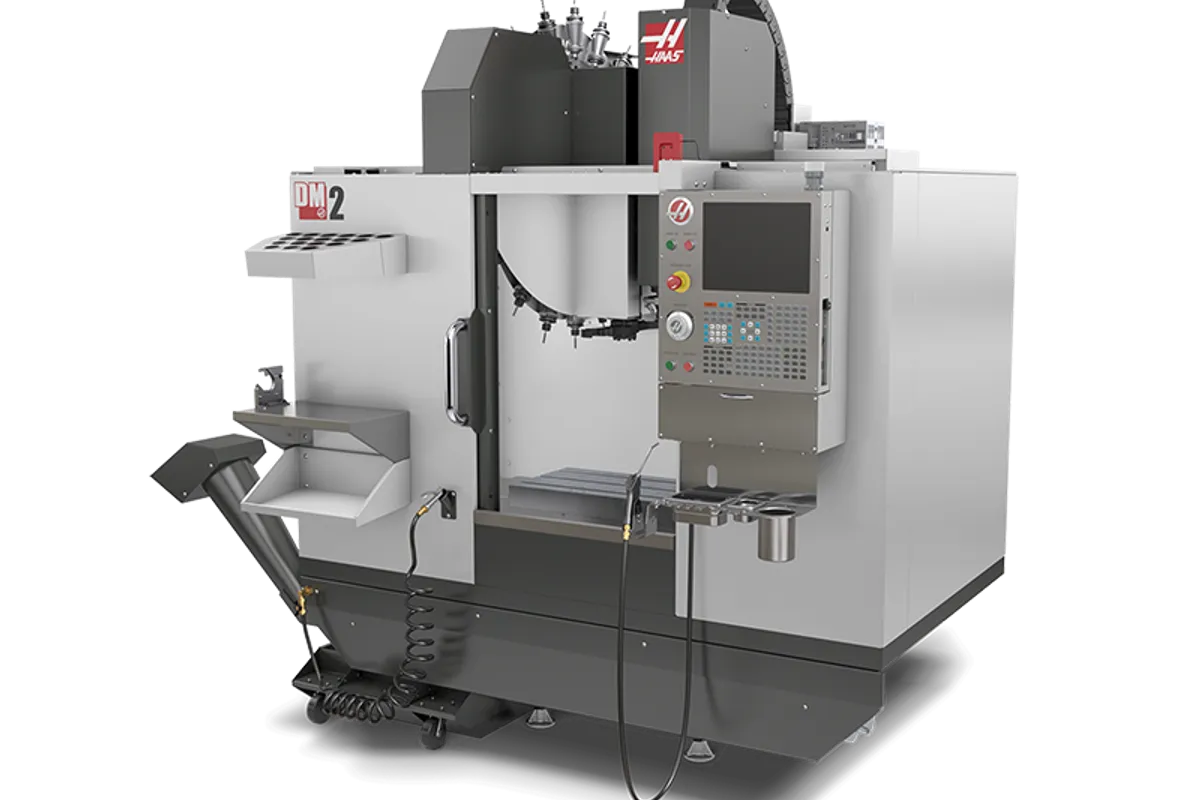

Haas DM-2

$81,000 - $105,000 Updated 2026-03-12

Key Specifications

X Travel

711 mm (28 in)

Y Travel

406 mm (16 in)

Z Travel

394 mm (15.5 in)

Max Spindle

10,000 RPM

Spindle Taper

CT or BT 40

Tool Capacity

18+1 SMTC

Overview

The Haas DM-2 is the most popular machine in Haas's drill/mill series, and for good reason. It packs a 40-taper spindle, 2,400 ipm rapids, and a fast side-mount tool changer into a compact package that costs less than most full-size VMCs. If you're running production aluminum with occasional steel work, the DM-2 hits the sweet spot.

Travel is 711 x 406 x 394 mm (28 x 16 x 15.5 in), which gives you real working room without eating floor space. The 864 x 381 mm (34 x 15 in) table holds 227 kg (500 lb) at half rapids with three T-slots on 125 mm centers. The CT/BT 40 taper inline direct-drive spindle runs at 10,000 RPM with 11.2 kW (15 hp) and 62 Nm (46 ft-lbf) of torque at 1,700 RPM.

The 18+1 SMTC tool changer is one of the DM-2's strongest selling points. At 1.75-second tool-to-tool and 2.0-second chip-to-chip, it's dramatically faster than the carousel changers on VF-series machines. Combined with 61.0 m/min (2,400 ipm) rapids on all axes, the DM-2 slashes non-cutting time to a fraction of what a standard VF-2 delivers.

Max cutting feedrate is 30.5 m/min (1,200 ipm), and rigid tapping runs to 5,000 RPM. Axis thrust is 11,343 N (2,550 lbf) on X and Y, with 18,683 N (4,200 lbf) on Z. The machine weighs 2,427 kg (5,350 lb) and runs on the Haas NGC control.

At a base price around $81K, the DM-2 undercuts the VF-2 while offering faster tool changes and rapids. It's become the go-to machine for shops running production aluminum who also need 40-taper flexibility. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	711 mm (28 in)
Y-Axis Travel	406 mm (16 in)
Z-Axis Travel	394 mm (15.5 in)
Spindle Nose To Table Max	546 mm (21.5 in)
Spindle Nose To Table Min	152 mm (6.0 in)
Max Spindle Speed	10,000 RPM
Spindle Taper	CT or BT 40
Spindle Motor Power	15.0 hp
Spindle Torque Max	62 Nm (46 ft-lbf) @ 1,700 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Air Cooled
Tool Capacity	18+1 SMTC
Tool To Tool	1.75 s
Chip To Chip	2.00 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Table Size	864 x 381 mm (34 x 15 in)
Table Load Max	227 kg (500 lb) at 50% rapids
T Slots	3 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	30.5 m/min (1,200 ipm)
Rapid Traverse X	61.0 m/min (2,400 ipm)
Rapid Traverse Y	61.0 m/min (2,400 ipm)
Rapid Traverse Z	61.0 m/min (2,400 ipm)
Max Tapping Speed	5,000 RPM
Machine Weight	2,427 kg (5,350 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	55 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 40 A
Electrical High	440 VAC 3-phase, 20 A
Travels	S.A.E
X Axis	28.00 in
Y Axis	16.00 in
Z Axis	15.50 in
Spindle Nose To Table	6.0 in
Spindle	S.A.E
Max Rating	15.0 hp
Max Speed	10000 rpm
Max Torque	46.0 ft-lbf @ 1700 rpm
Drive System	Inline Direct-Drive
Taper	CT or BT 40
Bearing Lubrication	Air / Oil Injection
Cooling	Air Cooled
Table	S.A.E
Length	34.0 in
Width	15.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	3
Max Weight On Table 100 Rapids	250 lb
Max Weight On Table 50 Rapids	500 lb
Feedrates	S.A.E
Max Cutting	1200 ipm
Rapids On X	2400 ipm
Rapids On Y	2400 ipm
Rapids On Z	2400 ipm
Axis Motors	S.A.E
Max Thrust X	2550 lbf
Max Thrust Y	2550 lbf
Max Thrust Z	4200 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	18+1
Max Tool Length	7.00 in
Tapping	S.A.E
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	40 A
Input Ac Voltage High	440 VAC
Full Load Amps High	20 A
Dimensions Shipping	S.A.E
Domestic Pallet	91.0 in x 100.0 in x 98.0 in
Export Pallet	91.0 in x 100.0 in x 98.0 in
Machine Weight	5350 lb
Haas Rotary	HAAS MACHINE
Ha2ts	DM-2
Ha5c	DM-2
Ha5c T	DM-2
Ha5c2	DM-2
Ha5c2 T	DM-2
Ha5c3	DM-2
Ha5c3 T	DM-2
Ha5c4	DM-2
Ha5c4 T	DM-2
Ha5cs	DM-2
Hqda5	DM-2
Hrc160	DM-2
Hrc210	DM-2
Hrt100	DM-2
Hrt160	DM-2
Hrt160 2	DM-2
Hrt160sp	DM-2
Hrt160ss	DM-2
Hrt200hs	DM-2
Hrt210	DM-2
Hrt210 2	DM-2
Hrt210ht	DM-2
Hrt210sp	DM-2
Hrt210ss	DM-2
Hrta5	DM-2
Hrta6	DM-2
Lt260	DM-2
T5c	DM-2
Th240	DM-2
Trt100	DM-2
Trt70	DM-2

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

40-taper spindle with 2,400 ipm rapids and 2.0-second chip-to-chip gives production speed with real tool rigidity
Base price under $81K undercuts the VF-2 while offering faster tool changes and rapids
18+1 SMTC is dramatically faster than carousel changers, saving seconds per tool change across a full shift
711 mm (28 in) X travel accommodates most job shop parts without the size and weight of a VF-2
Compact footprint makes multi-machine production cells practical in smaller shops
Rigid tapping to 5,000 RPM handles common thread sizes without a tapping head
Strong used market with late-model DM-2s available in the $40K-$55K range

Limitations

15 hp spindle limits aggressive roughing in steel and stainless compared to the VF-2's 30 hp
394 mm (15.5 in) Z travel is tight for tall parts and deep cavity work
227 kg (500 lb) table load restricts heavy fixtures and tombstone setups
Air-cooled spindle may see thermal growth during sustained high-speed runs
No single-phase power option; requires 3-phase electrical service

Best For

Production aluminum machining shops needing 40-taper rigidity at drill/tap-machine speeds Job shops running mixed materials that want speed without sacrificing tool holding capability Multi-machine cells where compact footprint and fast cycle times maximize throughput per square foot Shops comparing the DM-2 to the VF-2 and prioritizing speed over Z travel and spindle power Drill-and-tap intensive production with threads from M2 through M16 Contract manufacturers running medium-to-high volume parts under 711 mm (28 in)

Frequently Asked Questions

01 What's the difference between the Haas DM-2 and VF-2?

The DM-2 has faster rapids (2,400 vs 1,000 ipm), faster tool changes (2.0 vs 4.5 sec chip-to-chip), and a lower price. The VF-2 has more Z travel (508 vs 394 mm), double the spindle power (30 vs 15 hp), and higher table load (1,361 vs 227 kg). Choose the DM-2 for speed, the VF-2 for heavier work.

02 What does a new Haas DM-2 cost?

Base price is approximately $81,000. With through-spindle coolant, probing, and common options, most shops spend $90,000-$105,000. Used DM-2s with NGC control trade in the $40,000-$55,000 range.

03 Can the DM-2 cut steel?

Yes, the 40-taper spindle gives it real tool holding force for steel work. It handles mild steel, 4140, and 304 stainless for production drilling, tapping, and milling. For heavy steel roughing, the VF-2 with 30 hp is a better fit.

04 How does the DM-2 compare to the DT-2?

The DM-2 uses a 40-taper spindle versus the DT-2's BT30. Both share 2,400 ipm rapids and similar tool change speeds. The DM-2 accepts heavier, more rigid tooling and handles harder materials. The DT-2 has slightly faster acceleration due to lower moving mass.

05 Is the DM-2 good for a startup shop?

It's an excellent choice if your work is production-oriented aluminum and light steel. For a first machine in a general job shop, the VF-2 offers more versatility with its higher spindle power and table load. The DM-2 shines when you know your parts and need speed.
