MCM CLOCK 1200 EVO

Q: How much does the MCM CLOCK 1200 EVO cost?

The price estimate for the MCM CLOCK 1200 EVO is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/mcm-clock-1200-evo#price; the request is passed to MCM or an authorised dealer.

Specs verified 2026-10-05 · mcm-group.com Updated 2026-10-05

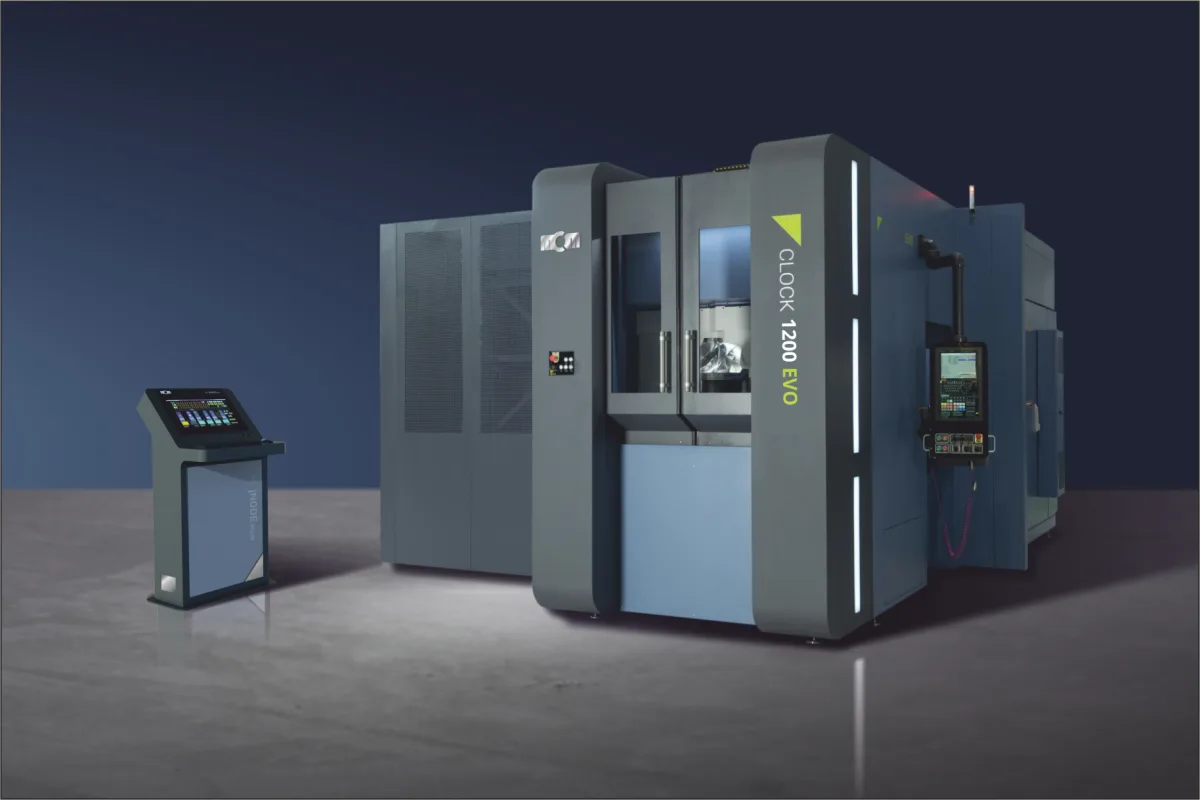

MCM CLOCK 1200 EVO horizontal machining center

Image: mcm-group.com, MCM

Key Specifications

Spindle Taper

HSK / ISO / CAPTO

Tool Capacity

up to 80 (500+)

axes configuration

4-Axes / 5-Axes / 5-Axes Multitasking

process technology

4-Axes, 5-Axes: Milling; 5-Axes Multitasking: Milling, Turning, Grinding

x axis travel

1,200 mm (47.2 in)

y axis travel

1,000 mm (39.4 in)

How much does the MCM CLOCK 1200 EVO cost?

Price estimate

Uncertain

We do not have a price for the MCM CLOCK 1200 EVO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The MCM CLOCK 1200 EVO is the largest horizontal machining center in the CLOCK EVO line. Its X-axis stroke is 1,200 mm (47.2 in), over 1,000 mm (39.4 in) of Y, and it works on 630 x 630 mm (24.8 x 24.8 in) or 630 x 800 mm (24.8 x 31.5 in) pallets.

What you are buying here is width. The CLOCK 1000 EVO lists the same Y travel, the same Z travels, the same pallets and the same 75 m/min (2,952.8 ipm) rapid feed, with 1,000 mm (39.4 in) of X. So the longer X axis serves parts or fixtures that overhang the pallet sideways, or tools that need room to clear a wide tombstone. If nothing on your part list is wider than the smaller machine can reach, the table gives no other reason to step up.

Z is 1,100 mm (43.3 in) on the 4-Axes machine and 1,000 mm (39.4 in) on the 5-Axes and 5-Axes Multitasking versions. Those two carry a tilting table with a 145 degree range (+25/-120). The Multitasking version works on a round Ø 800 mm (Ø 31.5 in) pallet, is listed for milling, turning and grinding, and has a table speed row of 100 / 800 min-1 where the milling versions show 100 min-1.

HSK, ISO and CAPTO tapers are offered. The magazine holds "up to 80 (500+)" tools as MCM prints it. Like the rest of the line it comes as a Single-Pallet, Twin-Pallet or Multi-Pallet machine or inside an FMS.

Full Specifications

Parameter	Value
Axes Configuration	4-Axes / 5-Axes / 5-Axes Multitasking
Process Technology	4-Axes, 5-Axes: Milling; 5-Axes Multitasking: Milling, Turning, Grinding
X Axis Travel	1,200 mm (47.2 in)
Y Axis Travel	1,000 mm (39.4 in)
Z Axis Travel	4-Axes: 1,100 mm (43.3 in); 5-Axes, 5-Axes Multitasking: 1,000 mm (39.4 in)
Rapid Traverse Xyz	75 m/min (2,952.8 ipm)
Pallet Size	4-Axes, 5-Axes: 630 x 630 mm (24.8 x 24.8 in); 5-Axes Multitasking: Ø 800 mm (Ø 31.5 in)
Pallet Size Option 2	4-Axes, 5-Axes: 630 x 800 mm (24.8 x 31.5 in)
B Axis Max Rotation Speed	4-Axes, 5-Axes: 100 min-1; 5-Axes Multitasking: 100 / 800 min-1
Fifth Axis Type	5-Axes, 5-Axes Multitasking: Tilting Table
Tilting Angle	5-Axes, 5-Axes Multitasking: 145 (+25/-120) degrees
Spindle Taper	HSK / ISO / CAPTO
Tool Capacity	up to 80 (500+)
Available Configurations	Single-Pallet / Twin-Pallet / Multi-Pallet / FMS

Specifications sourced from mcm-group.com — verified 2026-10-05

Strengths & Limitations

Strengths

1,200 mm (47.2 in) of X travel, the longest in the CLOCK EVO line
Keeps the 75 m/min (2,952.8 ipm) rapid feed of the smaller CLOCK EVO sizes
4-Axes version offers 1,100 mm (43.3 in) of Z travel
5-axis versions use a tilting table with 145 degrees of travel (+25/-120)
Multitasking version turns and grinds on a Ø 800 mm (Ø 31.5 in) pallet

Limitations

Y travel stays at 1,000 mm (39.4 in) and the pallets stay at 630 x 800 mm (24.8 x 31.5 in) at most, so the extra X does not come with a taller or larger work zone
5-axis versions lose Z travel against the 4-Axes machine: 1,000 mm (39.4 in) instead of 1,100 mm (43.3 in)
No pallet load, spindle power or machine weight is published in the table
The meaning of the two Multitasking table speeds, 100 / 800 min-1, is not explained on the page

Best For

Wide parts and fixtures that need 1,200 mm (47.2 in) of X on a 630 mm pallet Tombstone work with long tools that need side clearance 5-axis milling on a tilting table within 1,000 mm (39.4 in) of Y and Z Pallet-pool and FMS production

Frequently Asked Questions

01 What is the difference between the CLOCK 1200 EVO and the CLOCK 1000 EVO?

X travel. The CLOCK 1000 EVO has 1,000 mm (39.4 in) of X; this machine has 1,200 mm (47.2 in). Y travel, the Z travels of each configuration, pallet sizes, tilting angle, table speeds and the 75 m/min (2,952.8 ipm) rapid feed are printed with the same values on both pages.

02 What pallets does the CLOCK 1200 EVO use?

The 4-Axes and 5-Axes versions use a 630 x 630 mm (24.8 x 24.8 in) pallet, with 630 x 800 mm (24.8 x 31.5 in) as the second option. The 5-Axes Multitasking version uses a round Ø 800 mm (Ø 31.5 in) pallet. Pallet load is not stated.

03 Is the CLOCK 1200 EVO a 4-axis or a 5-axis machine?

Either. MCM lists three axis configurations: 4-Axes for milling, 5-Axes for milling with a tilting table, and 5-Axes Multitasking for milling, turning and grinding. The tilting table has a range of 145 degrees, +25/-120, and choosing it reduces Z travel from 1,100 mm (43.3 in) to 1,000 mm (39.4 in).

04 What spindle does the CLOCK 1200 EVO have?

MCM's table names the tool tapers, HSK, ISO and CAPTO, without giving power or torque for any of them. Treat the spindle as something to specify with MCM: state the taper, the material and the tool sizes, and ask for the power and torque curves of the unit they propose.
