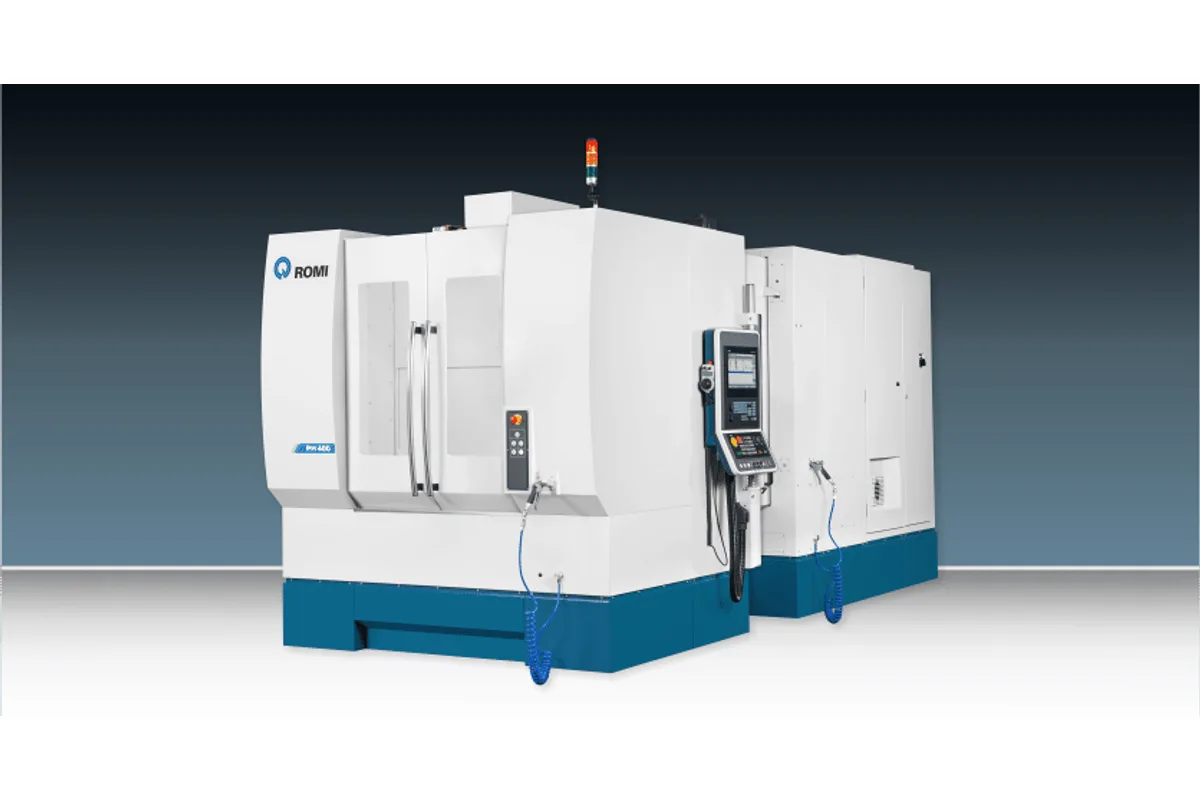

ROMI PH 400
Image: romi.com, Romi
Key Specifications
Spindle Taper
Tool Capacity
Spindle Power
rapid traverse xyz
cutting feed rate
x axis travel
How much does the ROMI PH 400 cost?
Price estimate
We do not have a price for the ROMI PH 400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The ROMI PH 400 is a twin-pallet horizontal machining center with a cubic working space: 630 mm (24.8 in) of travel in each of X, Y and Z over pallets of 400 x 500 mm (15.7 x 19.7 in). It is the smaller of Romi's two horizontals and the one built for speed of movement.
Rapid traverse is 60 m/min (2,362 in/min) on all three axes, and cutting feed can be programmed up to 30 m/min (1,181 in/min). In the short-cycle work this size of machine does, many holes and faces on a compact casting, time between cuts counts as much as time in the cut. Linear scales on X, Y and Z are standard, which keeps positioning independent of ball screw heating over a long shift.
The spindle takes ISO 40 tooling with BT 40 or BBT 40 shanks and is driven by a 30 hp / 22 kW motor. Forty tools sit in the magazine, each up to 75 mm (2.95 in) in diameter, 400 mm (15.7 in) long and 8 kg (17.6 lbs).
Two pallets are exchanged hydraulically in 12 s, and the operator loads at the front while the other pallet is in the cut. The standard table indexes in steps of 1 degree and carries 600 kg (1,323 lbs). An NC table is optional for contouring in the fourth axis, at a lower load of 500 kg (1,100 lbs). The machine weighs about 14,600 kg (32,187 lbs), needs 55 kVA and runs on a Siemens Sinumerik 828D.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Taper | ISO 40 |
| Rapid Traverse Xyz | 60 m/min (2,362 in/min) |
| Cutting Feed Rate | 30 m/min (1,181 in/min) |
| X Axis Travel | 630 mm (24.8 in) |
| Z Axis Travel | 630 mm (24.8 in) |
| Y Axis Travel | 630 mm (24.8 in) |
| Distance Spindle Nose to Table Center | 100 to 730 mm (3.94 to 28.7 in) |
| Table Type | Indexing table; NC table optional |
| Pallet Size | 400 x 500 mm (15.7 x 19.7 in) |
| Max Pallet Load | 600 kg (1,323 lbs) with the indexing table; 500 kg (1,100 lbs) with the NC table |
| Table Indexing | 1 degree (indexing table) |
| Tool Capacity | 40 |
| Max Tool Diameter (full magazine) | 75 mm (2.95 in) |
| Max Tool Diameter (adjacent pockets empty) | 130 mm (5.1 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Tool Shank | BT 40 / BBT 40 type |
| Max Tool Weight | 8 kg (17.6 lbs) |
| Number of Pallets | 2 |
| Pallet Change Time | 12 s (no load) |
| Spindle Motor Power | 30 hp / 22 kW (S6 - 60% - 10 min.) |
| Power Requirement | 55 kVA |
| Machine Height | 3,065 mm (120 in) |
| Floor Space | 4,535 x 6,070 mm (178 x 239 in) |
| Machine Weight | 14,600 kg (32,187 lbs) approx. |
| CNC Control | Siemens Sinumerik 828D |
Specifications sourced from romi.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Rapid traverse of 60 m/min (2,362 in/min) on X, Y and Z
- Two pallets of 400 x 500 mm (15.7 x 19.7 in), changed in 12 s
- Linear scales on X, Y and Z axes as standard
- 40-tool magazine for BT 40 / BBT 40 shanks, tools up to 400 mm (15.7 in) long
- Programmable cutting feed up to 30 m/min (1,181 in/min)
Limitations
- Pallet load is 600 kg (1,323 lbs), and 500 kg (1,100 lbs) with the optional NC table
- The standard table only indexes in 1 degree steps; continuous rotation needs the NC option
- Tool weight is limited to 8 kg (17.6 lbs)
- One magazine size of 40 tools is listed, against 60 or 120 on the PH 630
Best For
Frequently Asked Questions
01
X, Y and Z travels are each 630 mm (24.8 in). The distance from spindle nose to table center runs from 100 to 730 mm (3.94 to 28.7 in). Pallet surface is 400 x 500 mm (15.7 x 19.7 in).
02
With the standard indexing table the maximum weight on the pallet is 600 kg (1,323 lbs), uniformly distributed. With the optional NC table it is 500 kg (1,100 lbs). The machine has 2 pallets and changes them in 12 s without load.
03
ISO 40 with BT 40 / BBT 40 shanks. The magazine holds 40 tools. Maximum tool diameter is 75 mm (2.95 in), or 130 mm (5.1 in) when adjacent stations are empty; maximum length is 400 mm (15.7 in) and maximum weight 8 kg (17.6 lbs).
04
The PH 400 is the lighter, faster machine: ISO 40, 60 m/min (2,362 in/min) rapids and a 600 kg (1,323 lbs) pallet. The PH 630 uses ISO 50 tooling, moves at 50 m/min (1,969 in/min) and carries 1,200 kg (2,645 lbs) on a 630 x 630 mm (24.8 x 24.8 in) pallet.
