Johnford SV-33

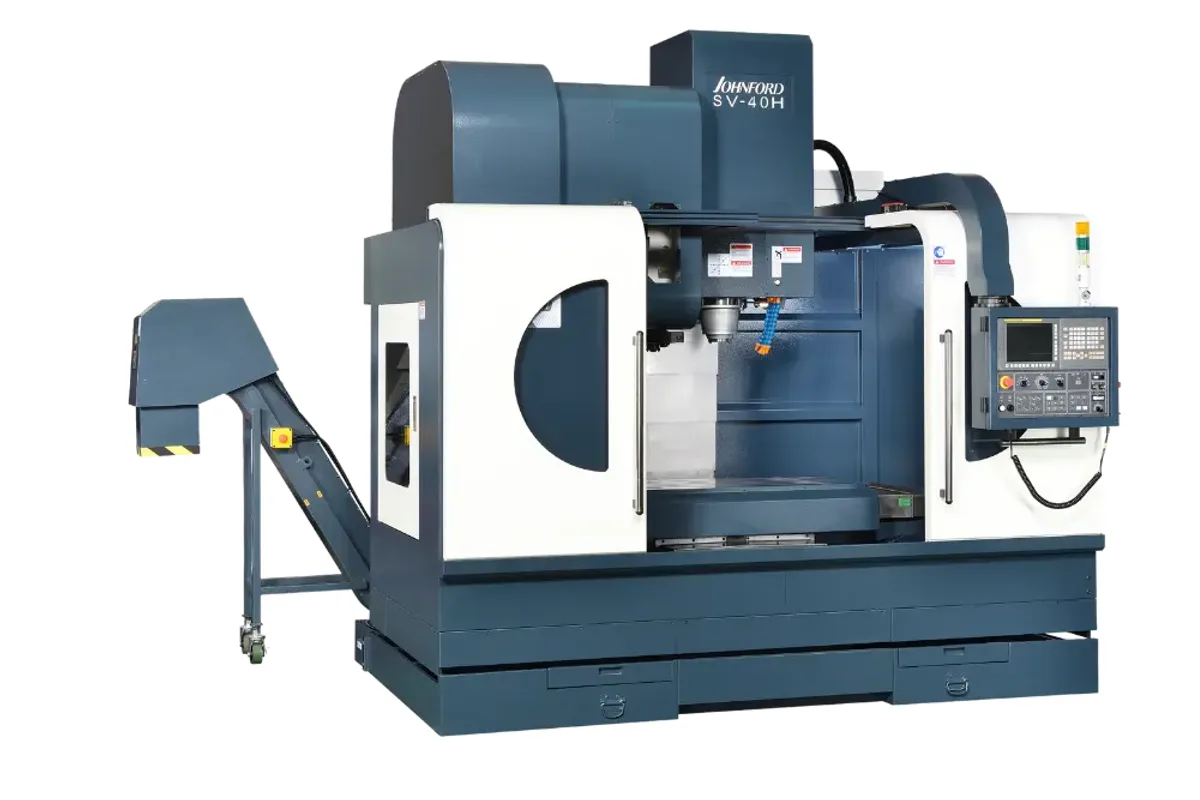

Image: johnford.com.tw, Johnford
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Johnford SV-33 cost?
Price estimate
We do not have a price for the Johnford SV-33 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford SV-33 opens the SV series: a vertical machining center with 850 x 610 x 610 mm (33.5 x 24 x 24 in) travels, a 1,000 x 600 mm (39.4 x 23.6 in) table and a standard spindle of 60~10,000 rpm in BT or CAT 40 taper. It is close in X travel to the VMC-850, but it is a different class of machine once the other rows are compared.
Start with the table. The SV-33 carries 1,200 kg (2,640 lb), three times the 400 kg (880 lb) of the VMC-850, and it has 610 mm (24 in) of Y where the VMC-850 has 500 mm (19.7 in). The spindle is 640 mm (25.2 in) from the column. A square Y and Z of 610 mm each makes the machine useful for plates, mold inserts and fixture cubes, not only for long narrow work.
The standard drive is a 9 / 11 kW (12.1 / 14.8 hp) P motor, quoted as continuous and 30 min ratings. Johnford then lists three other spindles: a 12,000 rpm cartridge spindle with a 7.5 / 11 kW (10.1 / 14.8 hp) Hi-Lo gear drive, a 15,000 rpm direct drive spindle in BBT-40, and a built-in HSK A63 spindle at 15,000, 18,000 or 20,000 rpm with 17 / 20 kW (22.8 / 26.8 hp). The gear option is the one for torque; the built-in spindle is the one for small tools.
A 24-tool armless changer, rigid tapping, an oil cooler for the spindle and gearbox, and four screw type chip conveyors with a trolley are standard. The machine weighs 6,500 kg (14,300 lb) and measures 2,680 x 3,420 x 2,888 mm (105.5 x 134.6 x 113.7 in), so it is deeper than it is long.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,000 x 600 mm (39.4 x 23.6 in) |
| X Axis Travel | 850 mm (33.5 in) |
| Y Axis Travel | 610 mm (24 in) |
| Z Axis Travel | 610 mm (24 in) |
| Distance Spindle Nose to Table | 100~710 mm (3.94~28 in) |
| Distance Spindle to Column | 640 mm (25.2 in) |
| Max Spindle Speed | 60~10,000 rpm (BT/CAT-40) |
| Spindle Speed Optional | Cartridge 12,000 rpm (BT/CAT/BBT-40); Direct drive 15,000 rpm (BBT-40); Built-in 15,000/18,000/20,000 rpm (HSK A63) |
| Spindle Motor Power | 9 / 11 kW (12.1 / 14.8 hp) P motor (cont./30 min) |
| Spindle Power Optional | 7.5 / 11 kW (10.1 / 14.8 hp) Hi-Lo Gear (12,000 rpm); 7.5 / 11 kW (10.1 / 14.8 hp) (15,000 rpm, BBT-40); 17 / 20 kW (22.8 / 26.8 hp) (15,000/18,000/20,000 rpm) (cont./30 min) |
| Rapid Traverse Xyz | 30 / 30 / 20 m/min (1,181 / 1,181 / 787 ipm) |
| Cutting Feed Rate | 1~12,000 mm/min (0.04~472 ipm) |
| Tool Selection | Bi-direction random type, Shortest path |
| Tool Capacity | Armless 24; Arm type 24/32 (Opt.) |
| Max Tool Diameter (full magazine) | 75 mm (3 in) |
| Max Tool Diameter Without Adjacent Tools | 100 mm (4 in) |
| Max Tool Length | 320 mm (12.6 in) |
| Max Tool Weight | 10 kg (22 lb) |
| Max Table Load | 1,200 kg (2,640 lb) |
| Machine Weight | 6,500 kg (14,300 lb) |
| Machine Dimensions | 2,680 x 3,420 x 2,888 mm (105.5 x 134.6 x 113.7 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,200 kg (2,640 lb) table load on a 1,000 x 600 mm (39.4 x 23.6 in) table
- 10,000 rpm standard spindle with a 9 / 11 kW (12.1 / 14.8 hp) P motor
- Four spindle choices from the factory, up to a 20,000 rpm built-in HSK A63 unit
- Rigid tapping and an oil cooler for spindle and gearbox are standard accessories
- Y travel of 610 mm (24 in) equals the Z travel
Limitations
- The standard changer is armless with 24 tools; arm type changers with 24 or 32 tools are options
- Tools are limited to 75 mm (3 in) diameter with neighbours in place and 10 kg (22 lb)
- Z rapid is 20 m/min (787 ipm) against 30 m/min on X and Y
- High pressure coolant through the spindle at 20 bar is optional
Best For
Frequently Asked Questions
01
X travel is 850 mm (33.5 in), Y is 610 mm (24 in) and Z is 610 mm (24 in). The table working surface is 1,000 x 600 mm (39.4 x 23.6 in) with a load capacity of 1,200 kg (2,640 lb).
02
60~10,000 rpm in BT/CAT-40, driven by a 9 / 11 kW (12.1 / 14.8 hp) P motor. The two power figures are the continuous and 30 min ratings.
03
The SV-33H is the 50-taper version of the same frame. The SV-33H spindle is 60~6,000 rpm with an 11 / 15 kW (14.8 / 20.1 hp) Hi-Lo gear drive, its armless changer holds 20 tools, and the SV-33H weighs 7,000 kg (15,400 lb). Travels and table are identical.
04
Both are on the SV series option list: a 4th-axis rotary table with tailstock, and an automatic pallet changer, for which Johnford quotes pallets up to 1,600 x 700 mm across the series. A CNC A-axis tilting rotary head with 0.001° resolution is also listed.
