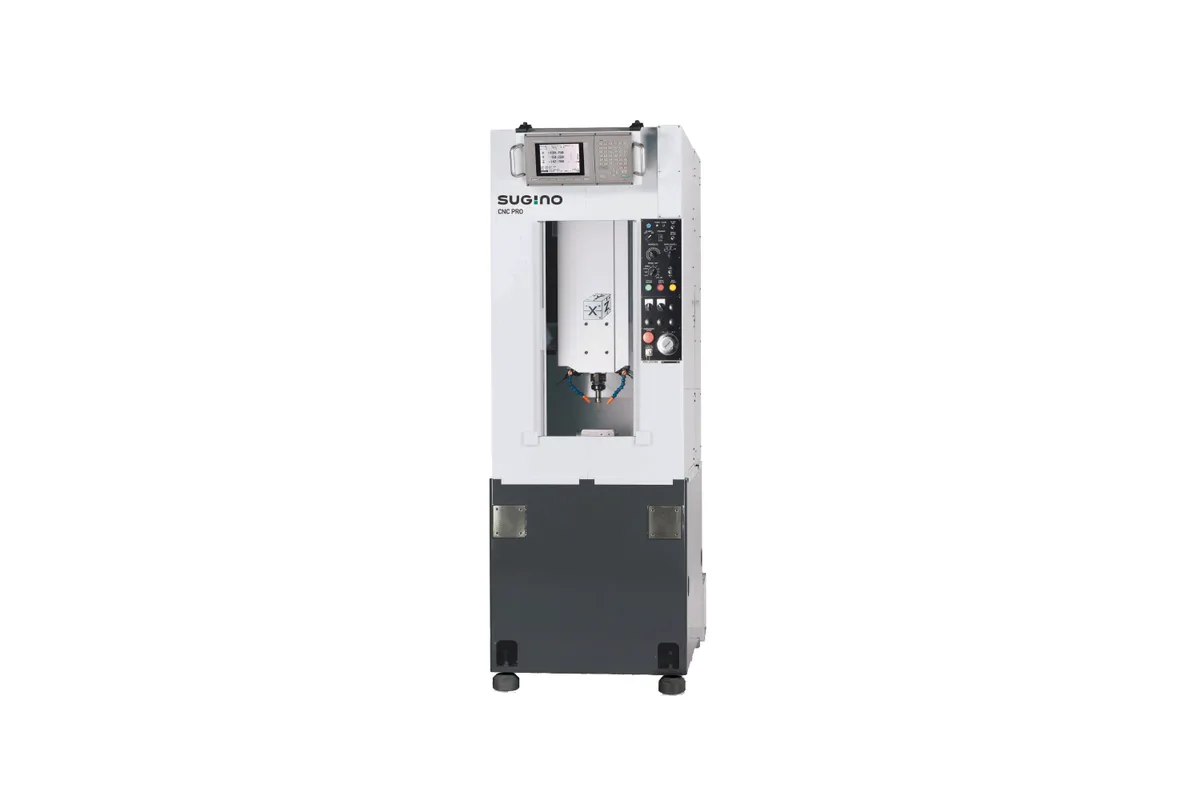

Sugino CNCPRO PRO-407 / PRO-607
Image: sugino.com, Sugino
Key Specifications
Max Spindle
Table Size
Spindle Power
Accuracy
Repeatability
x axis travel
How much does the Sugino CNCPRO PRO-407 / PRO-607 cost?
Price estimate
We do not have a price for the Sugino CNCPRO PRO-407 / PRO-607 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Sugino CNCPRO PRO-407 / PRO-607 is the standard-stroke version of Sugino's #25 turret drilling and tapping center, a machine only 750 mm wide. The first model number is the 4-spindle turret head and the second the 6-spindle head; everything else in the maker's table is shared. Travels are 240 mm (9.4 in) in X and 200 mm (7.9 in) in Y and Z over a 350 × 250 mm table.
Sugino says it kept only the functions needed for drilling and tapping, and the figures bear that out. The spindle motor is rated 0.75 kW for 10 min. and 0.4 kW continuous. Stated capacity is a 12 mm drill and an M10 tap in aluminum, 10 mm and M8 in cast iron, and 8 mm in steel with M6 in carbon steel. The chuck takes φ0.5 to φ13 mm, and tools are limited to 1.2 kg and 160 mm in length.
Tool changes are the strong point. The turret head indexes in 0.4 sec by cam, and Sugino gives a tool-to-tool timing of 0.4 seconds and a chip-to-chip timing of 0.9 seconds, which it attributes to a taper clutch joint between the turret head and the spindle. Standard spindle speed is 100 to 8,000 rpm, with a high speed version to 12,000 rpm. Rapids are 30 m/min (1,181 ipm).
Accuracy is in keeping with the purpose: 0.010 mm positioning in full travel and ±0.005 mm repeatability. The machine weighs 1,000 kg (2,205 lb), draws 3 kVA at AC 200V and, according to Sugino, needs no hydraulic power. The table carries 150 kg (331 lb). Where the part is longer than the X travel allows, the CNCPRO PRO-407L / PRO-607L has 560 mm (22.0 in) of X on a 600 × 250 mm table.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 240 mm (9.4 in) |
| Y Axis Travel | 200 mm (7.9 in) |
| Z Axis Travel | 200 mm (7.9 in) |
| Table Size | 350 × 250 mm (13.8 × 9.8 in) |
| Distance Spindle Nose to Table | 230-430 mm (9.1-16.9 in) |
| Max Table Load | 150 kg (331 lb) |
| Turret Spindles | 4 (PRO-407, 4-spindle type) or 6 (PRO-607, 6-spindle type) |
| Max Spindle Speed | 100-8,000 min-1 (standard); 100-12,000 min-1 (high speed) |
| Spindle Motor Power | 0.75 kW (1.0 hp) 10 min. / 0.4 kW (0.5 hp) continuous |
| Rapid Traverse Xyz | 30 m/min (1,181 ipm) |
| Cutting Feed Rate | 10-12,000 mm/min (0.4-472 ipm) |
| Min Programmable Unit | 0.001 mm |
| Positioning Accuracy | 0.010 mm (in full travel), 0.015 mm (long stroke) |
| Repeatability | ±0.005 mm |
| Turret Index Time | 0.4 sec |
| Tool Shank | BT25 Front clamp type |
| Max Tool Weight | 1.2 kg (2.6 lb) |
| Max Tool Length | 160 mm (6.3 in) |
| Chuck Capacity | φ0.5-φ13 mm (φ0.02-φ0.51 in) |
| Index Type | All cam index |
| Tool Selection | Random, shortest approach |
| Power Requirement | 3 kVA, AC 200V±10%, 50/60 Hz |
| Drilling Capacity | Aluminum 12 mm diameter, cast iron 10 mm diameter, steel 8 mm diameter |
| Tapping Capacity | Aluminum M10, cast iron M8, carbon steel M6 |
| Machine Dimensions | 750 × 1,635 × 2,100 mm (29.5 × 64.4 × 82.7 in) (W × L × H) |
| Machine Weight | 1,000 kg (2,205 lb) |
Specifications sourced from sugino.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Turret index time of 0.4 sec; Sugino gives 0.9 seconds chip-to-chip
- Footprint of 750 mm by 1,635 mm, and a weight of 1,000 kg (2,205 lb)
- Runs on a 3 kVA supply and needs no hydraulic power, as stated by the maker
- Choice of a 4-spindle or 6-spindle turret head on the same machine
- High speed spindle version reaches 12,000 rpm against 8,000 rpm as standard
- Removable operating panel can sit on top of the machine or close at hand
Limitations
- Spindle motor is 0.75 kW for 10 min. and 0.4 kW continuous, so milling is not what it is for
- At most 6 tools, and only 4 on the 4-spindle type
- Steel capacity is given as an 8 mm drill, and carbon steel tapping as M6
- X travel is 240 mm (9.4 in); the long stroke version is needed for longer parts
- Repeatability is ±0.005 mm and positioning 0.010 mm in full travel
Best For
Frequently Asked Questions
01
The number of spindles on the turret head. The PRO-407 is the 4-spindle type and the PRO-607 the 6-spindle type. Sugino prints them in one column for every other row: the same travels, table, spindle speeds, accuracy, dimensions and weight.
02
X is 240 mm (9.4 in), Y is 200 mm (7.9 in) and Z is 200 mm (7.9 in). The table working area is 350 × 250 mm (13.8 × 9.8 in), and the distance from table surface to spindle nose is 230 to 430 mm. The allowable load shown for this model is 150 kg (331 lb).
03
The turret head indexes in 0.4 sec with an all cam index and random, shortest approach selection. Sugino states a tool-to-tool timing of 0.4 seconds and a chip-to-chip timing of 0.9 seconds, using a taper clutch joint between the turret head and the spindle.
04
Sugino gives drilling capacity as 12 mm diameter in aluminum, 10 mm in cast iron and 8 mm in steel. Tapping capacity is M10 in aluminum, M8 in cast iron and M6 in carbon steel. The chuck capacity is φ0.5 to φ13 mm.
05
The power supply row reads 3 kVA at AC 200V. Sugino states that no hydraulic power is required to drive the machine. The machine itself measures 750 × 1,635 × 2,100 mm (29.5 × 64.4 × 82.7 in) and weighs 1,000 kg (2,205 lb).
