Yamazaki Mazak Vertical Machining Centers

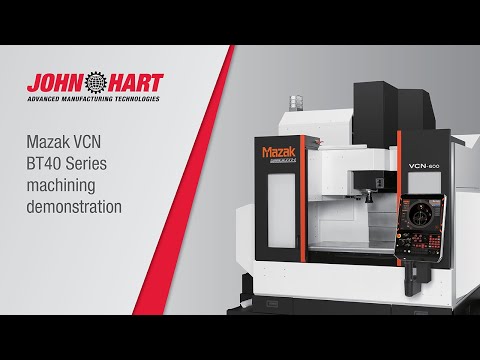

Mazak VCN-600

$140,000 - $230,000 Updated 2026-03-16

Key Specifications

X Travel

1,050 mm (41.3 in)

Y Travel

600 mm (23.6 in)

Z Travel

510 mm (20.1 in)

Spindle Taper

CAT 40 (BT 40 optional)

Tool Capacity

30 tools (48 optional)

Table Size

1,200 x 600 mm (47.2 x 23.6 in)

Overview

The Mazak VCN-600 is a mid-size production vertical machining center designed for high-throughput manufacturing environments where rigidity, reliability, and fast cycle times matter most. The VCN (Vertical Center Nexus) series represents Mazak's production-focused VMC line, built for shops running multiple shifts on dedicated or semi-dedicated part families rather than pure job shop work.

The spindle delivers 22 kW (30 hp) at 12,000 RPM through a CAT 40 taper (BT 40 available), with a high-speed 15,000 RPM option for aluminum-intensive applications. The spindle is a direct-drive design for reduced vibration and better surface finish compared to belt-driven alternatives. Through-spindle coolant at 20 bar standard (70 bar optional) supports aggressive drilling and chip evacuation in deep pockets.

Axis travels cover 1,050 mm (41.3 in) on X, 600 mm (23.6 in) on Y, and 510 mm (20.1 in) on Z. The 1,200 x 600 mm (47.2 x 23.6 in) table supports workpieces up to 1,200 kg (2,646 lb). Linear roller guides on all axes deliver rapids of 42 m/min on X and Y and 36 m/min on Z, keeping non-cutting time short for production efficiency. The rigid casting design with wide-span column provides stability for heavy cutting.

The standard 30-tool ATC features a servo-driven arm-type tool changer with 1.6-second chip-to-chip time. Expansion to 48 tools is available. Current production ships with the MAZATROL SmoothG CNC. The machine weighs approximately 7,800 kg (17,196 lb) with a footprint of roughly 3.2 x 2.6 meters. Competitors include the Haas VF-5, Okuma Genos M560-V, DMG Mori CMX 800 V, and Doosan DNM 650. New machines price between $140,000 and $230,000, with used units from 2014-2021 trading between $60,000 and $160,000.

Full Specifications

Parameter	Value
X-Axis Travel	1,050 mm (41.3 in)
Y-Axis Travel	600 mm (23.6 in)
Z-Axis Travel	510 mm (20.1 in)
Table Size	1,200 x 600 mm (47.2 x 23.6 in)
Max Table Load	1,200 kg (2,646 lb)
Spindle Speed	12,000 RPM (15,000 RPM optional)
Spindle Motor Power	22 kW (30 hp)
Spindle Taper	CAT 40 (BT 40 optional)
Spindle Type	Direct-drive
Tool Capacity	30 tools (48 optional)
Tool Change Time	1.6 seconds (chip-to-chip)
Rapid Traverse Xy	42 m/min (1,654 ipm)
Rapid Traverse Z	36 m/min (1,417 ipm)
Through Spindle Coolant	20 bar (70 bar optional)
Guideway Type	Linear roller guides
Machine Weight	7,800 kg (17,196 lb)
CNC Control	MAZATROL SmoothG CNC

Specifications sourced from mazak.com — verified 2026-03-28

Strengths & Limitations

Strengths

Direct-drive spindle with 22 kW delivers smooth, vibration-free cutting at 12,000 RPM for excellent surface finish on production parts
Linear roller guides with 42 m/min rapids and 1.6-second tool changes minimize non-cutting time for maximum production throughput
1,050 mm X-travel and 1,200 x 600 mm table handle substantial parts while maintaining a reasonable production floor footprint
Rigid wide-span column casting provides stability for heavy cutting in steel and cast iron despite the linear guide design
MAZATROL SmoothG control with conversational programming speeds up setup for new parts while supporting full G-code for complex production programs
Competitive pricing against the Haas VF-5 and Okuma Genos M560-V while delivering Mazak's build quality and service support

Limitations

Linear guide construction, while fast, does not match box-way rigidity for the heaviest interrupted cutting in hardened steel and cast iron
CAT 40 taper limits face mill size and boring bar rigidity compared to CAT 50 machines — shops doing heavy roughing with large tools should consider the larger taper
30-tool standard magazine may be limiting for shops running complex multi-feature parts — the 48-tool upgrade adds cost but is recommended for most production applications
Production-focused design means fewer job shop conveniences like easy workholding access and chip management for high-mix, low-volume work
7,800 kg weight still requires proper foundation preparation and overhead crane access for installation and spindle maintenance

Best For

Production shops running dedicated or semi-dedicated part families across multiple shifts where cycle time and throughput are primary metrics Automotive tier-1 and tier-2 suppliers machining aluminum and cast iron housings, brackets, and structural components in medium-to-high volumes Aerospace subcontractors running aluminum structural parts where the 12,000 RPM direct-drive spindle and fast rapids maximize material removal rates Mold and die component shops machining electrode blanks, ejector plates, and mold inserts where surface finish quality from the direct-drive spindle matters General manufacturing operations looking for a reliable, fast mid-size VMC that balances capability, speed, and cost for diverse production work

Frequently Asked Questions

01 What does a new Mazak VCN-600 cost?

Base VCN-600 configurations start around $140,000. Production-ready setups with high-speed spindle, high-pressure coolant, 48-tool magazine, probing system, and chip conveyor run $185,000-$230,000. Used VCN-600 machines from 2014-2021 trade between $60,000 and $160,000 depending on hours, spindle condition, and options.

02 How does the VCN-600 compare to the VCE-700?

The VCN-600 is production-focused with linear roller guides, faster rapids (42 vs 36 m/min), faster tool changes, and a direct-drive spindle optimized for throughput. The VCE-700 has box-way construction with better rigidity for heavy cutting in steel and cast iron, plus a larger work envelope (50-inch X-travel vs 41-inch). Choose the VCN-600 for production speed; choose the VCE-700 for heavy cutting and larger parts.

03 Is the VCN-600 suitable for mold work?

Yes, for mold components and medium-size mold bases. The direct-drive spindle provides excellent surface finish, and the rigid casting design handles the long finishing passes common in mold work. For large mold bases requiring heavy roughing in hardened steel, consider the box-way VCE series instead. The VCN-600 is particularly effective for electrode machining, small mold inserts, and production mold components.

04 Can I automate the VCN-600 for lights-out production?

Yes. The VCN-600 supports pallet changers, robotic loading, and Mazak's automation systems. The SmoothG control includes tool life management, broken tool detection, and workpiece coordinate management for unattended operation. A common automation setup is a two-pallet changer that allows loading the next part while the current part machines, practically eliminating setup time from the production cycle.
