Johnford DMC-2100SH

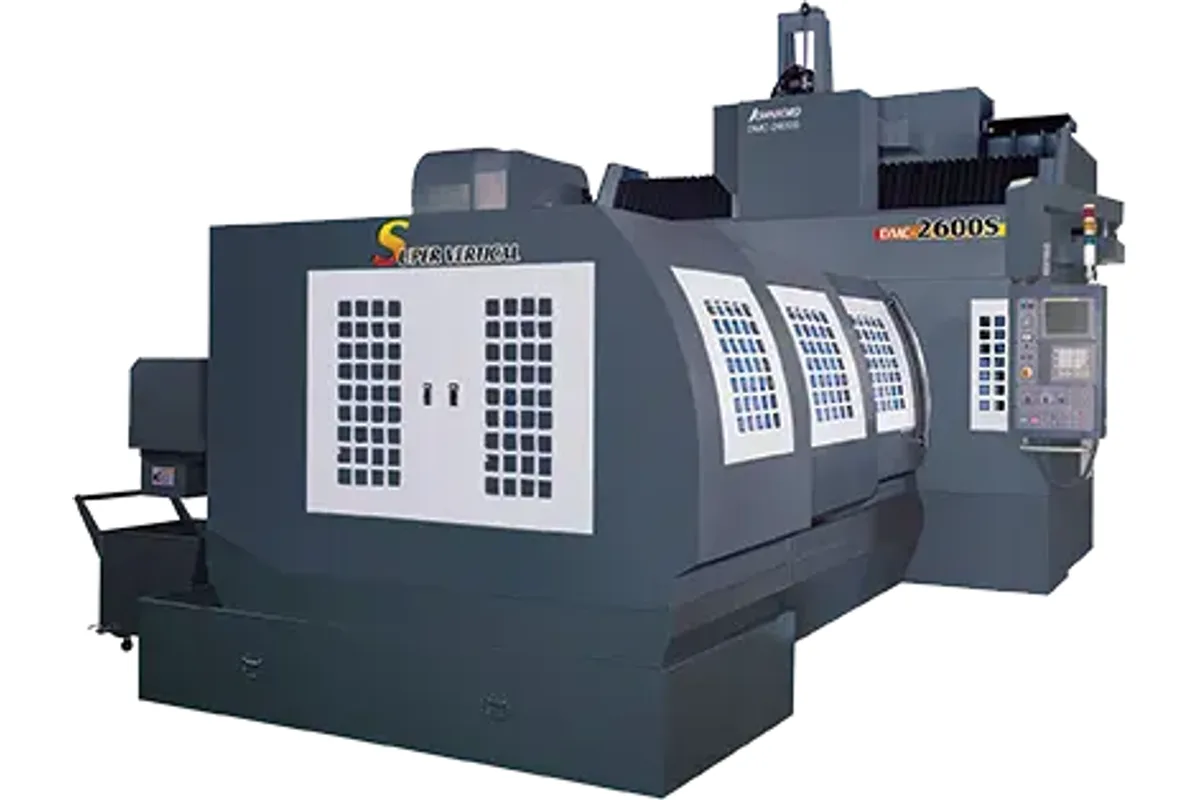

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
distance between columns
x axis travel
How much does the Johnford DMC-2100SH cost?
Price estimate
We do not have a price for the Johnford DMC-2100SH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A No.50 spindle over a table that is nearly as wide as it is long: that is the Johnford DMC-2100SH. X travel is 2,100 mm (82.7 in), Y is 1,778 mm (70 in) and Z is 800 mm (31.5 in). The spindle takes BT-50 / CAT-50 tooling, runs on a 90 mm (3.5 in) bearing and is driven by a 22 / 26 kW (29.5 / 34.9 hp) motor through a Hi Lo Gear.
That motor is the first thing to notice. Johnford fits 15 / 18.5 kW (20.1 / 24.8 hp) to the DMC-2100H on the narrower frame, so the S frame brings a stronger geared drive along with the extra width. Standard speed is 6,000 rpm. For lighter, faster work there are two built-in spindles, 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp), at 10,000 rpm.
Heavy tooling is the reason to pick the SH over the 40-taper DMC-2100S. The changer accepts 15 kg (33 lb) tools up to 400 mm (15.7 in) long. Diameter is Ø125 mm (Ø5 in) with every pocket full and Ø200 mm (Ø7.8 in) when the neighbours are left empty, enough for large face mills and boring bars.
The table is 2,200 x 1,500 mm (86.6 x 59 in) and carries 10,000 kg (22,000 lb). Footprint is 6,633 x 4,600 x 3,883 mm (261.1 x 181.1 x 152.9 in). Coolant through the spindle is not standard: the base machine has a 2 bar external supply with spindle nozzles, and the 20 bar through-spindle system is an option.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 1,796 mm (70.7 in) |
| Table Size | 2,200 x 1,500 mm (86.6 x 59 in) |
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 1,778 mm (70 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Spindle Taper | BT-50 / CAT-50; HSK A100(Opt.) |
| Spindle Bearing Diameter | 90 mm (3.5 in) |
| Spindle Speed | 6,000; 10,000 rpm |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear; 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) Built-in |
| Rapid Traverse Xyz | 12 / 12 / 12 m/min (472 / 472 / 472 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Max Tool Diameter Adjacent Pockets | Ø125 mm (Ø5 in) |
| Tool Capacity | Arm type 24 ; 32 / 40 (Opt.) |
| Max Tool Diameter (full magazine) | Ø200 mm (Ø7.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Selection | Bi-direction random type, Shortest path |
| Max Table Load | 10,000 kg (22,000 lb) |
| Machine Dimensions | 6,633 x 4,600 x 3,883 mm (261.1 x 181.1 x 152.9 in) |
| Machine Weight | 22,800 kg (50,220 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 22 / 26 kW (29.5 / 34.9 hp) geared drive, stronger than the 15 / 18.5 kW (20.1 / 24.8 hp) of the DMC-2100H
- BT-50 / CAT-50 spindle on a 90 mm (3.5 in) bearing, with HSK A100 as an option
- Takes tools of 15 kg (33 lb), 400 mm (15.7 in) long and Ø200 mm (Ø7.8 in) without adjacent tools
- 1,778 mm (70 in) of Y travel and a 10,000 kg (22,000 lb) table
- Built-in spindle options of 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) at 10,000 rpm
Limitations
- Standard spindle speed is 6,000 rpm
- All three axes rapid at 12 m/min (472 ipm)
- The 24-tool magazine fills quickly with 50-taper roughing and boring tools; 32, 40 and 60-tool changers are options
- Through-spindle coolant at 20 bar is an option, not part of the base machine
Best For
Frequently Asked Questions
01
Yes. Travels, table, load, footprint and the 22,800 kg (50,220 lb) weight are identical. The difference is the spindle: the DMC-2100S has BT-40 / CAT-40 on a 70 mm (2.8 in) bearing, the DMC-2100SH has BT-50 / CAT-50 on a 90 mm (3.5 in) bearing with a 22 / 26 kW (29.5 / 34.9 hp) geared motor.
02
Ø200 mm (Ø7.8 in) when the pockets on either side are empty, and Ø125 mm (Ø5 in) with adjacent pockets filled. Maximum tool length is 400 mm (15.7 in) and maximum tool weight is 15 kg (33 lb).
03
Not as standard. Johnford lists a 5-Face milling head, an NC 2-Axis milling head, a universal milling head and an orthogonal milling head as optional accessories for this series.
04
6,000 rpm with the standard Hi Lo Gear drive. The optional built-in spindles run at 10,000 rpm, and the accessory list names 10,000 rpm for the HSK A100 built-in spindle.
