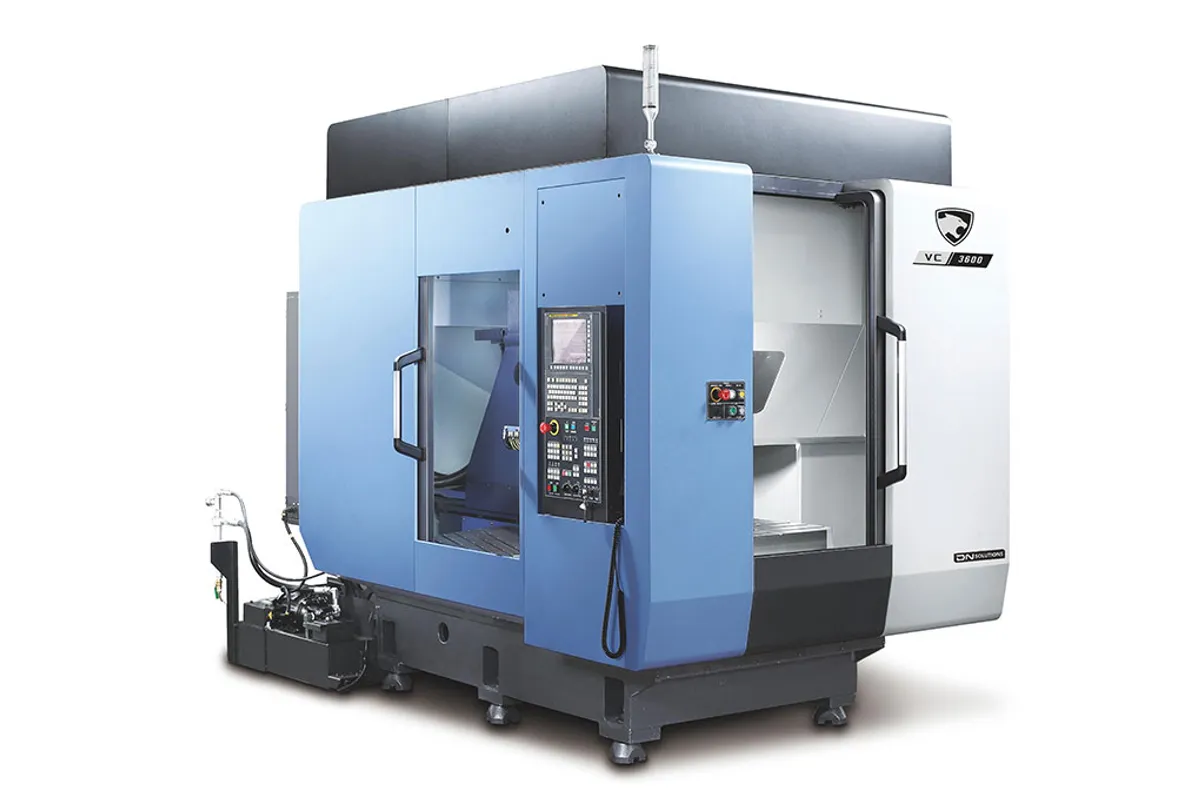

DN Solutions VC 3600

$80,000 - $120,000 Updated 2026-03-19

Key Specifications

Spindle Taper

ISO #40 (BT40)

x axis travel

520 mm (20.5 in)

y axis travel

360 mm (14.2 in)

z axis travel

465 mm (18.3 in)

rapid traverse x

48 m/min (1,890 in/min)

rapid traverse y

48 m/min (1,890 in/min)

Overview

The DN Solutions VC 3600 is a compact, high-speed vertical machining center designed for small precision parts production. With 520 x 360 x 465 mm travels on X, Y, and Z, it's not a big machine, and it's not trying to be. This is a dedicated small-parts VMC optimized for speed and throughput — think medical components, electronic housings, watch cases, and precision fittings.

The 12,000 RPM spindle paired with 95 Nm (70 ft-lb) of torque through an ISO 40 taper gives you the speed for aluminum and the grunt for small steel parts. What really sets the VC 3600 apart is the rapid traverse — 48 m/min on all three axes. That's significantly faster than most VMCs in this size class and translates directly to shorter cycle times on parts with lots of holes, pockets, and position moves.

At 5,400 kg (11,905 lb), the VC 3600 packs considerable mass for its compact envelope. That weight comes from the machine's rigid box-type base casting, which helps maintain accuracy during sustained production runs. The thermal stability is solid, and operators report consistent tolerances across full shifts without chasing dimensions.

DN Solutions fits this machine with the Fanuc 0i-Plus control and 15-inch iHMI touchscreen. For shops running high-mix small parts, the conversational programming speeds up simple jobs while CAM handles the complex geometry. The compact footprint means you can fit this machine where a larger VMC won't go, and the fast rapids mean it earns its keep even in tight spaces.

The VC 3600 competes against machines like the Brother TC-S2DN and Fanuc Robodrill in the high-speed small-parts VMC segment. It's not as fast as those dedicated 30-taper drill-tap centers, but the 40-taper spindle gives it more cutting authority when you need to step outside light-duty work.

Full Specifications

Parameter	Value
X Axis Travel	520 mm (20.5 in)
Y Axis Travel	360 mm (14.2 in)
Z Axis Travel	465 mm (18.3 in)
Rapid Traverse X	48 m/min (1,890 in/min)
Rapid Traverse Y	48 m/min (1,890 in/min)
Rapid Traverse Z	48 m/min (1,890 in/min)
Spindle Speed	12,000 RPM
Spindle Torque	95 Nm (70 ft-lb)
Spindle Taper	ISO #40 (BT40)
Machine Dimensions	3,044 x 1,900 x 2,657 mm
Machine Weight	5,400 kg (11,905 lb)
CNC Control	Fanuc 0i-Plus with 15" iHMI touchscreen
Max Spindle Speed	12000 r/min
X Axis Travel Distance	520 mm
Y Axis Travel Distance	360 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle TorqueTool Taper
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	VC 3600/30

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

48 m/min rapids on all axes deliver fast chip-to-chip times for high-throughput small-parts production
12,000 RPM spindle speed handles aluminum and non-ferrous materials at aggressive surface speeds
ISO 40 taper gives more rigidity and cutting authority than competing 30-taper drill-tap centers
5,400 kg machine weight provides thermal stability and vibration damping beyond what the compact size suggests
Compact footprint fits into tight shop layouts where larger VMCs won't work
Fanuc 0i-Plus control with iHMI is familiar to most operators and service techs

Limitations

520 x 360 mm X/Y travels limit part size — anything beyond about 450 mm in X needs a bigger machine
No table dimensions published in base specs makes fixture planning harder without measuring
12,000 RPM is fast but falls short of 20,000-30,000 RPM drill-tap centers for ultra-high-speed aluminum work
Limited Z travel of 465 mm restricts tall part or long-tool applications

Best For

High-volume production of small precision parts in aluminum, brass, and mild steel Medical device and electronic component manufacturers needing fast cycle times Job shops producing small parts where rapids and spindle speed drive throughput Shops looking for a compact VMC with 40-taper authority in a small footprint Secondary operations on castings and forgings where drilling and tapping dominate the cycle

Frequently Asked Questions

01 What does a DN Solutions VC 3600 cost?

New VC 3600 machines typically run $80,000-$120,000 depending on options. That puts it in the range of premium drill-tap centers while offering the added rigidity of a 40-taper spindle.

02 How does the VC 3600 compare to a Fanuc Robodrill?

The Robodrill uses a 30-taper spindle with faster tool changes and higher spindle speeds (up to 24,000 RPM). The VC 3600 counters with a 40-taper spindle offering more rigidity and torque for heavier cuts. Choose the Robodrill for pure speed in aluminum; choose the VC 3600 for more versatility across materials.

03 Can the VC 3600 cut steel and stainless?

Yes. The 40-taper spindle with 95 Nm of torque handles steel and stainless parts within the machine's travel envelope. It won't match a full-size VMC on heavy roughing, but for small precision steel parts, it's well suited.

04 What's the difference between the VC 3600 and VC 3600 30?

The VC 3600 30 uses an ISO 30 taper spindle with a dual-table pallet system for even faster throughput on very small parts. The standard VC 3600 keeps the ISO 40 taper for more cutting authority. Choose based on whether speed or rigidity matters more for your parts.
