Sharp SVG-9943A-F

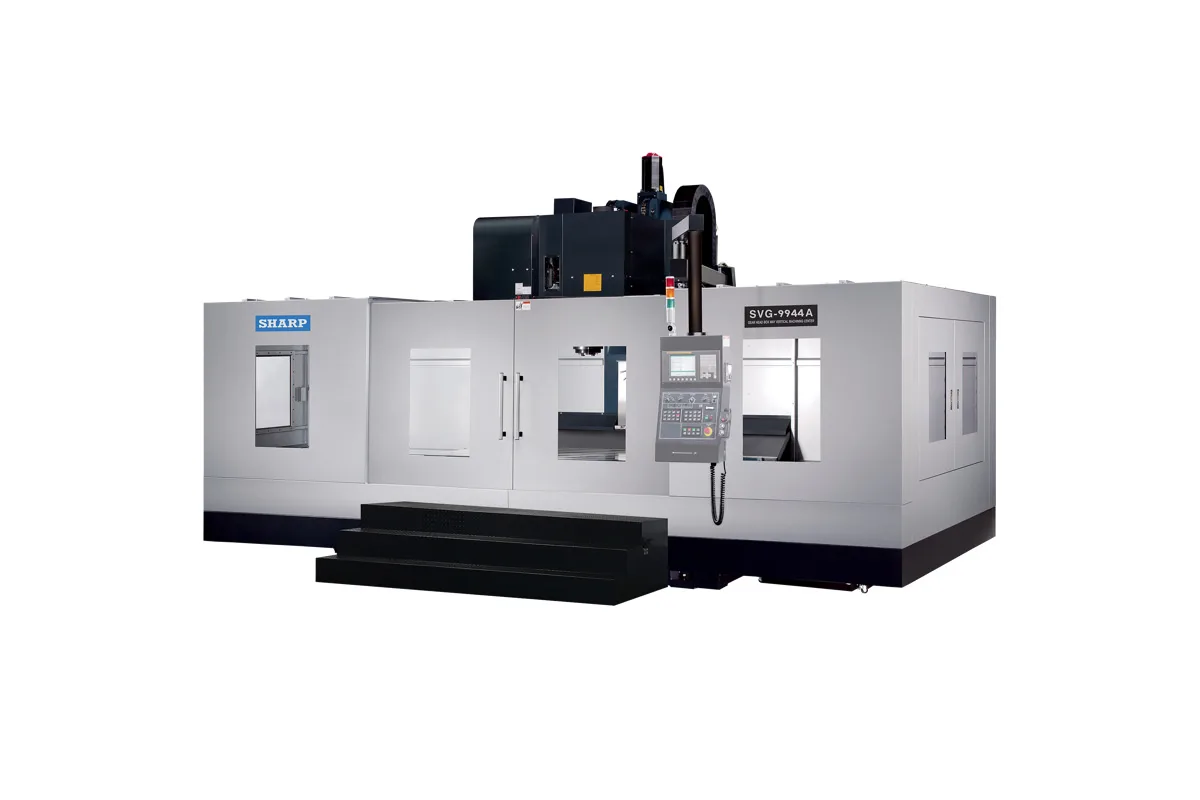

Image: sharp-industries.com, Sharp
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Sharp SVG-9943A-F cost?
Price estimate
We do not have a price for the Sharp SVG-9943A-F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 98.43 in (2500 mm) of X travel the Sharp SVG-9943A-F is the longest machining center Sharp lists, a 58,422 lb (26,500 kg) box-way machine with a 106.3 x 39.37 in (2700 x 1000 mm) table rated for 7716 lb (3500 kg).
It is best read as a stretched SVG-8743A-F. Y travel of 43.31 in (1100 mm), Z travel of 35.43 in (900 mm), the six-way layout, the 40-tool magazine and the CAT 50 geared spindle are carried over. What Sharp changed to move the longer, heavier table is the drive: the feed motors are listed as α30i / α40i / α30iB on X, Y and Z. Even so, rapid traverse is a uniform 315 in/min (8 m/min) on all three axes, the slowest in the range.
Those rapids say how the machine should be used. Long cuts in a single setup suit it; jobs with hundreds of short positioning moves do not. Cutting feed reaches 197 in/min (5 m/min), and the gearbox delivers 427 ft-lb at the spindle for large-diameter cutters. Coolant is supplied at 290 psi (20 bar).
Loading is from the front through a 122.05 in (3100 mm) door, with the table surface 43.5 in (1105 mm) above the floor. The footprint is 259.84 x 154.3 in (6600 x 3919 mm) and the height 136.26 in (3461 mm), so crane access and foundation need to be settled early. Electrical demand is 40 kVA, with air at 80-110 psi.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 98.43 in (2500 mm) |
| Y Axis Travel | 43.31 in (1100 mm) |
| Z Axis Travel | 35.43 in (900 mm) |
| Distance Spindle Nose to Table | 9.45-44.88 in (240-1140 mm) |
| Distance Spindle Center to Column | 41.34 in (1050 mm) |
| Table Size | 106.3 x 39.37 in (2700 x 1000 mm) |
| Table Height From Floor | 43.5 in (1105 mm) |
| Max Table Load | 7716 lb (3500 kg) |
| T-Slots | 22 x 6T x 6.3 in (22 x 6T x 160 mm) |
| Spindle Taper | CAT 50 |
| Max Spindle Speed | 6000 rpm |
| Spindle Motor Power | 22/26 kW (29.5/34.9 hp) |
| Spindle Torque | 427 ft-lb(α22i / 6000rpm) (579 Nm (α22i / 6000rpm)) |
| Spindle Motor Model | α22i |
| Spindle Drive | 2 speed gear |
| Spindle Bearing Bore | 3.94 in(Front) / 3.54 in(Rear) (100 mm(Front) / 90 mm(Rear)) |
| Spindle Lubrication | Grease |
| Spindle Cooling | Chilled Oil |
| Tool Clamp Force | 1800 kgf |
| Tool Changer Type | Side Mount |
| Tool Capacity | 40 tools |
| Max Tool Diameter (full magazine) | ø5 in (ø127 mm) |
| Max Tool Diameter Without Adjacent Tools | ø9.84 in (ø250 mm) |
| Max Tool Length | 11.81 in (300 mm) |
| Max Tool Weight | 33 lb (15 kg) |
| Tool Change Time | 4.39 sec(cam-box-only) |
| Tool Selection | Bi-direction Random |
| Rapid Traverse Xyz | 315 / 315 / 315 in/min (8 / 8 / 8 m/min) |
| Cutting Feed Rate | 197 in/min (5 m/min) |
| Axis Drive | 2 speed gear |
| Ballscrew Diameter Pitch | X,Z:ø50 x Pitch 10 mm Y:ø63 x Pitch 10 mm |
| Axis Motors | α30i / α40i / α30iB |
| Positioning Accuracy | 0.01 mm (0.00039 in), JIS standard |
| Repeatability | 0.006 mm (0.00024 in), JIS standard |
| Guideway Type | Square guide way with turcite B |
| X Axis Way Size Spacing | 7.09+7.09 in / 30.51 in (180+180 mm / 775 mm) |
| Y Axis Way Size Spacing | 7.87+5.91+5.91+5.9+5.91+7.87 in / 110.23 in (200+150+150+150+150+200 mm / 2800 mm) |
| Z Axis Way Size Spacing | 6.3+6.3 in / 23.62 in (160+160 mm / 600 mm) |
| Coolant Pressure | 290 psi (20 bar) |
| Machine Dimensions | 259.84 x 154.3 x 136.26 in (6600 x 3919 x 3461 mm) |
| Machine Height | 136.26 in (3461 mm) |
| Machine Weight | 58422 lb (26500 kg) |
| Door Opening | 122.05 in (3100 mm) |
| Power Requirement | 40KVA |
| Air Requirement | 80-110 psi (6-8kg/cm2) |
Specifications sourced from sharp-industries.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 98.43 in (2500 mm) of X travel on a 106.3 in (2700 mm) long table
- Table load of 7716 lb (3500 kg)
- Operator door opens 122.05 in (3100 mm) for crane loading
- Larger α30i / α40i / α30iB feed motors than the SVG-8743A-F
- Six hardened and ground box ways, per Sharp's overview
Limitations
- Rapid traverse is 315 in/min (8 m/min) on every axis
- Spindle speed is limited to 6000 rpm
- Needs a floor area of 259.84 x 154.3 in (6600 x 3919 mm)
- Y travel is no greater than on the shorter SVG-8743A-F
Best For
Frequently Asked Questions
01
The table is 106.3 x 39.37 in (2700 x 1000 mm) and carries 7716 lb (3500 kg). Travels are 98.43 in (2500 mm) in X, 43.31 in (1100 mm) in Y and 35.43 in (900 mm) in Z, with the spindle nose 9.45-44.88 in (240-1140 mm) above the table.
02
Slower in X. The SVG-9943A-F rapids at 315 / 315 / 315 in/min (8 / 8 / 8 m/min), while the SVG-8743A-F reaches 472 in/min (12 m/min) on X. Cutting feed is 197 in/min (5 m/min) on both.
03
40 tools in a side mount changer with bi-direction random selection. Each tool can be ø5 in (ø127 mm) in diameter, or ø9.84 in (ø250 mm) without an adjacent tool, 11.81 in (300 mm) long and 33 lb (15 kg). Sharp gives 4.39 sec for the tool change, cam box only.
04
Partly. Sharp lists 4th Axis Prepped (No Motor, No Drive) and 30 Bar CTS Prepped as standard accessories, so the wiring and spindle are prepared. The rotary table is an option, and the motor, drive and coolant pump should be confirmed with Sharp.
