Hurco DCX32 5Si

$500,000 - $700,000 Updated 2026-03-19

Key Specifications

X Travel

3,200 mm (126 in)

Y Travel

2,100 mm (82.7 in)

Z Travel

920 mm (36.2 in)

Spindle Taper

CAT 50

Tool Capacity

Table Size

118.1 x 66.9 in (3,000 x 1,700 mm)

Overview

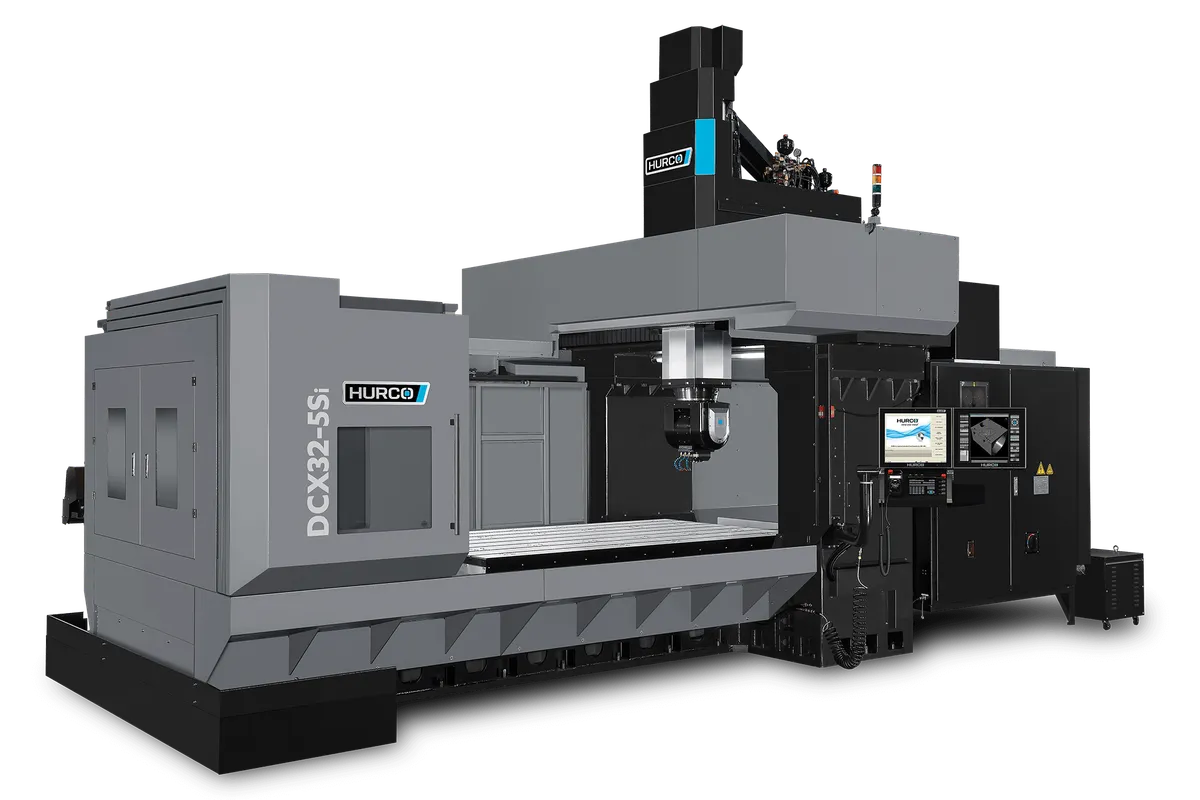

The Hurco DCX32 5Si is a large-envelope double-column bridge-type 5-axis machining center that combines the proven DCX32 platform with an integrated trunnion rotary table for simultaneous 5-axis machining. This machine targets shops that need to machine large, complex parts requiring multi-angle access in a single setup — impellers, turbine components, large mold cavities with compound contours, and aerospace structural parts that exceed the capacity of standard 5-axis VMCs.

Linear travels measure 3,200 mm (126 in) in X, 2,100 mm (82.7 in) in Y, and 920 mm (36.2 in) in Z. The integrated trunnion table adds A-axis rotation of +30 to -120 degrees and full 360-degree C-axis rotation, providing simultaneous 5-axis interpolation across the entire working envelope. The trunnion table accepts workpieces up to 1,200 mm (47.2 in) diameter, while the fixed table areas flanking the trunnion remain available for 3-axis work.

The spindle is a CAT 50 unit delivering 30 kW (40 HP) continuous power at up to 6,000 RPM. The box-way construction on all linear axes provides the damping and load-carrying capacity essential for heavy cutting on a machine of this scale. The 40-tool ATC handles the CAT 50 tooling required for large-part roughing and finishing operations.

Programming 5-axis parts on the WinMax control is where Hurco differentiates from competitors. WinMax’s 5-axis Transform Plane feature enables conversational programming of angled features and compound surfaces that would otherwise require CAM software. For complex simultaneous 5-axis toolpaths, WinMax accepts output from all major CAM systems. The DCX32 5Si weighs approximately 34,000 kg (74,957 lb) and requires a reinforced foundation. New machines price between $500,000 and $700,000.

Full Specifications

Parameter	Value
X-Axis Travel	3,200 mm (126 in)
Y-Axis Travel	2,100 mm (82.7 in)
Z-Axis Travel	920 mm (36.2 in)
A Axis	+30° to -120°
C Axis	360° continuous
Table Size	118.1 x 66.9 in (3,000 x 1,700 mm)
Trunnion Table Diameter	1,200 mm (47.2 in)
Max Table Load	4,000 kg (8,818 lb) on trunnion
Spindle Speed	6,000 RPM
Spindle Taper	CAT 50
Spindle Motor Power	30 kW (40 HP) continuous
Rapid Traverse Xy	12 m/min (472 IPM)
Rapid Traverse Z	10 m/min (394 IPM)
Tool Capacity	40
Axes	5 (X, Y, Z linear + A, C rotary)
Guideway Type	Box ways (all linear axes)
CNC Control	Hurco WinMax with 5-axis Transform Plane
Machine Weight	82,982 lb (37,640 kg)
Max Spindle Motor Torque	69.3 ft lbs @ 5,700 rpm (94 Nm @ 5,700 rpm)
Travels Capacityx Y Z Axis Travel	126 x 82.7 x 35.4 in (3,200 x 2,100 x 900 mm)
Spindle Nose To Table Min Max	2.6 / 38 in (66 / 960 mm)
Max Weight On Table	24,250 lbs (11,000 kg)
T Slot Size	7 x 0.87 in (7 x 22 mm)
Distance B W Columns	83.9 in (2,130 mm)
B Axis Travel	+/-110°
C Axis Travel	+/-360°
Spindlemax Spindle Speed	18,000 rpm
Peak Spindle Motor	75.1 hp (56 kW)
Tool Changertool Type	HSK 63
Max Tool Diameter	3.0 in (76 mm)
Max Tool Length	11.8 in (300 mm)
Max Tool Weight	15.4 lb (7 kg)
Feedratesrapid Traverse Xyz Axis	591, 591, 394 in/min (15, 15, 10 m/min)
Max Programmable Feedrate	394 in/min (10 m/min)
Machine Height	207.0 in (5,250 mm)
Required Floor Space	393.0 x 268.3 in (9,982 x 6,815 mm)
Power Rating Full Load Kva	89 KVA

Specifications sourced from hurco.com — verified 2026-03-28

Strengths & Limitations

Strengths

True simultaneous 5-axis capability on a large 3,200 mm X-travel double-column platform handles complex parts that smaller 5-axis machines cannot physically accommodate
WinMax 5-axis Transform Plane enables conversational programming of angled and compound features, reducing CAM dependency for 3+2 positioning work
30 kW CAT 50 spindle provides the torque and power required for heavy roughing in steel, cast iron, and titanium on large workpieces
Double-column bridge construction maintains rigidity across the full working envelope, critical for consistent accuracy in 5-axis contouring
Box-way guideways on all axes provide superior damping during interrupted cuts and heavy material removal on large castings and forgings
Fixed table areas flanking the trunnion allow mixed 3-axis and 5-axis work on the same machine without reconfiguration

Limitations

4,000 kg trunnion table load capacity is substantially less than the fixed-table DCX32i’s 10,000 kg rating, limiting heavy workpiece 5-axis machining
6,000 RPM spindle speed is below dedicated 5-axis aerospace machines (15,000-24,000 RPM) for high-speed aluminum finishing operations
40-tool magazine may be limiting for complex 5-axis programs requiring extensive tool libraries for contouring, finishing, and deburring
Entry price of $500,000+ before installation and foundation costs limits this machine to shops with consistent large 5-axis work volume

Best For

Aerospace manufacturers machining large impellers, turbine components, and structural parts requiring simultaneous 5-axis contouring in a single setup Mold and die shops cutting complex cavity surfaces with steep draft angles and compound contours on large mold bases Energy sector manufacturers producing turbine blades, propeller components, and other curved surfaces on heavy workpieces up to 4,000 kg Defense contractors machining large titanium and Inconel components that require both heavy material removal and multi-angle 5-axis access Shops needing a single platform for both large-envelope 3-axis work and 5-axis machining without transferring parts between machines

Frequently Asked Questions

01 What does a Hurco DCX32 5Si cost?

New DCX32 5Si machines typically price between $500,000 and $700,000 depending on trunnion configuration, probing systems, and software options. Total installed cost including foundation, rigging, and electrical work can approach $800,000. Used availability is very limited due to the specialized nature of this machine.

02 What is the difference between the DCX32i and the DCX32 5Si?

The DCX32 5Si adds an integrated trunnion rotary table providing A-axis and C-axis rotation for simultaneous 5-axis machining. The trunnion table load capacity is 4,000 kg versus the fixed table’s 10,000 kg. Linear travels are identical. Choose the 5Si when your work requires 5-axis access that cannot be achieved through multi-setup 3-axis approaches on the standard DCX32i.

03 How does the DCX32 5Si compare to the larger DCX3226HT 5Si?

The DCX3226HT 5Si has a wider Y-axis travel (2,600 mm vs 2,100 mm), an upgraded 37 kW spindle at 8,000 RPM, and a larger 1,500 mm trunnion table diameter. The DCX32 5Si offers a lower entry price for shops that do not need the additional Y-travel or spindle performance. Both share the same X-travel of 3,200 mm and WinMax 5-axis control.

04 What CAM software works best with the DCX32 5Si?

The WinMax control accepts standard G-code from all major CAM systems. For simultaneous 5-axis work, shops commonly use Mastercam, NX, CATIA, hyperMILL, or PowerMill with Hurco-specific post processors. For 3+2 positioning work, WinMax’s conversational programming can handle many operations without CAM software.
