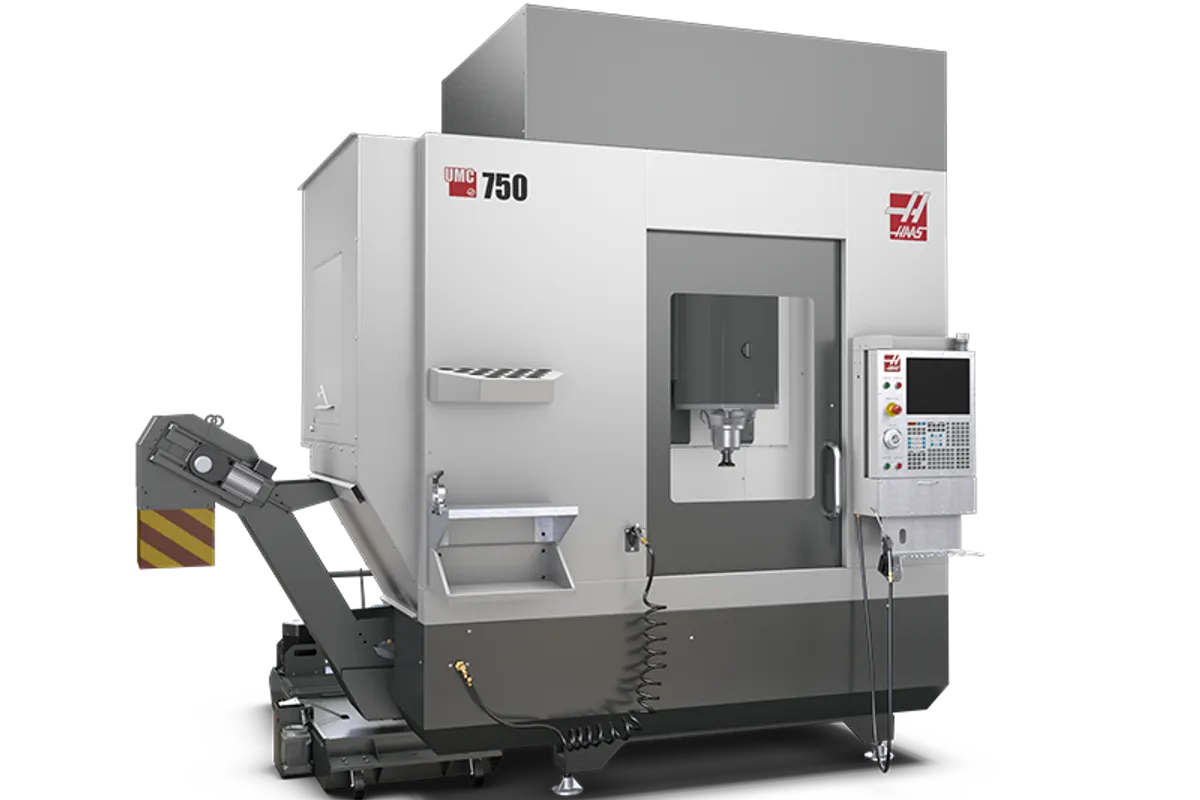

Haas UMC-750
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Haas UMC-750 cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas UMC-750 sits in the middle of the UMC range: 30 × 20 × 20 in (762 × 508 × 508 mm) of travel, a 19.7 in (500 mm) platter and a 660 lb (300 kg) load limit on a two-axis trunnion. The spindle is the 30 hp (22.4 kW), 8,100 rpm inline direct-drive unit, and the starting price Haas lists is US$192,995.
The UMC-500 below it has 24 × 16 × 16 in (610 × 406 × 406 mm) and a 15.7 in (400 mm) platter for 500 lb (226.8 kg). The UMC-1000 above has 40 × 25 × 25 in (1,016 × 635 × 635 mm) and a 25 in (635 mm) platter for 1,000 lb (454 kg). All three share the spindle rating, the 650 ipm (16.5 m/min) cutting feed and the 900 ipm (22.9 m/min) rapids, so the decision between them is about part size and weight, not cutting performance.
On this size the tilt axis is the stronger of the two. B has 2,240 ft-lbf (3,037 N·m) of torque and a 2,000 ft-lbf (2,712 N·m) brake; C has 1,854 ft-lbf (2,514 N·m) and a 900 ft-lbf (1,220 N·m) brake. Both use cycloidal drives and both top out at 50°/sec. Part swing is 27 in (686 mm), well beyond the platter diameter, so the practical limit on a large part is usually whether it clears the spindle head when tilted, with 24 in (610 mm) at most between spindle nose and platter.
Thrust is 3,300 lbf (14,680 N) in X and Y and 4,050 lbf (18,015 N) in Z. The 30+1 side-mount changer accepts tools 12 in (305 mm) long and 12 lb (5.4 kg) in weight and changes in 2.8 s tool-to-tool. The base machine ships at 14,250 lb (6,463.8 kg) on a 168 × 92.5 × 110 in (427 × 235 × 280 cm) pallet and draws 70 A at 220 VAC three-phase or 35 A at 440 VAC.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 30 in (762 mm) |
| Y-Axis Travel | 20 in (508 mm) |
| Z-Axis Travel | 20 in (508 mm) |
| Spindle Nose to Platter (max) | 24 in (610 mm) |
| Spindle Nose to Platter (min) | 4 in (102 mm) |
| Spindle Motor Power | 30 hp (22.4 kW) |
| Max Spindle Speed | 8,100 rpm |
| Spindle Torque | 90 ft-lbf @ 2,000 rpm (122 N·m @ 2,000 rpm) |
| Spindle Drive | Inline Direct-Drive |
| Spindle Taper | CT40 / BT40 / HSK-A63 |
| Spindle Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| B Axis Travel | 120 ° to -35 ° |
| B Axis Max Speed | 50 °/sec |
| B Axis Torque | 2,240 ft-lbf (3,037 N·m) |
| B Axis Brake Torque | 2,000 ft-lbf (2,712 N·m) |
| C Axis Travel | 360 ° |
| C Axis Max Speed | 50 °/sec |
| C Axis Torque | 1,854 ft-lbf (2,514 N·m) |
| C Axis Brake Torque | 900 ft-lbf (1,220 N·m) |
| C Axis Max Part Swing | 27 in (686 mm) |
| Platter Diameter | 19.7 in (500 mm) |
| Max Platter Load | 660 lb (300 kg) |
| Max Platter Load with Pallet Pool | 200 lb (90.7 kg) |
| Platter T Slot Width | 0.626 in to 0.63 in (15.9 mm to 16 mm) |
| Platter T Slots | 7 |
| Platter T Slot Center Distance | 2.48 in (63 mm) |
| Max Cutting Feedrate | 650 ipm (16.5 m/min) |
| Rapid Traverse Rate | 900 ipm (22.9 m/min) |
| Max Thrust X | 3,300 lbf (14,680 N) |
| Max Thrust Y | 3,300 lbf (14,680 N) |
| Max Thrust Z | 4,050 lbf (18,015 N) |
| Tool Changer Type | SMTC |
| Tool Capacity | 30+1 |
| Max Tool Diameter (full magazine) | 2.5 in (64 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5 in (127 mm) |
| Max Tool Length | 12 in (305 mm) |
| Max Tool Weight | 12 lb (5.4 kg) |
| Tool Change (tool-to-tool) | 2.8 s |
| Tool Change (chip-to-chip) | 3.6 s |
| Coolant Capacity | 55 gal (208 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 168 × 92.5 × 110 in (427 × 235 × 280 cm) |
| Shipping Export Pallet | 174 × 92 × 100 in (442 × 234 × 254 cm) |
| Machine Weight | 14,250 lb (6,463.8 kg) |
| Shipping Domestic Pallet with 70 plus 1 SMTC | 168 × 92.5 × 130 in (427 × 235 × 330 cm) |
| Shipping Export Crate with 70 plus 1 SMTC | 168 × 95 × 141 in (427 × 241 × 358 cm) |
| Machine Weight with 70 plus 1 SMTC | 18,340 lb (8,319 kg) |
| Shipping Export Crate for Sheet Metal | 96 × 26 × 44 in (243 × 65 × 110 cm) |
| Shipping Domestic Pallet with Conveyor 120 plus 1 SMTC | 176 × 122.5 × 110 in (447 × 311 × 279 cm) |
| Machine Weight with Conveyor 120 plus 1 SMTC | 17,100 lb (7,756 kg) |
| Shipping Export Pallet with Conveyor 120 plus 1 SMTC | 168 × 125 × 141 in (427 × 318 × 358 cm) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 30 × 20 × 20 in (762 × 508 × 508 mm) travels with 27 in (686 mm) of part swing
- B axis with 2,240 ft-lbf (3,037 N·m) of torque and a 2,000 ft-lbf (2,712 N·m) brake
- 660 lb (300 kg) platter load on a 19.7 in (500 mm) platter with 7 T-slots
- 30 hp (22.4 kW) spindle with 90 ft-lbf (122 N·m) at 2,000 rpm in CT40, BT40 or HSK-A63
- Z thrust of 4,050 lbf (18,015 N), about 23% above the 3,300 lbf (14,680 N) of X and Y
Limitations
- Rotary axes are limited to 50°/sec; the UMC-750SS is the faster version, with 12,000 rpm and 1,200 ipm (30.5 m/min) rapids
- C-axis brake is 900 ft-lbf (1,220 N·m), less than half the B-axis brake
- Platter load drops to 200 lb (90.7 kg) with the pallet pool
- 8,100 rpm spindle and a 2.5 in (64 mm) full-magazine tool diameter
- Shipping weight of 14,250 lb (6,463.8 kg) and a 168 in (427 cm) long pallet call for planning the delivery route
Best For
Frequently Asked Questions
01
Up to 660 lb (300 kg) on a 19.7 in (500 mm) platter, with a maximum part swing of 27 in (686 mm). Linear travels are 30 in (762 mm) in X and 20 in (508 mm) in both Y and Z. The spindle nose is between 4 in (102 mm) and 24 in (610 mm) from the platter, which is the height available for fixture, part and tool together.
02
Decide on part size. The UMC-1000 has 40 × 25 × 25 in (1,016 × 635 × 635 mm) of travel and a 25 in (635 mm) platter rated for 1,000 lb (454 kg), and ships at 15,600 lb (7,077 kg). The UMC-750 covers 30 × 20 × 20 in (762 × 508 × 508 mm) and 660 lb (300 kg). Spindle, feedrates and tool capacity are listed the same.
03
The UMC-750SS is listed at 12,000 rpm with 1,200 ipm (30.5 m/min) rapids and an 833 ipm (21.2 m/min) cutting feedrate. The UMC-750 is listed at 8,100 rpm, 900 ipm (22.9 m/min) and 650 ipm (16.5 m/min). Travels, platter size, the 660 lb (300 kg) load and the 30 hp (22.4 kW) spindle rating are the same.
04
It is 19.7 in (500 mm) in diameter with 7 T-slots. The slots are 0.626 in to 0.63 in (15.9 mm to 16 mm) wide on 2.48 in (63 mm) centres. If the machine is run with a pallet pool, the platter load limit is 200 lb (90.7 kg) in place of 660 lb (300 kg).
05
The base machine is listed at 14,250 lb (6,463.8 kg) on a domestic pallet of 168 × 92.5 × 110 in (427 × 235 × 280 cm) or an export pallet of 174 × 92 × 100 in (442 × 234 × 254 cm). With a conveyor and the 120+1 tool changer the listing is 17,100 lb (7,756 kg) on a 176 × 122.5 × 110 in (447 × 311 × 279 cm) pallet. These are shipping figures, not the installed size.
