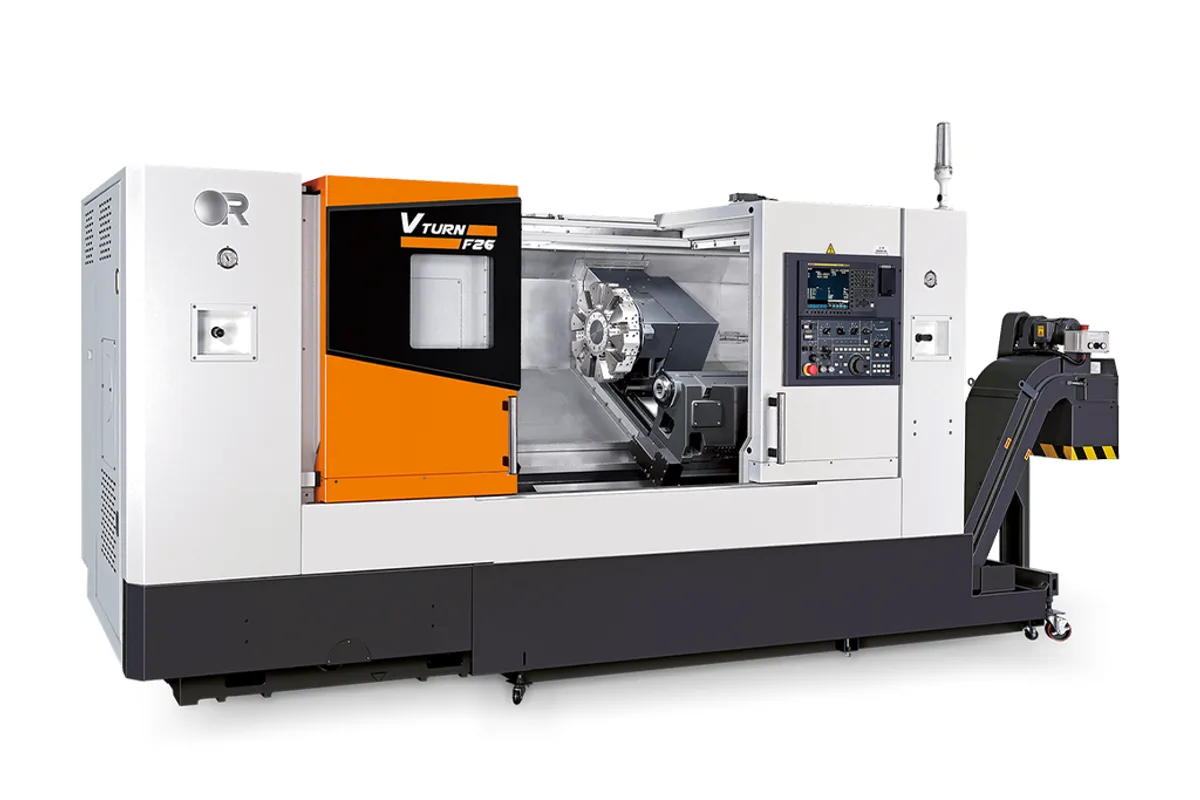

Victor Taichung Vturn-F26/110
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-F26/110 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-F26/110 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vturn-F26/110 stretches the maker's basic 10 in chuck lathe to 1,130 mm (44.48 in) of turning length. Diameter capacity is Ø430 mm (Ø16.92 in), the spindle is an A2-8 unit at 3,500 rpm with Ø75 mm (Ø2.95 in) through it, and the machine weighs 6,250 kg (13,778.87 lb).
This is the shaft machine of the F series. Its extra bed over the Vturn-F26/60 is the whole difference, and it turns the line from a chucker into something that can hold axles, rollers and spindles between the chuck and an M.T. #5 centre. The tailstock is programmable, which saves time on repeat shaft jobs.
Swing over the carriage is Ø480 mm (Ø18.89 in) and the standard turning diameter is Ø350 mm (Ø13.77 in). The turret has 10 stations for □25 mm shank tools. Ten tools is enough for most two-axis shaft work, where the cycle is a handful of roughing, finishing, grooving and threading tools, but it leaves little room for sister tooling on long unattended runs.
Like the rest of the series it has box slideways on a one-piece 30˚ slant bed and a Z-axis ball screw 40mm in diameter. Over a bed this long, box ways help damp the cut when the tool is far from both the chuck and the centre. No C axis is offered.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | Ø350 mm (Ø13.77 in) |
| Max Turning Diameter | Ø430 mm (Ø16.92 in) |
| Max Turning Length | 1,130 mm (44.48 in) |
| Swing Over Carriage | Ø480 mm (Ø18.89 in) |
| Max Spindle Speed | 3,500 rpm |
| Spindle Nose | A2-8 (10") |
| Bar Capacity | Ø75 mm (Ø2.95 in) |
| Turret Tools | 10 |
| Tool Shank Size | □25 mm |
| Tailstock Quill Taper | M.T. #5 |
| Machine Weight | 6,250 kg (13,778.87 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,130 mm (44.48 in) turning length, the longest in the F series
- Programmable tailstock with an M.T. #5 quill
- Ø75 mm (Ø2.95 in) bar capacity and a 10 in chuck
- Box slideways and a Z-axis ball screw 40mm in diameter
Limitations
- Only 10 turret stations for a long-bed machine
- Two-axis turning only, with no C axis option
- No steady rest appears on the F series option list, which limits slender shafts
- Spindle speed is capped at 3,500 rpm
Best For
Frequently Asked Questions
01
The maximum turning length is 1,130 mm (44.48 in). Maximum turning diameter is Ø430 mm (Ø16.92 in), the standard turning diameter is Ø350 mm (Ø13.77 in) and swing over the carriage is Ø480 mm (Ø18.89 in).
02
A programmable tailstock with an M.T. #5 quill taper, listed as standard for the F series. A tailstock centre is on the option list, so check whether one is included in the quotation.
03
Not according to the maker's F series pages. The table lists a 10-tool turret with □25 mm shanks and no live-tool or C-axis figures, and the option list has none either.
04
6,250 kg (13,778.87 lb), the heaviest figure in the F series. Allow for the extra length when planning the floor space and the chip conveyor position.
