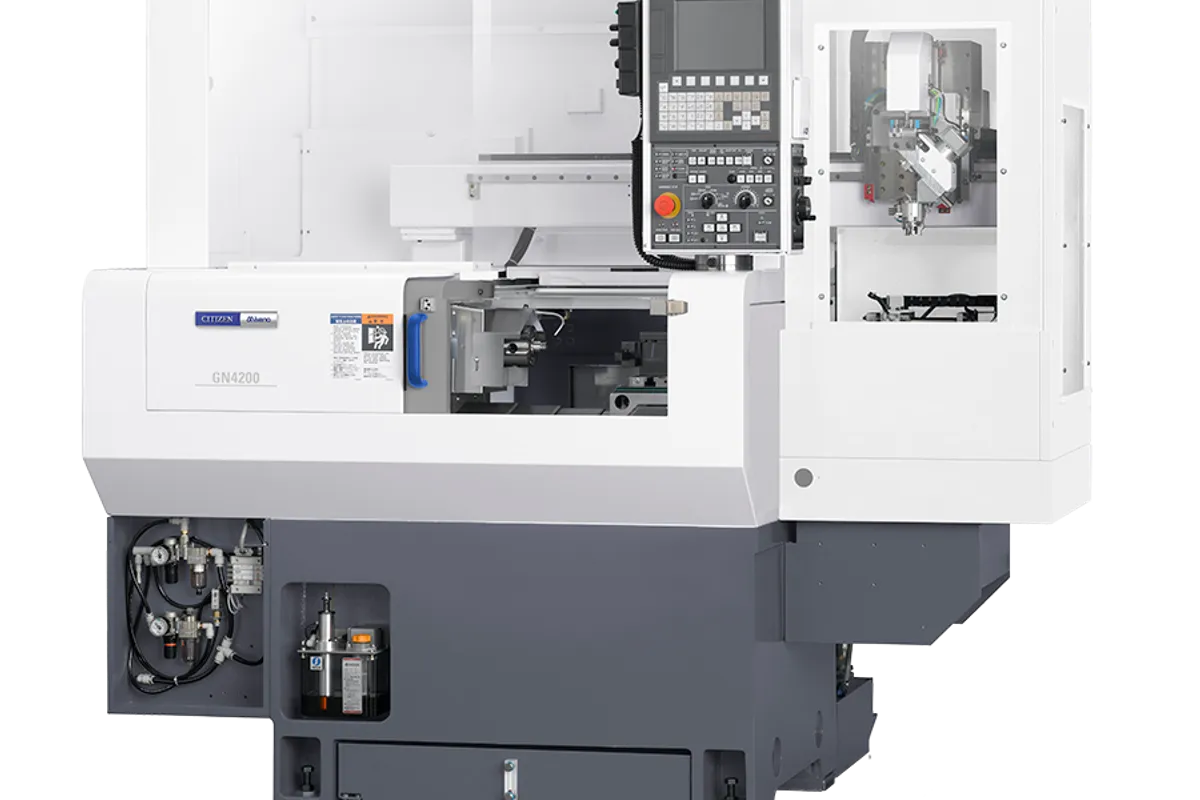

Citizen Miyano GN-4200
Key Specifications
max collet diameter air chuck
max collet diameter pull type
max machining length
main spindle speed
spindle motor
tooling type
Overview
The Citizen Miyano GN-4200 is a gang-type CNC lathe with 42mm collet capacity (45mm with fine precision air chuck), extending the GN platform between the 32mm GN-3200 and 52mm GN-5200 for the 35-45mm range common in automotive, hydraulic, and fastener production.
The main spindle reaches 8,000 RPM with 5.5/3.7 kW power, a significant increase over the GN-3200. The horizontal linear turret provides gang-type speed: tool changes at rapid traverse.
Enlarged working envelope: X-axis 300mm (vs 180mm on GN-3200), Z-axis 250mm (vs 200mm), max machining length 80mm (vs 50mm). PMC axis control with flexible loader control enables automated loading.
At 1,500 kg with 1,350 x 1,325mm floor space, the GN-4200 maintains a compact footprint. Targets automotive transmission pins, hydraulic fitting blanks, and precision fasteners.
Full Specifications
| Parameter | Value |
|---|---|
| Max Collet Diameter Air Chuck | 45 mm (1.77 in) |
| Max Collet Diameter Pull Type | 40 mm (1.57 in) |
| Max Machining Length | 80 mm (3.15 in) |
| Main Spindle Speed | 8,000 RPM |
| Spindle Motor | 5.5 / 3.7 kW (7.4 / 5 HP) |
| Tooling Type | Horizontal linear turret |
| X Axis Travel | 300 mm (11.81 in) |
| Z Axis Travel | 250 mm (9.84 in) |
| Machine Weight | 1,500kg |
| Floor Space | W1,350mm×D1,325mm |
| Machine Height | 1,695mm |
| CNC Control | PMC Axis Control with Flexible Loader Control |
| Items | GN-4200 |
| Machining Capacity And Chuck System | Maximum Diameter of Collet Chuck |
| Pull Type Collet Chuck | 40mm Dia.(Stationary 35mm Dia.) |
| Maximum Machining Length | 80mm |
| Spindle | Spindle motor |
| Main Spindle Speed Range | 8,000min-1 |
| Slide | Type of Turret |
| Type Of Side | X axis |
| Z Axis | 250mm |
| Slide Stroke | X axis |
| Machine Dimensions | Machine Height |
| Loader Specifications | Type of Loader |
| Maximum Workpiece Size | 40mm Dia. × 40mm Dia. |
| Maximum Workpiece Weight | 250g |
| Cnc Control | PMC Axis Control |
| Control Soft | Flexible Loader Control |
| Drive System | Right and Left Operation |
| Upper And Lower Sides | Rack & Pinion |
| Sliding Headstock Type | A20 |
| Bar Work | BNC42 |
| Turning Machine | BNA42CY |
| High Precision Turning Machines | BNA42SY |
| Multi Station Machining Cell | MC20 III |
| Maximum Diameter Of Collet Chuck Fine Precision Air Chuck | 45mm Dia. |
| Maximum Diameter Of Collet Chuck Pull Type Collet Chuck | 40mm Dia.(Stationary 35mm Dia.) |
| Spindle Motor 15min Cont | 5.5/3.7kW |
| Type Of Turret | Hrizontal Linear Turret |
| Type Of Side X Axis | Dovetail |
| Type Of Side Z Axis | Dovetail |
| Slide Stroke X Axis | 300mm |
| Slide Stroke Z Axis | 250mm |
| Type Of Loader | 2-Axes Gantry Loader(2Hands) |
| Drive System Right And Left Operation | Rack & Pinion |
| Drive System Upper And Lower Sides | Rack & Pinion |
| Inquiries | Feel free to get in touch with us by phone or online if you have any questions or need advice about any of our products or services. |
Specifications sourced from cmj.citizen.co.jp — verified 2026-03-28
Strengths & Limitations
Strengths
- [object Object]
- [object Object]
- [object Object]
- [object Object]
- [object Object]
- [object Object]
Limitations
- [object Object]
- [object Object]
- [object Object]
- [object Object]
Best For
Frequently Asked Questions
01
New pricing ranges from $80,000 to $120,000.
02
Larger capacity (42mm vs 32mm), more power (5.5 vs 2.2 kW), larger travels, and 80mm machining length (vs 50mm).
03
Standard supports turning, drilling, threading. For milling, consider BNE or ABX series.
04
GN-5200 handles up to 52mm with higher power. Choose based on max diameter needs.
