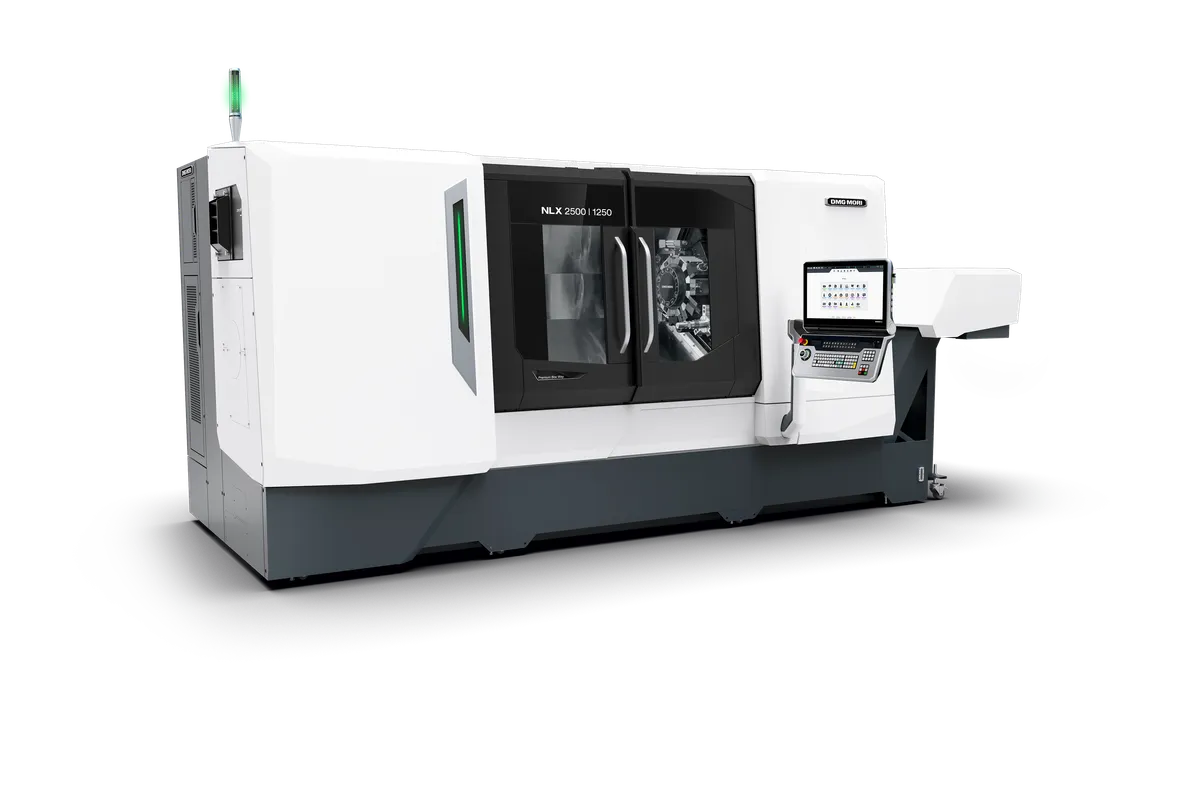

DMG Mori NLX 2500 2nd Generation
Key Specifications
Max Spindle
Tool Capacity
Rapid Traverse
Spindle Power
Max Turn Length
max turning diameter
Overview
The DMG Mori NLX 2500 2nd Generation is the complete redesign of the best-selling NLX 2500, launched in 2024 with meaningful upgrades across the board. While the original NLX 2500 was already one of the most respected mid-size production lathes, the 2nd Generation addresses every area where competitors had closed the gap: bigger bar capacity, more torque, better measuring, and lower operating costs.
The headline upgrade is bar capacity: 105 mm (4.1 in) on both main and sub-spindle, up from 80 mm on the original. This is a significant advantage over the Mazak QT-250M (65 mm), Okuma LB3000 EX II (80 mm), and Haas ST-20Y (51 mm). The turnMASTER spindle now delivers 828 Nm of torque at 4,000 RPM (1,273 Nm with the 12-inch chuck option), providing more cutting authority for tough materials.
SmartSCALE direct measuring replaces the encoder-based feedback system from the first generation. This eliminates the thermal growth and backlash compensation that encoder systems require, delivering true positional accuracy below 6 micrometers. The difference shows up in tolerance consistency over long production runs where ambient temperature varies.
The BMT turret system carries over with options for BMT60, BMT40, or VDI40 in 10 to 20 tool stations. Driven tools spin at up to 12,000 RPM with 100 Nm of torque. The optional Y-axis provides 120 mm of travel. What the 2nd Gen adds is efficiency: 16% lower power consumption, 12% lower compressed air usage, and 50% lower oil consumption versus the original NLX 2500.
The machine runs CELOS with Siemens or Mitsubishi MAPPS underneath. Pricing for the 2nd Generation starts around 65,000 and can reach 40,000 fully configured. First-generation NLX 2500 machines (2011-2023) trade between 0,000 and 40,000 on the used market. The 2nd Generation competes directly with the latest Mazak QT-250MSY, Okuma LB3000 EX III, and Doosan Puma 2600SY III.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 366 mm (14.4 in) |
| Max Turning Length | 705 mm (27.8 in) |
| Max Spindle Speed | 4,000 RPM |
| Spindle Motor Power | 18.5 kW (24.8 hp) |
| Spindle Torque | 828 Nm (1,273 Nm with 12-in chuck) |
| Bar Capacity | 105 mm (4.1 in) main and sub-spindle |
| Chuck Size | 254 mm (10 in), optional 305 mm (12 in) |
| Spindle Nose | A2-8 |
| X Axis Travel | 260 mm (10.2 in) |
| Y Axis Travel | 120 mm (4.7 in), optional |
| Z Axis Travel | 795 mm (31.3 in) |
| Turret Type | BMT60/BMT40/VDI40, 10-20 stations |
| Tool Capacity | 10-20 stations |
| Driven Tool Speed | Up to 12,000 RPM (BMT) |
| Driven Tool Torque | Up to 100 Nm |
| Rapid Traverse Rate | 30 m/min (1,181 ipm) X and Z |
| Measuring System | SmartSCALE direct measuring |
| Machine Weight | 6,000 kg (13,228 lb) |
| CNC Control | CELOS with Siemens or Mitsubishi MAPPS |
| 366 Mm | 14.4 in. |
| 1258 Mm | 49.5 in. |
| 105 Mm | 4.1 in. |
| 260 Mm | 10.2 in. |
| 120 Mm | 4.7 in. |
| 1345 Mm | 53 in. |
| Zero Sludge | pro |
| Details | Strongest version for 210 kg payloadFree accessibility to the machine and the automationStrongest version for 210 kg payloadFree accessibility to the machine and the automation |
| Strongest Version For 210 Kg Payloadfree Accessibility To The Machine And The Automation | Strongest version for 210 kg payloadFree accessibility to the machine and the automation |
| Strongest Version For 210 Kg Payload | Free accessibility to the machine and the automation |
| Customer Benefits | Before the actual machining, the machining status can be checked by using a graphic |
| 795 Mm | 31.3 in. |
| 708 Mm | 27.9 in. |
Specifications sourced from us.dmgmori.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 105 mm bar capacity on both spindles is the largest in class, exceeding Mazak QT-250M (65 mm), Okuma LB3000 (80 mm), and Haas ST-20Y (51 mm)
- SmartSCALE direct measuring system eliminates encoder-based thermal growth compensation for true sub-6-micrometer positional accuracy
- 16% lower power consumption, 12% lower air usage, and 50% lower oil consumption versus the first-generation NLX 2500 reduce operating costs
- 828 Nm spindle torque (1,273 Nm with 12-in chuck) gives more cutting authority than the original for aggressive roughing in tough materials
- BMT turret at 12,000 RPM with 100 Nm driven tool torque provides milling capability that outperforms most competitors in this size class
- Redesigned from the ground up rather than an incremental update, addressing every competitive gap identified in the first generation
Limitations
- Starting at 65K for the 2nd Gen, it is the most expensive mid-size lathe option and 30-50% more than most competitors
- 4,000 RPM max spindle speed is unchanged from the original and trails high-speed lathes for small-diameter aluminum work
- DMG Mori service and parts costs remain the highest among major builders with no improvement in regional service consistency
- CELOS learning curve persists for operators transitioning from simpler control platforms
- Y-axis and sub-spindle options push configured price past 20K, making a fully loaded machine a major capital commitment
Best For
Frequently Asked Questions
01
The 2nd Generation starts around 65,000 in base configuration. Fully configured with BMT turret, Y-axis, sub-spindle, SmartSCALE, and automation prep, pricing reaches 20,000-40,000.
02
Bar capacity increased from 80 to 105 mm, SmartSCALE direct measuring replaced encoders, power consumption dropped 16%, and oil consumption dropped 50%. The turnMASTER spindle was also redesigned for higher torque.
03
SmartSCALE is DMG Mori’s direct measuring system that replaces encoder-based position feedback. It provides sub-6-micrometer positional accuracy without thermal growth compensation, holding tighter tolerances over temperature fluctuations.
04
A used 1st Gen at 0-120K delivers 80-90% of the capability at 40-60% of the cost. The 2nd Gen justifies its premium if you need the 105 mm bar capacity, SmartSCALE accuracy, or the operating cost reductions matter over your ownership period.
05
Yes. The BMT and VDI turret interfaces are the same, so existing tool holders and driven tools transfer directly. Programs written for the 1st Gen run on the 2nd Gen with minimal modification.
