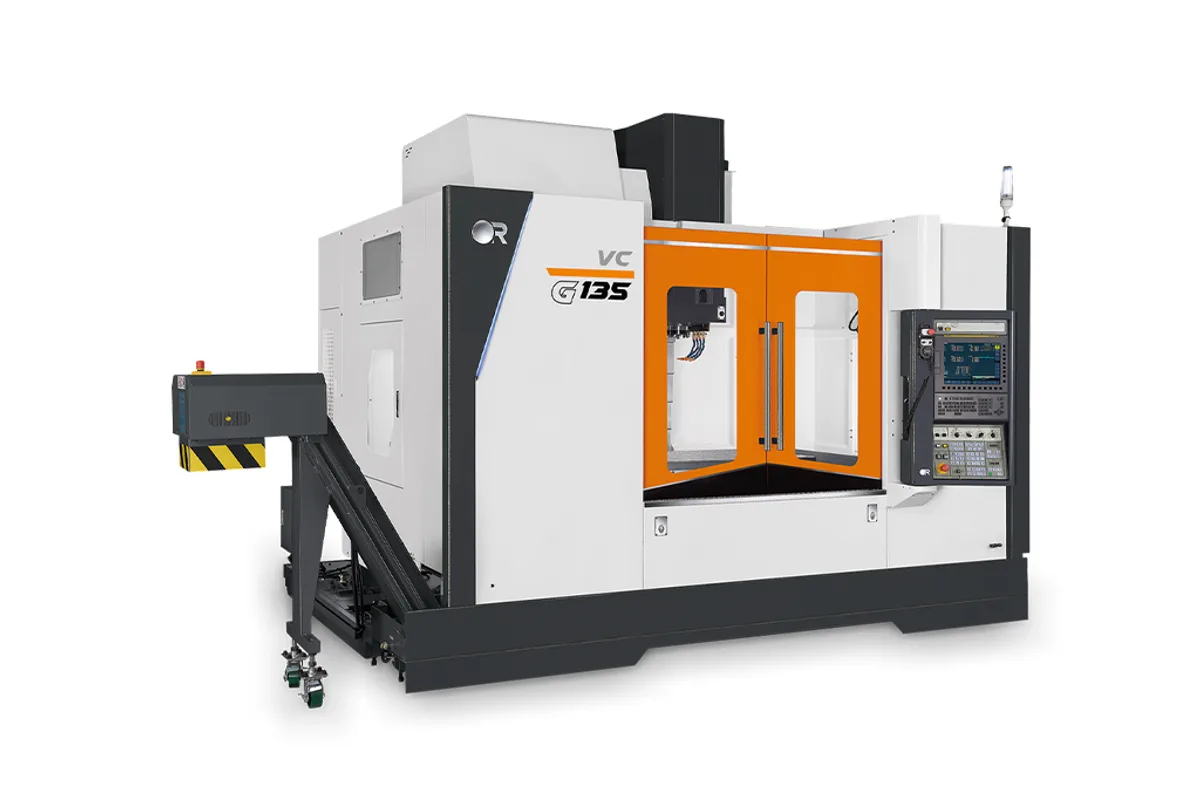

Victor Taichung Vcenter-G135
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-G135 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-G135 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,350 mm (53.14 in) of X travel and 700 mm (27.55 in) in both Y and Z, the Victor Taichung Vcenter-G135 is the middle size of the maker's box-way, 50-taper vertical machining centers. Its table is 1,400 x 700 mm (55.11 x 27.55 in) and is rated for 2,200 kg (4,850.16 lb).
The load rating tells the story. It is more than double what the linear-guide Vcenter-P136 carries on a table of the same size, and it comes from a different kind of structure: box slideways on all axes, Ø50mm ballscrews and 12,100 kg (26,675.90 lb) of machine. Mould bases, die shoes and steel weldments that would overload a lighter machine are within its range.
The spindle is the series unit, a gearhead BBT-50 at 6,000 rpm with a motor rated 15 / 18 kW (20 / 25 HP). Gearing gives the low-speed torque that large face mills and insert drills need. Tools up to 15 kg (33.06 lb) go in a 24-tool magazine, and 32 or 40 tools can be ordered.
A Z travel of 700 mm (27.55 in) is generous for a machine of this type and leaves room for deep boxes and tall fixtures. Screw chip removers and bottom guarding with flushing coolant are standard. A Fanuc 0i-MF Plus control with a 10.4 in screen runs the machine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,350 mm (53.14 in) |
| Y Axis Travel | 700 mm (27.55 in) |
| Z Axis Travel | 700 mm (27.55 in) |
| Table Size | 1,400 x 700 mm (55.11 x 27.55 in) |
| T-Slots | 7 x 18 x 100 mm |
| Max Table Load | 2,200 kg (4,850.16 lb) |
| Spindle Taper | BBT-50 |
| Spindle Motor Power | 15 / 18 kW (20 / 25 HP) |
| Max Spindle Speed | 6,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 15 kg (33.06 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 12,100 kg (26,675.90 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,200 kg (4,850.16 lb) table load on a 1,400 x 700 mm (55.11 x 27.55 in) table
- 700 mm (27.55 in) of Z travel
- Gearhead BBT-50 spindle for low-speed torque
- Box slideways for all axes with Ø50mm ballscrews
- Y travel equals the table depth
Limitations
- Top spindle speed is 6,000 rpm
- Motor rating of 15 / 18 kW (20 / 25 HP) is the same as on the smaller Vcenter-G105
- 24 tools unless a larger magazine is ordered
- Coolant through spindle is an option
Best For
Frequently Asked Questions
01
2,200 kg (4,850.16 lb). The table measures 1,400 x 700 mm (55.11 x 27.55 in) with 7 x 18 x 100 mm T-slots, and the machine weighs 12,100 kg (26,675.90 lb).
02
The Vcenter-G135 has a BBT-50 spindle at 6,000 rpm, a 2,200 kg (4,850.16 lb) table load and 15 kg (33.06 lb) tools. The Vcenter-P136 has a BBT-40 spindle at 12,000 rpm, a 1,000 kg (2,204.61 lb) table load and 7 kg (15.43 lb) tools.
03
1,350 mm (53.14 in) in X, 700 mm (27.55 in) in Y and 700 mm (27.55 in) in Z. Listed accuracy is 0.010 mm with a repeatability of 0.007 mm (±0.0035 mm).
04
The motor row lists 15 / 18 kW (20 / 25 HP), driving a gearhead BBT-50 spindle to a maximum of 6,000 rpm. A spindle oil cooler is standard on the series.
