Hyundai WIA F500D
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Rapid Traverse
Spindle Power
Overview
The Hyundai WIA F500D is a 500mm-class vertical machining center built on box-way construction for heavy-duty cutting of steel, cast iron, and difficult alloys in production and job shop environments. With a 1,050 x 500 mm table, 762 x 500 x 500 mm axis travels, and a 10,000 RPM No. 40 spindle delivering 22 kW of continuous cutting power, the F500D balances workpiece capacity and cutting capability for medium-to-heavy VMC applications. The box-way construction on all axes provides the vibration damping and load-bearing rigidity that differentiates the F500D from linear-rail VMCs in heavy-cut applications.
Hyundai WIA positions the F500D in the heavy-duty segment of the production VMC market, targeting manufacturers who regularly machine tough materials — hardened steel, ductile iron, stainless, and alloy steels — where linear guide VMCs struggle to maintain surface finish under sustained cutting forces. The Fanuc 0iMF Plus control is standard, offering familiar programming, broad CAM post processor availability, and a large global support ecosystem. A 30-tool arm-type ATC provides adequate tool capacity for most production part programs without requiring an expanded magazine.
The F500D's 45-degree slant-bed column design combined with box-way Y-axis guidance provides superior Y-axis rigidity compared to traditional vertical column configurations. Full enclosure design with programmable coolant and chip conveyor integration supports high-production environments where chip management is critical to cycle time and surface finish. The machine's large 1,050mm table accommodates long parts, multiple fixture setups, and tombstone-style multi-part fixtures for higher-volume production runs.
The F500D competes with the Mazak VCN-530C, DMG Mori CMX 600V, and Okuma Millac 44V in the heavy-duty production VMC segment. For shops machining tough materials in the medium-to-large VMC range who prefer box-way rigidity and Fanuc control at a competitive Korean-brand price, the F500D offers a well-proven production platform. New machine pricing typically falls between $120,000 and $200,000. Specs sourced from Hyundai WIA published data.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,050 x 500 mm (41.3 x 19.7 in) |
| X Y Z Travel | 762 x 500 x 500 mm (30.0 x 19.7 x 19.7 in) |
| Max Spindle Speed | 10,000 RPM |
| Spindle Taper | No. 40 (BT40 / CAT40) |
| Spindle Motor Power | 22/15 kW (10 min/continuous) (30/20 hp) |
| Tool Capacity | 30 tools |
| Rapid Traverse Rate | 36/36/30 m/min (X/Y/Z) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Guideway Type | Box ways (all axes) |
| CNC Control | Fanuc 0iMF Plus |
| Coolant System | Programmable 8-bar (116 PSI) standard |
| Machine Weight | Approx. 9,500 kg (20,944 lb) |
| X | 41.7 in |
| Y | 20.1 in |
Specifications sourced from machinetools.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Box-way construction on all axes provides superior rigidity and vibration damping for heavy-cut applications in steel, cast iron, and stainless that exceed the capacity of linear-rail VMCs
- 22 kW spindle power with 10,000 RPM provides versatility across both heavy roughing at low RPM and higher-speed finishing passes on the same machine
- 1,000 kg table load capacity accommodates large fixtures, tombstones, and heavy workpiece setups without overloading the guideway system
- Fanuc 0iMF Plus control offers familiar programming environment, wide CAM post availability, and a large global support and spare parts network
Limitations
- Box-way construction yields lower rapid traverse rates than linear-rail competitors — less critical in heavy-cut applications but a productivity factor in light-cut high-mix environments
- 30-tool ATC is sufficient for most production programs but may require careful tool planning on complex mold or aerospace programs with large tool libraries
- Hyundai WIA's VMC service network is less developed in some North American and European regions compared to Fanuc, Mazak, or Okuma distribution networks
Best For
Frequently Asked Questions
01
The F500D's D designation indicates the double-column or heavy-duty variant with box-way construction on all axes, providing greater rigidity and vibration damping than the standard F500's linear-rail configuration. The F500D is optimized for heavy cutting of tough materials, while the standard F500 prioritizes higher traverse speeds for lighter-cut, higher-mix production environments. Shops focused on steel and cast iron heavy cutting should select the F500D; shops prioritizing high-speed aluminum work may prefer the standard F500.
02
The F500D is optimized for heavy-cut applications in steel, cast iron, ductile iron, stainless steel, alloy steels, and die steels. Its box-way construction handles the sustained cutting forces these materials generate without deflection or chatter. It is also capable of aluminum machining, though shops primarily running aluminum may prefer a higher-spindle-speed linear-rail VMC optimized for high-speed aluminum cuts.
03
The F500D uses a No. 40 taper spindle compatible with both BT40 and CAT40 toolholding systems — the two most common 40-taper standards in North America and Asia. BBT40 dual-contact toolholding is supported as an option, providing higher rigidity and repeatability for demanding finishing applications. Shops should verify their existing toolholder inventory compatibility when transitioning to the F500D.
04
Yes. With Fanuc 0iMF Plus tool life management, part probing options, and full enclosure chip management, the F500D supports unattended and lights-out production for proven programs. Integration with bar feeders, pallet systems, and robotic part loading is possible through the machine's standard M-code and I/O interfaces. The machine's box-way construction and thermal stability support consistent dimensional accuracy across extended unattended production runs.
05
Both machines compete in the medium-large production VMC class with similar travel ranges. The Mazak VCN-530C runs the Mazatrol SmoothG control with conversational programming, while the F500D uses Fanuc 0iMF Plus — a key differentiator for shops with control preferences. The F500D's box-way construction provides greater rigidity for heavy cuts versus the Mazak's linear-rail guideways optimized for higher-speed production. Pricing for the F500D is typically competitive or lower than the Mazak equivalent.
Videos

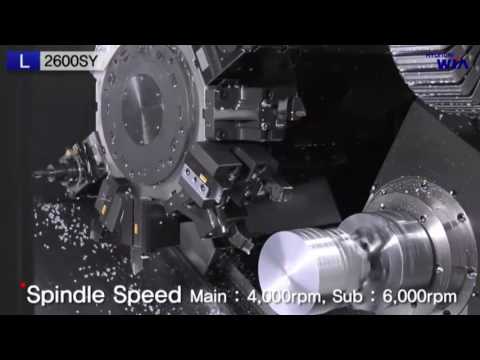

Hillary Machinery Inc
YuenShun Machinery
Alex Leadbetter

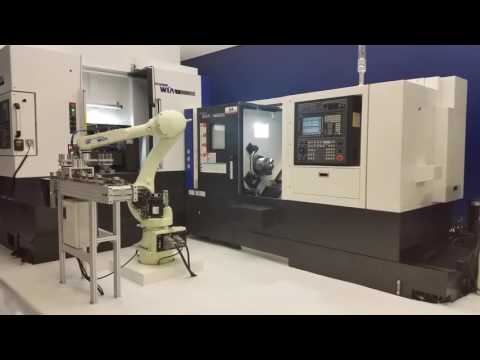

Hillary Machinery Inc
