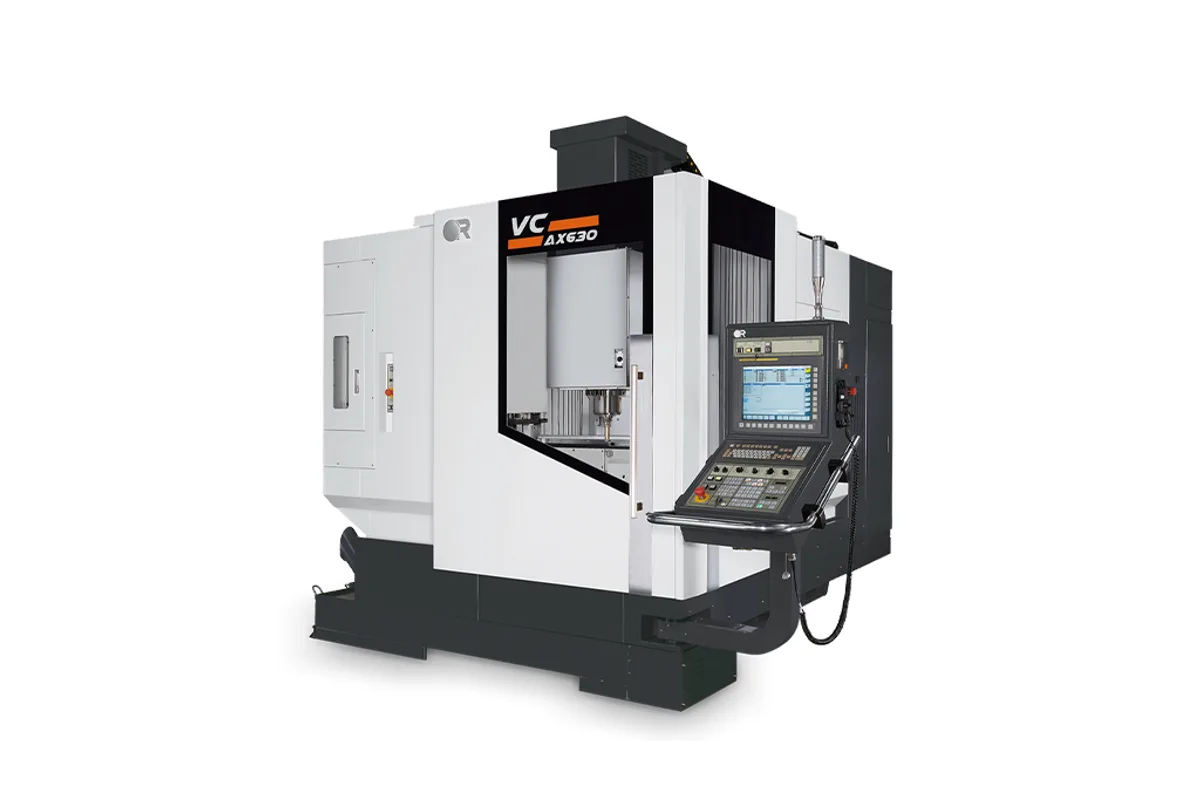

Victor Taichung Vcenter-AX630
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-AX630 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-AX630 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-AX630 is a 5-axis machining center with a Ø630 x 500 mm (Ø24.8 x 19.68 in) tilting rotary table rated for 300 kg (661.38 lb). The trunnion is a B+C arrangement fixed on the machine base, a layout the maker says improves the stiffness of the structure.
Because the table does not ride on a linear axis, all three linear motions belong to the spindle side. They travel 700 mm (27.55 in), 500 mm (19.68 in) and 500 mm (19.68 in) on roller-type linear guideways at a rapid feed of 48 m/min. The C axis turns 0 ~ 360 deg. The maker's table prints the B-axis range without a unit, so it is not repeated here.
As on the smaller Vcenter-AX380, the rotary axes are driven by a roller-cam mechanism without backlash, and the maker credits its higher rotating speed with shorter cycle times. This model weighs 9,000 kg (19,841.57 lb), half as much again as its sibling, for a table that is far larger.
The cutting package is a BBT-40 spindle at 12,000 rpm, 30 tools, and a motor of 11 / 15 / 18.5 kW (15 / 20 / 25 HP), or 7.5 / 11 / 15 kW (10 / 15 / 20 HP) in the CTS column. Options specific to this size include top covers and a tilting table with a hydraulic clamping device for automated workholding. Full simultaneous 5-axis control is an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 700 mm (27.55 in) |
| Y Axis Travel | 500 mm (19.68 in) |
| Z Axis Travel | 500 mm (19.68 in) |
| C Axis Range | 0 ~ 360 deg |
| Table Size | Ø630 x 500 mm (Ø24.8 x 19.68 in) |
| T-Slots | 5 x 18H7 x 100 mm |
| Max Table Load | 300 kg (661.38 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | Non CTS: 11 / 15 / 18.5 kW (15 / 20 / 25 HP); CTS: 7.5 / 11 / 15 kW (10 / 15 / 20 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 30 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 9,000 kg (19,841.57 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø630 x 500 mm (Ø24.8 x 19.68 in) table rated for 300 kg (661.38 lb)
- Trunnion fixed on the machine base for structural stiffness
- Rapid feed of 48 m/min on roller-type linear guideways
- Backlash-less roller-cam drive on the rotary axes
- 12,000 rpm BBT-40 spindle with 30 tools
Limitations
- Z travel is 500 mm (19.68 in), less than on the Vcenter-AX380
- Simultaneous 5-axis control and top covers are options
- Tools are limited to 7 kg (15.43 lb)
- The maker's table gives the B-axis range without a unit
Best For
Frequently Asked Questions
01
Ø630 x 500 mm (Ø24.8 x 19.68 in), with 5 x 18H7 x 100 mm T-slots and a maximum load of 300 kg (661.38 lb). The table tilts and rotates on a trunnion fixed to the machine base.
02
700 mm (27.55 in) in X, 500 mm (19.68 in) in Y and 500 mm (19.68 in) in Z. Victor Taichung quotes a rapid feed of 48 m/min for the three axes.
03
The option list names Heidenhain 640, Siemens 840D and Fanuc 31i-B5 Plus controls for 5-axis simultaneous control. Calibration tools for 5-axis accuracy are listed as options too.
04
The Vcenter-AX630 has a Ø630 x 500 mm (Ø24.8 x 19.68 in) table for 300 kg (661.38 lb) and weighs 9,000 kg (19,841.57 lb). The Vcenter-AX380 has a Ø380 mm (Ø14.96 in) table for 200 kg (440.92 lb) and weighs 6,000 kg (13,227.71 lb).
