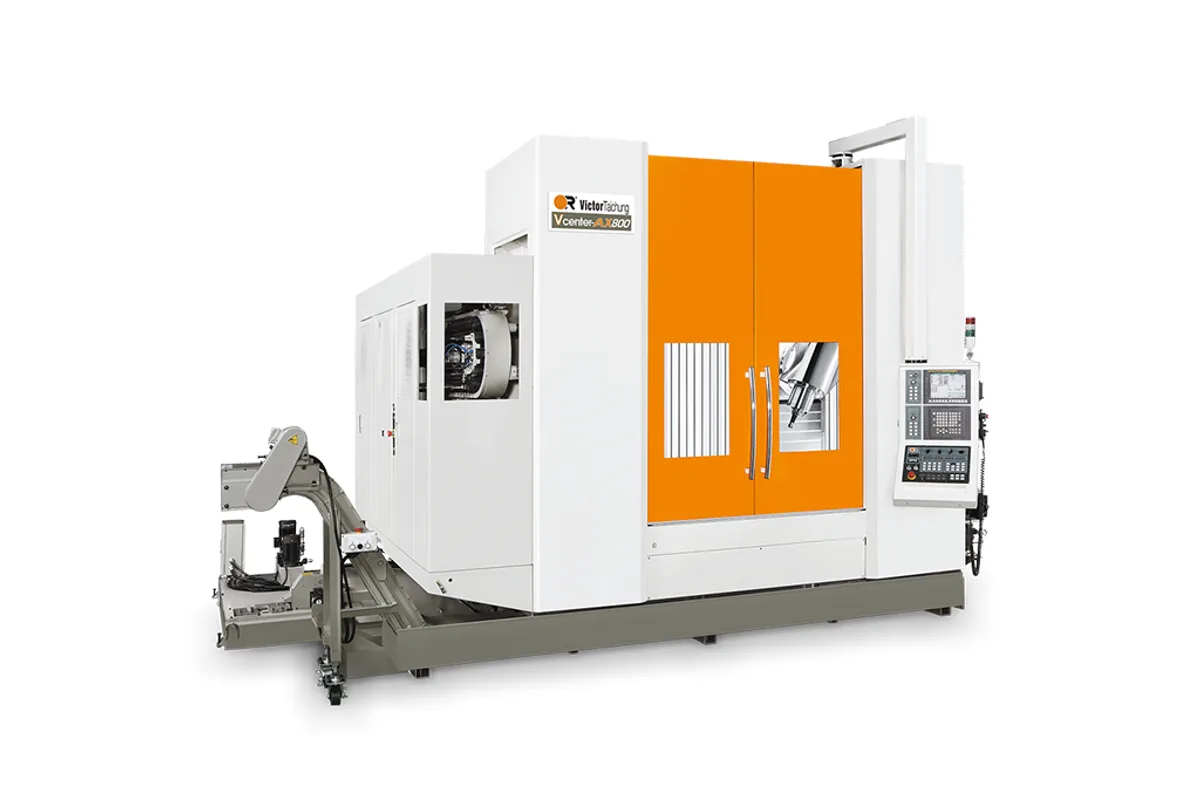

Victor Taichung Vcenter-AX800
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-AX800 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-AX800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-AX800 is a travelling-column 5-axis machining center with a swivel head, built for large parts. A rotary table sits next to a fixed table, the combined work area is Ø800 x 1,250 mm (Ø31.49 x 49.21 in), and the load limit is 1,200 kg (2,645.54 lb). The maker gives the largest part for 5-axis work as up to 1000mm in diameter.
The two rotary motions are split between head and table. The spindle head swivels on the B axis and locks on a Hirth coupling in 1° increments; the table turns on C through 0 ~ 360 deg and is clamped with 3433 Nm of torque. That is a positioning head, so the machine's strength is 4+1 axis cutting at fixed head angles, with the maker's roller-cam drive on both rotary axes.
Linear travel is 1,600 mm (62.99 in) in X and 700 mm (27.55 in) in Y. Z depends on the head: 600 mm (23.62 in) with the spindle vertical and 1,000 mm (39.37 in) with it horizontal. Used without the rotary table, the long X axis and the fixed table make it a travelling-column vertical machine for long parts.
The spindle is the strongest in the AX range, a BBT-40 at 15,000 rpm with 15 / 18.5 / 22 kW (20 / 25 / 30 HP), and the magazine holds 40 tools. The machine weighs 15,500 kg (34,171.60 lb). An air conditioner for the electrical cabinet is standard on this model.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (62.99 in) |
| Y Axis Travel | 700 mm (27.55 in) |
| Z Axis Travel | 600 mm (23.62 in) (V), 1,000 mm (39.37 in) (H) |
| C Axis Range | 0 ~ 360 deg |
| Table Size | Ø800 x 1,250 mm (Ø31.49 x 49.21 in) |
| T-Slots | 7 x 18H7 x 100 mm |
| Max Table Load | 1,200 kg (2,645.54 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | 15 / 18.5 / 22 kW (20 / 25 / 30 HP) |
| Max Spindle Speed | 15,000 rpm |
| Tool Capacity | 40 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 15,500 kg (34,171.60 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 5-axis machining of parts up to 1000mm in diameter, per the maker
- 1,600 mm (62.99 in) of X travel over a rotary table and a fixed table
- 15,000 rpm BBT-40 spindle with 15 / 18.5 / 22 kW (20 / 25 / 30 HP)
- C-axis table clamped at 3433 Nm
- 40-tool magazine and a 1,200 kg (2,645.54 lb) load limit
Limitations
- The B-axis head indexes in 1° increments on a Hirth coupling
- 40-taper spindle and a 7 kg (15.43 lb) tool limit on a large machine
- Vertical Z travel is 600 mm (23.62 in)
- 15,500 kg (34,171.60 lb) with a long footprint
Best For
Frequently Asked Questions
01
With a swivel head on the travelling column for the B axis and a rotary table for the C axis. The head locks on a Hirth coupling in 1° increments and the table clamps at 3433 Nm, which suits 4+1 axis machining.
02
1,600 mm (62.99 in) in X and 700 mm (27.55 in) in Y. Z travel is 600 mm (23.62 in) with the head vertical and 1,000 mm (39.37 in) with the head horizontal.
03
The work area row reads Ø800 x 1,250 mm (Ø31.49 x 49.21 in) and the maximum load is 1,200 kg (2,645.54 lb). Victor Taichung states 5-axis machining of parts up to 1000mm in diameter.
04
A BBT-40 spindle at 15,000 rpm with a motor rated 15 / 18.5 / 22 kW (20 / 25 / 30 HP). It draws from a 40-tool magazine, and HSK-A63 tooling is on the option list.
