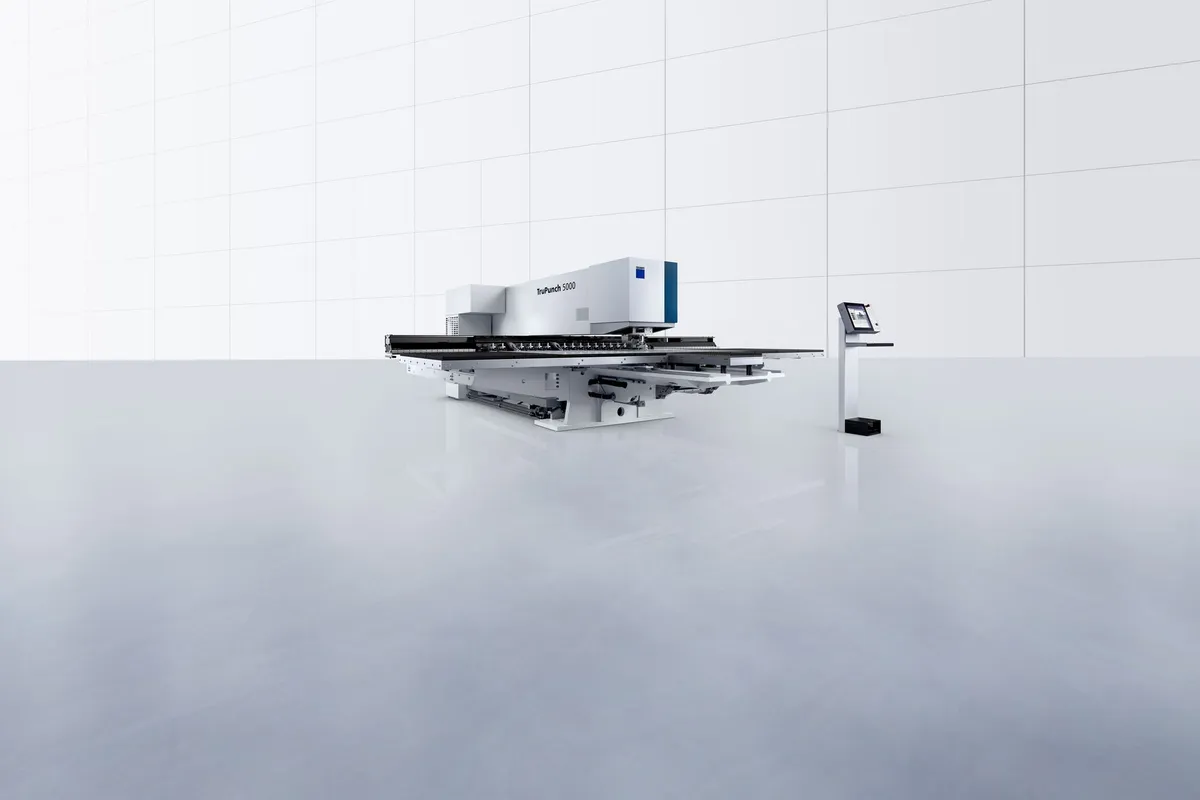

TRUMPF TruPunch 5000

$550,000 - $1,100,000 Updated 2026-03-16

Key Specifications

punching force

20 tons (200 kN)

working area

1500 x 3000 mm

hit rate max

900 hits/min (repositioning, small tools)

max sheet thickness mild steel

6.5 mm

max sheet thickness stainless

4 mm

max sheet thickness aluminum

8 mm

Overview

The TRUMPF TruPunch 5000 is TRUMPF's flagship CNC punch press, combining a high-speed servo drive capable of exceptional hit rates with a 1500 x 3000 mm working area and the unique option of an integrated laser module for combined punch and laser operations in a single setup. This is the machine for high-volume sheet metal fabricators who need maximum punching throughput and the flexibility to perform laser cutting operations — contours, marking, and engraving — without moving the part to a separate machine.

The TruPunch 5000's servo drive is optimized for maximum hit rate through aggressive stroke optimization: at minimum stroke with small tools, the machine achieves its highest rated performance. TRUMPF's Variable Punch Speed function tailors punch velocity to each material and tool combination, maximizing both speed and tool life simultaneously. The machine's die height can be programmed per tool, enabling precise control of forming depth for countersinks, embosses, and thread forms without manual die height adjustment.

The optional TruLaser module integrates a 3 kW fiber laser into the TruPunch 5000 platform, enabling laser cutting of contours that cannot be punched economically — large radii, complex curves, and small piercing features — without unstacking the sheet. This combination punch/laser approach achieves extremely high productivity on parts that traditionally required two machine setups. TRUMPF's TruTops Boost software automatically assigns features to punch or laser based on geometry and efficiency rules.

Automation integration is extensive: the TruPunch 5000 works with TRUMPF's SheetMaster Horizontal, Sort Master Flex for automatic part sorting, and TruStore tower systems for fully automated material flow. The machine is designed as a hub in a smart factory environment rather than a standalone press. Pricing for the TruPunch 5000 ranges from $550,000 to over $1,000,000 with the laser module and automation.

Full Specifications

Parameter	Value
Punching Force	20 tons (200 kN)
Working Area	1500 x 3000 mm
Hit Rate Max	900 hits/min (repositioning, small tools)
Max Sheet Thickness Mild Steel	6.5 mm
Max Sheet Thickness Stainless	4 mm
Max Sheet Thickness Aluminum	8 mm
Turret Stations	up to 20 (tool-size dependent)
Tool System	TRUMPF MultiTool compatible
Laser Module Option	3 kW fiber (TruLaser module)
Sheet Weight Max	250 kg
Drive Type	Servo electric, variable punch speed
Repositioning Speed	up to 120 m/min
Die Height Programming	Programmable per tool
CNC Control	TRUMPF TruControl / TruTops Boost
Automation Interfaces	SheetMaster, Sort Master Flex, TruStore
Width	7610 mm1
Depth	8171 mm1
Height	2072 mm1
Punching	1350 1/min
Marking	3000 1/min
Punching Mode X Axis	3050 mm
Punching Mode Y Axis	1550 mm
Maximum Sheet Thickness	8 mm
Maximum Workpiece Weight	280 kg
Maximum Punching Force	220 kN
Multitool Tool Changing Time	0.3 s
Number Of Tools Clamps	21 pieces / 4 pieces
Maximum Part Size Part Removal Flap Punching	500 mm x 500 mm
Maximum Part Size Fixed Chute Punching	80 mm x 50 mm
Average Power Input Of Active Auto Shutdown	0.5 kW
Average Power Input In Production	9.5 kW
1600 Strokes Min	Punch quickly and mark parts with 2,800 strokes/min: The TruPunch 5000 sets new standards for productivity.
Highest Part Quality	The active die ensures low-scratch parts.
Increased Productivity Due To Automation	From material handling to tool automation – the machine will do everything for you.
Fast Tool Change	The ToolMaster Linear for up to 90 tools guarantees a fast tool change.
Gentle Processing	Retractable clamps ensure the highest part quality and precision.

Specifications sourced from trumpf.com — verified 2026-03-28

Strengths & Limitations

Strengths

Highest hit rate in the TruPunch line with variable punch speed optimization for maximum throughput on thin materials
Optional integrated 3 kW fiber laser module enables combined punch/laser operation in a single setup, eliminating transfer time
Programmable die height per tool eliminates manual forming depth adjustment and enables rapid changeover between forming operations
Extensive automation interfaces support fully automated material handling including automatic part sorting, a critical differentiator for lights-out operation

Limitations

High capital cost — $550,000 to over $1M with laser module — requires very high machine utilization to achieve ROI
20-ton punching force is the same as the TruPunch 3000; the 5000's advantage is speed and automation, not force
Complexity of the combined punch/laser option requires more operator training and programming sophistication than a standalone punch press

Best For

High-volume fabricators producing large quantities of sheet metal parts with mixed punched and contour-cut features Smart factory environments where the TruPunch 5000 is the punching hub in a fully automated material flow system Shops with strong TruLaser investment who want to add punching capability with full TruTops Boost integration Electrical enclosure and control panel manufacturers producing high volumes of parts with extensive punch patterns and some laser-cut contours

Frequently Asked Questions

01 What does the optional TruLaser module add to the TruPunch 5000?

The TruLaser module integrates a 3 kW fiber laser into the punch press frame, allowing laser cutting of contours, large holes, and complex shapes in the same setup as punching. TruTops Boost automatically routes features to punch or laser based on geometry and economics. This eliminates the time and handling cost of moving parts between machines.

02 Is 900 hits/min achievable in real production?

The 900 hits/min figure applies to repositioning strokes with the smallest tools at minimum stroke depth. Real-world production hit rates on typical parts with mixed tool sizes and required sheet movements are 200-400 hits/min. The number demonstrates the machine's servo drive capability rather than representing a typical production rate.

03 What automation systems work with the TruPunch 5000?

TRUMPF's SheetMaster Horizontal handles automated sheet loading/unloading. The Sort Master Flex automatically sorts punched parts from the skeleton during the program. TruStore tower storage systems provide automated material presentation. Together these enable fully unattended production runs.

04 How does the TruPunch 5000 compare to the TruPunch 3000?

The 5000 offers higher peak hit rates, the optional laser module for combined punch/laser, programmable die heights, and more extensive automation integration. The 3000 is a capable and more affordable machine for shops that do not need the 5000's peak performance or hybrid capability.

05 What does a TruPunch 5000 cost?

Base pricing starts around $550,000 for the punch-only version. Adding the TruLaser module and SheetMaster automation typically brings the total to $800,000-$1,100,000. Used machines are relatively rare given the machine's high utilization in production environments.
