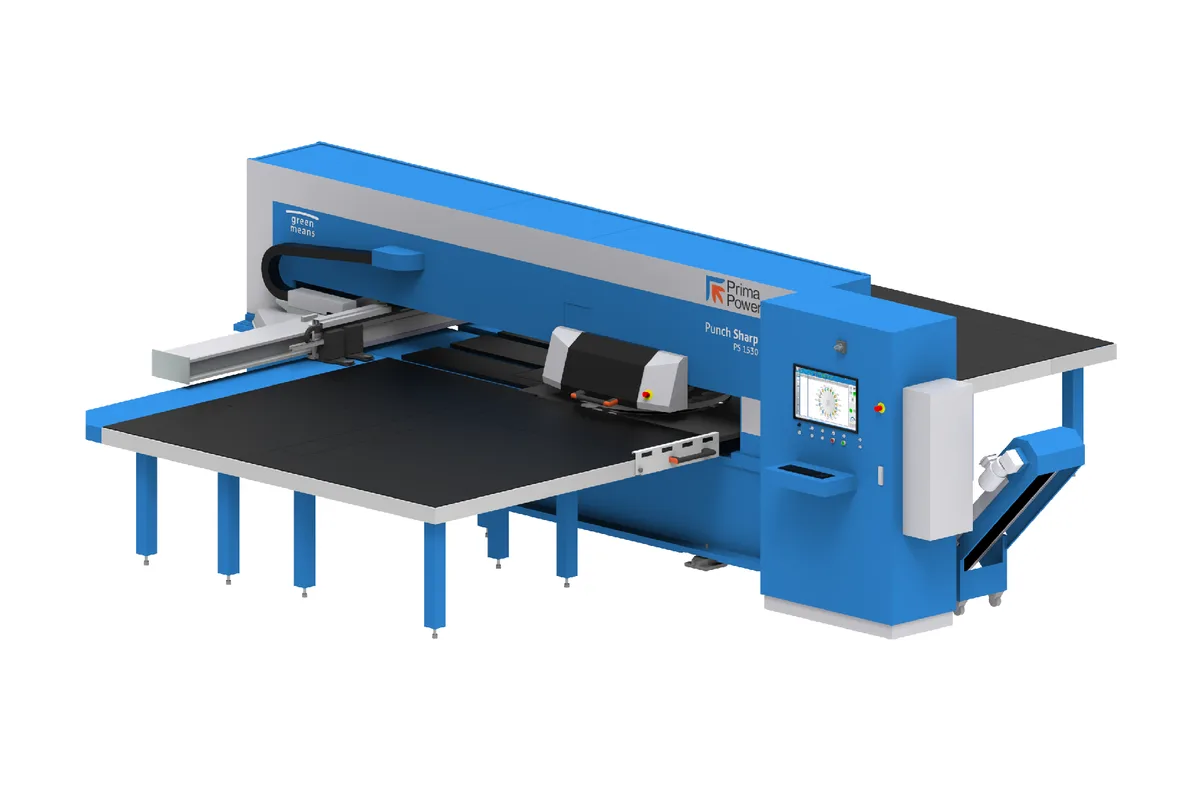

Prima Power Punch Sharp 1530
Image: primapower.com, Prima Power
Key Specifications
max sheet size
max sheet thickness
turret 16 station
turret 20 station
max positioning speed
index tool rotation speed
How much does the Prima Power Punch Sharp 1530 cost?
Price estimate
We do not have a price for the Prima Power Punch Sharp 1530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Prima Power Punch Sharp 1530 (PS1530) is the middle size of the Punch Sharp servo-electric turret punch press range, for sheet up to 3,074 mm x 1,565 mm (121.0 x 61.6 in) and 8 mm (0.31 in) thick.
The turret comes in two constructions, and the choice shapes how the machine is used. The 16 station turret holds up to 384 tools, 128 of them index tools. The 20 station turret holds up to 280 tools with 80 index tools. Note that the turret with fewer stations is the one with the higher tool count, so compare the two layouts against the tool list and not by station number. Index tools rotate at 133 rpm.
Ram force is ordered in steps: 170 kN, 200 kN or 230 kN, with 250 kN for the optional PS Dynamic performance. Maximum hit speed is 700 hpm, or 900 hpm with PS Dynamic. Prima Power puts it as 700 hpm or 23 tons with Pure Performance and 900 hpm or 25 tons with Dynamic. Maximum positioning speed is 108 m/min.
Several features serve forming. Punching speed and the upper and lower limits of the stroke are fully programmable, and a lifting die gives upforming capability. Lifting brushes protect sensitive surfaces. Clamps lock pneumatically from a central system with Programmable Clamp Setting (PCS). Machine control is through a touch screen panel.
Full Specifications
| Parameter | Value |
|---|---|
| Max Sheet Size | 3,074 mm x 1,565 mm (121.0 x 61.6 in) |
| Max Sheet Thickness | 8 mm (0.31 in) |
| Turret 16 Station | 384 tools, 128 index tools |
| Turret 20 Station | 280 tools, 80 index tools |
| Max Positioning Speed | 108 m/min |
| Index Tool Rotation Speed | 133 rpm |
| Max Ram Force | 170 kN, 200 kN or 230 kN; PS Dynamic: 250 kN |
| Max Hit Speed | 700 hpm; PS Dynamic: 900 hpm |
Specifications sourced from primapower.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Sheet up to 3,074 mm x 1,565 mm (121.0 x 61.6 in)
- 16 station turret with up to 384 tools and 128 index tools
- Ram force selectable at 170 kN, 200 kN or 230 kN, with 250 kN on PS Dynamic
- Lifting die for upforming and fully programmable stroke limits
- Programmable Clamp Setting (PCS) with pneumatic central clamp locking
Limitations
- Maximum positioning speed of 108 m/min
- Hit speed of 700 hpm unless PS Dynamic is ordered
- Index tool rotation of 133 rpm
- The 20 station turret is limited to 280 tools and 80 index tools
Best For
Frequently Asked Questions
01
Three models: PS1225, PS1530 and PS1540. The Punch Sharp 1530 takes a maximum sheet of 3,074 mm x 1,565 mm (121.0 x 61.6 in). The Punch Sharp 1540 takes 4,300 mm x 1,565 mm.
02
With the 16 station turret, up to 384 tools including 128 index tools. With the 20 station turret, up to 280 tools including 80 index tools. Multi-Tools and the rotating Auto-Index system account for the high counts.
03
Maximum ram force is 170 kN, 200 kN or 230 kN depending on what is ordered, and 250 kN with PS Dynamic. Maximum hit speed is 700 hpm, rising to 900 hpm with PS Dynamic.
04
Yes. Prima Power lists an accurate punching movement with forming and marking capability, a lifting die for upforming, and fully programmable punching speed and upper and lower stroke limits.
