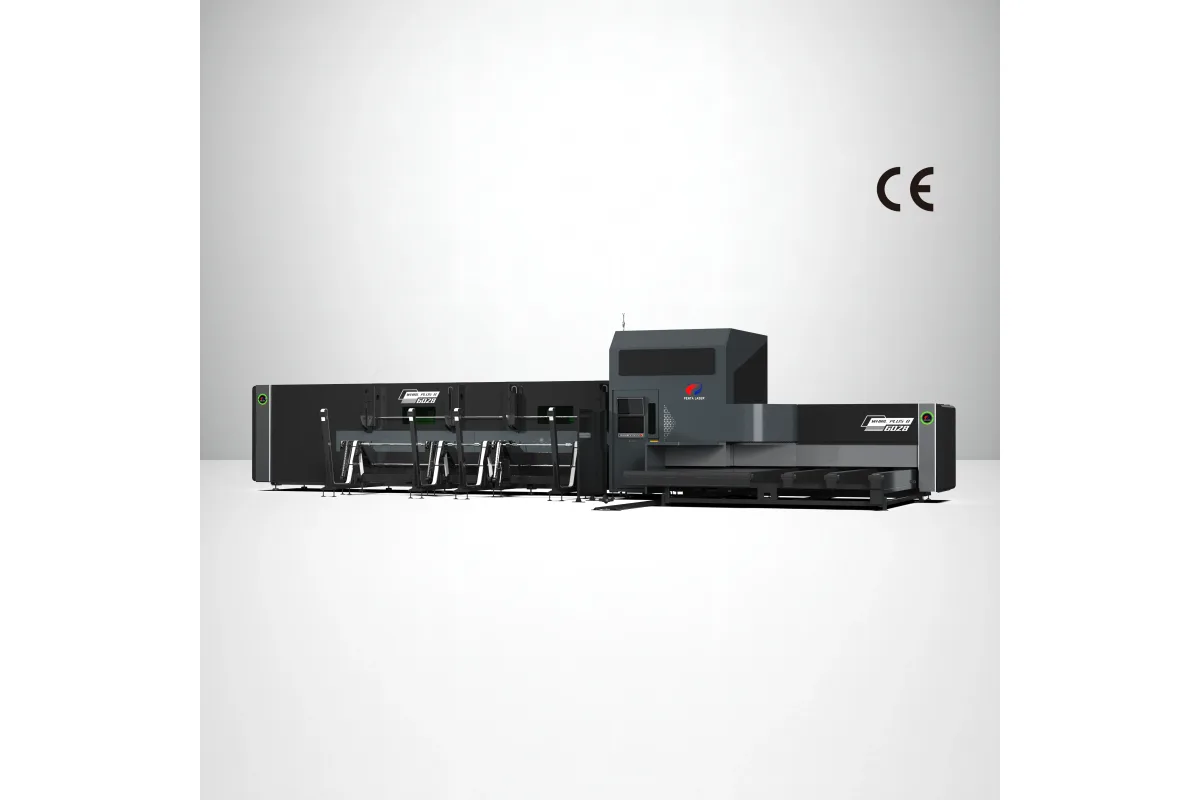

Penta Laser WPB 6025 / 9025
Image: pentalaser.com, Penta Laser
Key Specifications
laser power
max loading length
linear axis speed
rotational axis speed
profile range
max tube load
How much does the Penta Laser WPB 6025 / 9025 cost?
Price estimate
We do not have a price for the Penta Laser WPB 6025 / 9025 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Penta Laser WPB 6025 / 9025 is a dual-chuck laser tube cutting machine listed with 3 - 6 kW of laser power. It cuts round tube of Ф20 - 230 mm and square tube from 20 × 20 to 230 × 230 mm, with a maximum loading length of 6.5 m and 9.5 m as an option, which is what the two halves of the model name refer to.
It is a light, quick machine. The linear axis runs at 90 m/min and the rotational axis at 100 rpm, and the tube may weigh up to 45 kg/m. That bearing figure is the one to check first: thick-wall tube near the top of the profile range can exceed it well before the chuck opening is used up.
Penta Laser builds the WPB on a side-mounted bed. Servo-driven follow-up supports hold the tube on the loading side, and a servo-driven tilting plate takes the cut part off on the other. The centre chuck is retractable, which the maker lists as the means of cutting a shorter remnant. Finished parts leave on a conveyor chain or belt without stopping production, and scrap is conveyed out automatically.
Unloading length is 3.0 / 4.5 m, shorter than the loading length, so the longest finished part is shorter than the raw tube. The machine is fully enclosed with light curtains and a safety PLC and complies with Directive 2006/42/EC. Automatic loading from a bundle, weld seam recognition, the bevel module and UL compliance are options.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 3 - 6 kW |
| Max Loading Length | 6.5 m (9.5 m Optional) |
| Linear Axis Speed | 90 m/min |
| Rotational Axis Speed | 100 rpm |
| Profile Range | Ф20 - 230 mm; 20 × 20 - 230 × 230 mm |
| Max Tube Load | 45 kg/m |
| Chuck Control Type | Pneumatic Square Chuck |
| Unloading Length | 3.0 / 4.5 m |
| Support Type | Loading Floating Support / Unloading Flipping Device |
Specifications sourced from pentalaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Linear axis speed of 90 m/min and rotational axis speed of 100 rpm
- Retractable centre chuck in a twin-chuck structure for shorter remnants
- Servo-driven follow-up supports at loading and a servo-driven tilting plate at unloading
- Full enclosure, light curtains, safety door locks and safety PLC, with compliance to Directive 2006/42/EC
- Conveyor chain or belt unloading keeps material moving without stopping production
Limitations
- Tube bearing capacity is 45 kg/m; the WPB 6028 / 9028 carries 60 kg/m
- Unloading length is 3.0 / 4.5 m, less than the 6.5 m loading length
- Loading from a bundle is an option: semi-automatic or automatic loading is not part of the base machine
- Profile range ends at Ф230 mm and 230 × 230 mm
Best For
Frequently Asked Questions
01
The profile range is Ф20 - 230 mm for round tube and 20 × 20 - 230 × 230 mm for square tube. The maximum bearing capacity is 45 kg/m. Penta Laser also lists rectangular, oval and certain special-shaped tubes for the series.
02
The table covers both in one column. The maximum loading length is 6.5 m, with 9.5 m optional, and the unloading length is 3.0 / 4.5 m. The profile range and the 45 kg/m capacity are shared.
03
No. A semi-automatic loading system or an automatic loading system from a bundle is in the optional configurations, together with a weld seam recognition system, a bevel module and UL standards compliance.
04
The twin-chuck structure has a retractable centre chuck, which Penta Laser lists for shorter remnant cutting. During the processing cycle the residual waste is conveyed out by the equipment without manual intervention.
