Haas Automation Vertical Machining Centers

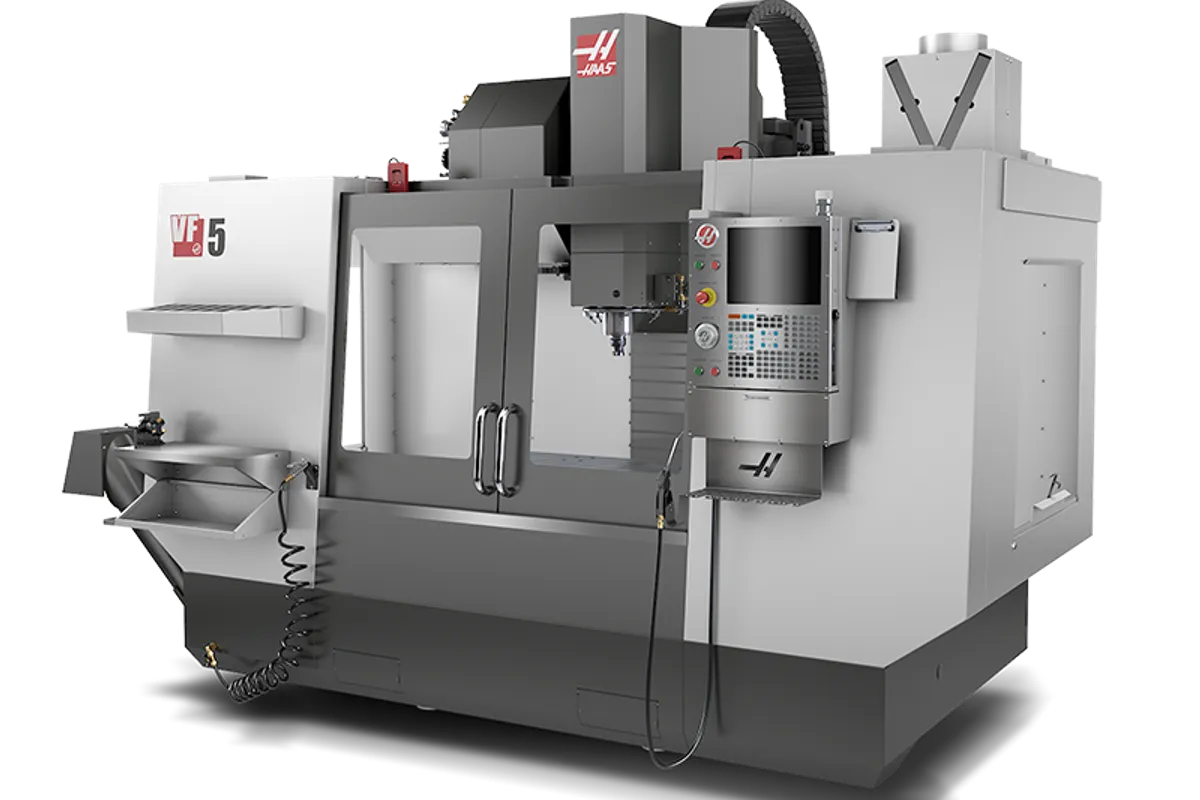

Haas VF-5/40

$121,000 - $155,000 Updated 2026-03-12

Key Specifications

X Travel

1,270 mm (50 in)

Y Travel

660 mm (26 in)

Z Travel

635 mm (25 in)

Max Spindle

8,100 RPM

Spindle Taper

CT40 / BT40 / HSK-A63

Tool Capacity

20-pocket carousel

Overview

The Haas VF-5/40 is a medium-frame 40-taper VMC with 1270 x 660 x 635 mm (50 x 26 x 25 in) of travel. That 50-inch X-axis is where the VF-5 earns its keep — it handles long parts that would require two setups on a VF-3 or VF-4, and the 660 mm (26 in) Y-travel provides depth that smaller VF models can't match.

The 1372 x 610 mm (54 x 24 in) table with 7 T-slots at 80 mm spacing supports up to 1,814 kg (4,000 lb) of evenly distributed load. That's a step up from the VF-3YT's 1,588 kg, and it means you can run heavy tombstone setups, large rotary tables, or multi-vise arrangements without worrying about exceeding the table's capacity.

Spindle specs are consistent with the rest of the 40-taper VF line: 22.4 kW (30 hp) inline direct-drive at 8,100 RPM with 122 Nm (90 ft-lbf) of torque at 2,000 RPM. The optional gearbox adds 339 Nm (250 ft-lbf) at 450 RPM. Rapids are 18.0 m/min (710 ipm) on all axes, matching the VF-3YT and reflecting the heavier moving mass of a machine this size.

At 5,761 kg (12,700 lb), the VF-5/40 weighs about the same as the VF-3YT, which makes sense since they share the same Y and Z travel dimensions. The primary difference is that extra 254 mm (10 in) of X-travel and the higher table load rating.

Base price starts around $121,000, which positions it between the VF-3YT at $100K and the 50-taper VF-5/50 at $160K. For shops that need 50 inches of X-travel but don't need the heavier cutting capability of a 50-taper spindle, the VF-5/40 is the right choice. The coolant tank holds 360 L (95 gal), which is larger than the 208 L on smaller VF models — a practical detail for longer unmanned runs. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,270 mm (50 in)
Y-Axis Travel	660 mm (26 in)
Z-Axis Travel	635 mm (25 in)
Spindle Nose To Table Max	742 mm (29.2 in)
Spindle Nose To Table Min	107 mm (4.2 in)
Max Spindle Speed	8,100 RPM
Spindle Taper	CT40 / BT40 / HSK-A63
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf) @ 2,000 RPM
Spindle Torque With Gearbox	339 Nm (250 ft-lbf) @ 450 RPM
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	20-pocket carousel
Tool To Tool	4.20 s
Chip To Chip	4.50 s
Max Tool Diameter	3.5 in
Max Tool Weight	12.0 lb
Table Size	1,372 x 610 mm (54 x 24 in)
Table Load Max	1,814 kg (4,000 lb)
T Slots	7 slots, 80 mm (3.15 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	18.0 m/min (710 ipm)
Rapid Traverse Y	18.0 m/min (710 ipm)
Rapid Traverse Z	18.0 m/min (710 ipm)
Max Thrust X	2550 lbf
Max Thrust Y	4100 lbf
Max Thrust Z	4100 lbf
Machine Weight	5,761 kg (12,700 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	50.00 in
Y Axis	26.00 in
Z Axis	25.00 in
Spindle Nose To Table	4.2 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	8100 rpm
Max Torque	90.0 ft-lbf @ 2000 rpm
Max Torque W Opt Gearbox	250 ft-lbf @ 450 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	54.0 in
Width	24.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	3.15 in
Number Of Std T Slots	7
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	710 ipm
Rapids On Y	710 ipm
Rapids On Z	710 ipm
Axis Motors	S.A.E
Tool Changer	S.A.E
Type	Carousel
Capacity	20
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	168.0 in x 101.5 in x 109.0 in
Export Pallet	164.0 in x 91.5 in x 101.0 in
Machine Weight	12700 lb
Domestic Pallet W 501 Smtc	168 in x 102 in x 122 in
Export Pallet W 501 Smtc	164 in x 92 in x 101 in
Weight W 501 Smtc	12700 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-5/40
Ha5c	VF-5/40
Ha5c T	VF-5/40
Ha5c2	VF-5/40
Ha5c2 T	VF-5/40
Ha5c3	VF-5/40
Ha5c3 T	VF-5/40
Ha5c4	VF-5/40
Ha5c4 T	VF-5/40
Ha5cs	VF-5/40
Hqda5	VF-5/40
Hrc160	VF-5/40
Hrc210	VF-5/40
Hrt160	VF-5/40
Hrt160 2	VF-5/40
Hrt160sp	VF-5/40
Hrt160ss	VF-5/40
Hrt200hs	VF-5/40
Hrt210	VF-5/40
Hrt210 2	VF-5/40
Hrt210ht	VF-5/40
Hrt210m	VF-5/40
Hrt210sp	VF-5/40
Hrt210ss	VF-5/40
Hrt210vm	VF-5/40
Hrt310	VF-5/40
Hrt310sp	VF-5/40
Hrt310ss	VF-5/40
Hrt450	VF-5/40
Hrta5	VF-5/40
Hrta6	VF-5/40
Lt260	VF-5/40
Lt350	VF-5/40
T5c	VF-5/40
T5c2	VF-5/40
T5c3	VF-5/40
T5c4	VF-5/40
Th240	VF-5/40
Th450	VF-5/40
Tr160	VF-5/40
Tr160 2	VF-5/40
Tr200y	VF-5/40
Tr210	VF-5/40
Tr310	VF-5/40
Trt100	VF-5/40
Trt160	VF-5/40
Trt210	VF-5/40
Trt310	VF-5/40
Trt70	VF-5/40

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,270 mm (50 in) X-travel handles long parts that require two setups on VF-3-class machines
1,814 kg (4,000 lb) table load is the highest in the 40-taper VF lineup, supporting heavy tombstone and rotary setups
360 L (95 gal) coolant tank is 73% larger than smaller VF models, reducing coolant maintenance frequency
Same proven 30 hp spindle and NGC control as the rest of the VF line — no retraining needed
5,761 kg (12,700 lb) machine weight provides good vibration damping for a 40-taper machine
Base price around $121K offers 50 inches of X-travel at a 40-taper budget

Limitations

18.0 m/min (710 ipm) rapids are 29% slower than VF-1/VF-2 models at 25.4 m/min
Standard 20-pocket carousel feels undersized for a machine this size — SMTC upgrade strongly recommended
8,100 RPM max spindle limits high-speed aluminum work on a machine commonly used for larger aluminum parts
Large footprint requires significant floor space — check shipping dimensions before ordering
40-taper tool clamping force may feel limiting for aggressive cuts in hard materials at this travel size

Best For

Job shops running long parts up to 1270 mm (50 in) that need single-setup machining Aerospace shops machining long aluminum extrusions and structural components Multi-vise production setups taking advantage of the 1372 mm table length Tombstone and fixture-plate work requiring 1,814 kg table capacity Shops stepping up from VF-3-class machines that need more X-travel Mold base work where extended X and Y travel reduce the need for repositioning

Frequently Asked Questions

01 What does a new Haas VF-5/40 cost?

Base price starts around $121,000. With SMTC upgrade, through-spindle coolant, probing, and other common options, expect $140,000-$155,000. The 50-taper VF-5/50 starts around $160,000 if you need more torque.

02 What's the difference between the VF-5/40 and VF-5/50?

The VF-5/50 swaps the 40-taper inline direct-drive spindle for a 50-taper 2-speed gearbox spindle at 7,500 RPM with 460 Nm of torque. It weighs about 1,600 kg more and costs roughly $39,000 more. Choose the /50 for heavy steel and cast iron work, the /40 for aluminum and general-purpose machining.

03 Should I get the VF-5/40 or VF-3YT?

Both have the same Y and Z travel (660 x 635 mm) and table size (1372 x 610 mm). The VF-5/40 adds 254 mm (10 in) of X-travel and 226 kg more table capacity. It costs about $21K more. If you need the extra X-travel, it's worth it. Otherwise, save the money with the VF-3YT.

04 Is the carousel tool changer adequate for the VF-5/40?

For simple job shop work with 10-15 tools, the 20-pocket carousel works fine. For production work or complex parts needing 20+ tools, upgrade to the SMTC. The 30+1 SMTC also provides faster tool changes at 2.8 sec tool-to-tool versus 4.2 sec.

05 What's the floor space requirement?

Shipping dimensions are approximately 427 x 258 x 277 cm. You'll need additional clearance for the control panel, chip conveyor, and service access. Plan for at least 5.5 x 4.0 meters of usable floor space.
