TOS Kuřim SKDY-E

Q: How much does the TOS Kuřim SKDY-E cost?

The price estimate for the TOS Kuřim SKDY-E is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/tos-kurim-skdy-e#price; the request is passed to TOS Kuřim or an authorised dealer.

Specs verified 2026-10-04 · tos-kurim.cz Updated 2026-10-04

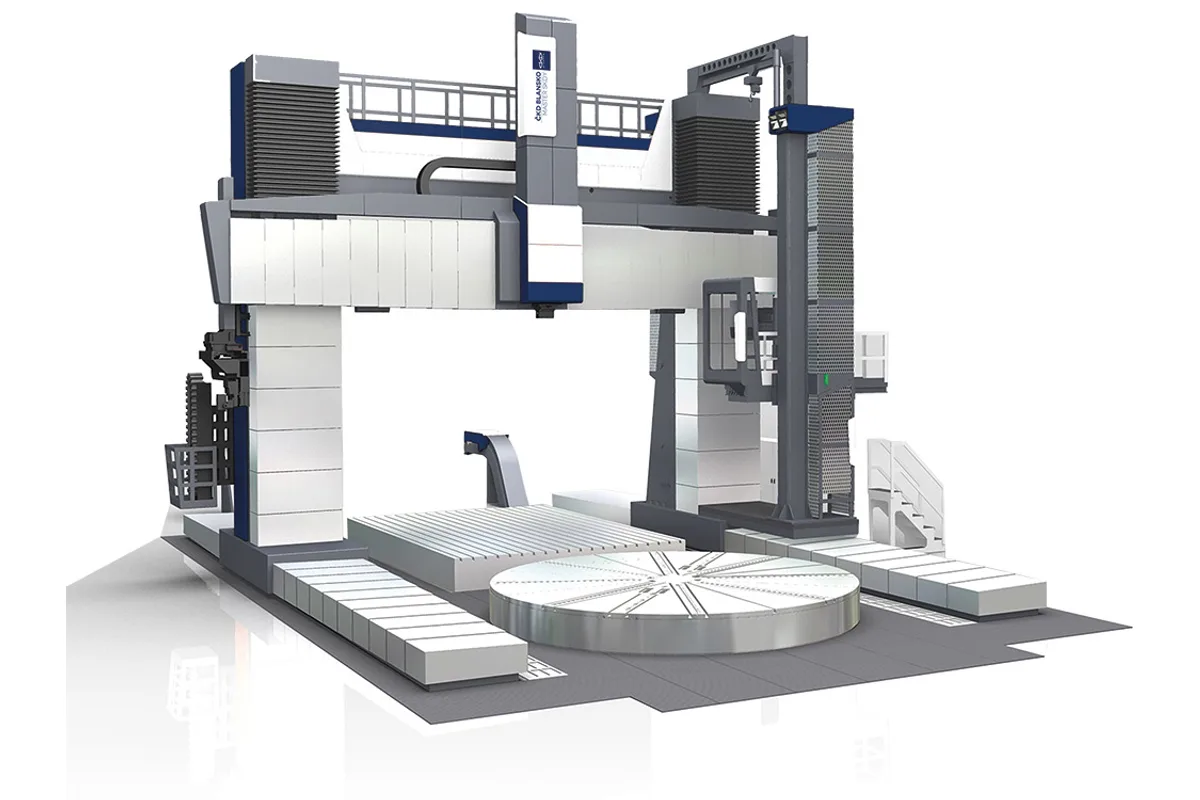

Image: tos-kurim.cz, TOS Kuřim

Key Specifications

clamping plate diameter

5,000/6,300/8,000 mm (196.9/248.0/315.0 in)

max turning diameter

5,600 - 10,000 mm (220.5 - 393.7 in)

machining height

4,000/5,000/6,000 mm (157.5/196.9/236.2 in)

max workpiece weight

80,000 - 320,000 kg (176,367 - 705,467 lb)

clamping plate speed

100 - 25 rpm

x axis travel

6,000 - 11,000 mm (236.2 - 433.1 in)

How much does the TOS Kuřim SKDY-E cost?

Price estimate

Uncertain

We do not have a price for the TOS Kuřim SKDY-E that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The TOS Kuřim SKDY-E joins the two largest things in the catalogue: a vertical lathe for workpieces of 80,000 - 320,000 kg (176,367 - 705,467 lb) and a moving gantry with 4,500 - 6,500 mm (177.2 - 255.9 in) of Y travel above it.

Parts of this mass are set up once if at all possible. Moving a three-hundred-ton casing between a lathe and a milling machine costs days and risks the datum. The SKDY-E answers that by turning, milling, drilling and grinding in one clamping, with the plate serving as a rotary axis when it is not a lathe spindle. Tool holders and milling heads are both exchanged automatically.

Capacities follow the E class. Plates are 5,000/6,300/8,000 mm (196.9/248.0/315.0 in), machining diameter 5,600 - 10,000 mm (220.5 - 393.7 in) and machining height 4,000/5,000/6,000 mm (157.5/196.9/236.2 in). The plate turns at 100 - 25 rpm. Cutting force is 100 kN.

The axes are long. X is 6,000 - 11,000 mm (236.2 - 433.1 in), the ram extends 2,500/3,200 mm (98.4/126.0 in) and the cross-rail travels 2,800 - 4,800 mm (110.2 - 189.0 in). Guideways on Z, X, Y and W are all hydrostatic. Ram section is 340 x 340/400 x 400 mm (13.4 x 13.4/15.7 x 15.7 in). Spindle speed and power for milling are not in the SKDY table, so they need to be specified with the heads.

Full Specifications

Parameter	Value
Clamping Plate Diameter	5,000/6,300/8,000 mm (196.9/248.0/315.0 in)
Max Turning Diameter	5,600 - 10,000 mm (220.5 - 393.7 in)
Machining Height	4,000/5,000/6,000 mm (157.5/196.9/236.2 in)
Max Workpiece Weight	80,000 - 320,000 kg (176,367 - 705,467 lb)
Clamping Plate Speed	100 - 25 rpm
X Axis Travel	6,000 - 11,000 mm (236.2 - 433.1 in)
Y Axis Travel	4,500 - 6,500 mm (177.2 - 255.9 in)
Z Axis Travel Ram	2,500/3,200 mm (98.4/126.0 in)
W Axis Travel Cross Rail	2,800 - 4,800 mm (110.2 - 189.0 in)
Ram Cross Section	340 x 340/400 x 400 mm (13.4 x 13.4/15.7 x 15.7 in)
Cutting Force	100 kN
Z Axis Guideways	hydrostatic
X Y W Axis Guideways	hydrostatic

Specifications sourced from tos-kurim.cz — verified 2026-10-04

Strengths & Limitations

Strengths

Workpieces of 80,000 - 320,000 kg (176,367 - 705,467 lb) turned and milled in one clamping
Y travel of 4,500 - 6,500 mm (177.2 - 255.9 in)
Hydrostatic guideways on Z and on X, Y and W
Machining diameter up to 10,000 mm and height of 4,000/5,000/6,000 mm (157.5/196.9/236.2 in)
Automatic exchange of tool holders and milling heads

Limitations

Plate speed of 100 - 25 rpm
No milling spindle speed or power is printed for the model
Smallest plate is 5,000 mm; smaller work belongs on the SKDY-D with plates of 3,000/4,000/5,000 mm (118.1/157.5/196.9 in)
Foundation, crane and hydrostatic services are left to the project stage

Best For

One-setup machining of very heavy rings, casings and rotor parts Parts up to 6,000 mm tall and 10,000 mm in diameter Off-centre milling and drilling across 4,500 - 6,500 mm (177.2 - 255.9 in) of Y

Frequently Asked Questions

01 What is the capacity of the SKDY-E?

Machining diameter 5,600 - 10,000 mm (220.5 - 393.7 in), machining height 4,000/5,000/6,000 mm (157.5/196.9/236.2 in) and workpiece weight 80,000 - 320,000 kg (176,367 - 705,467 lb), on clamping plates of 5,000/6,300/8,000 mm (196.9/248.0/315.0 in).

02 How does the SKDY-E differ from the SKD-E?

It adds a gantry axis. The SKD-E has no Y row, while this machine lists 4,500 - 6,500 mm (177.2 - 255.9 in) of Y travel. The SKD-E exchanges milling heads semi-automatically; here the exchange is automatic. Plates, heights, weights, speeds and the 100 kN figure are the same in both tables.

03 What are the axis travels of the SKDY-E?

X 6,000 - 11,000 mm (236.2 - 433.1 in), Y 4,500 - 6,500 mm (177.2 - 255.9 in), ram extension in Z 2,500/3,200 mm (98.4/126.0 in) and cross-rail stroke in W 2,800 - 4,800 mm (110.2 - 189.0 in).

04 Is the SKDY-E a lathe or a machining centre?

The catalogue files it under vertical lathes and gives lathe figures: plate diameter, plate rpm and a cutting force in kN. The moving gantry, Y axis and automatic milling head exchange give it a gantry mill's motions. For milling-first work the catalogue's FRUF-C 300-800 lists 100/113 kW (134/152 hp) of drive power.
