TOS Kuřim SKD-D

Q: How much does the TOS Kuřim SKD-D cost?

The price estimate for the TOS Kuřim SKD-D is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/tos-kurim-skd-d#price; the request is passed to TOS Kuřim or an authorised dealer.

Specs verified 2026-10-04 · tos-kurim.cz Updated 2026-10-04

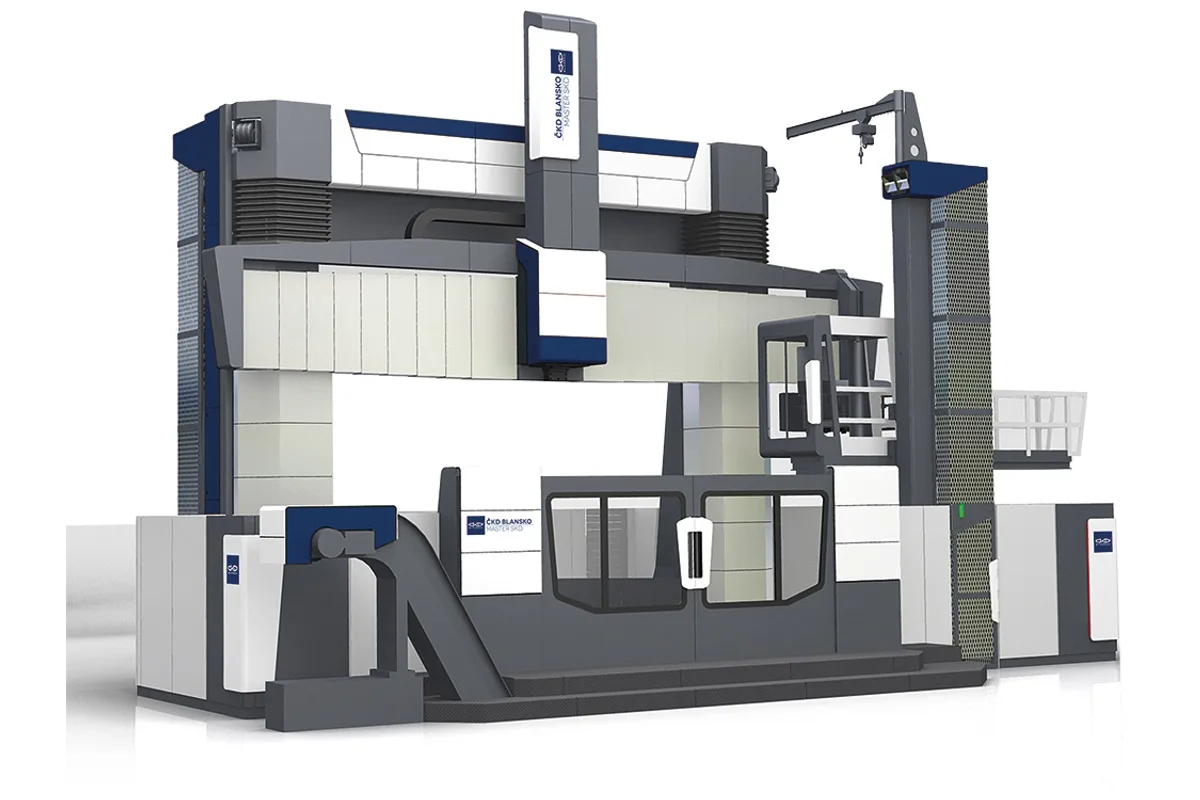

Image: tos-kurim.cz, TOS Kuřim

Key Specifications

clamping plate diameter

4,000/5,000 mm (157.5/196.9 in)

max turning diameter

6,000 mm (236.2 in)

machining height

2,000/2,800 mm (78.7/110.2 in)

max workpiece weight

100,000 kg (220,459 lb)

clamping plate speed

125 - 60 rpm

x axis travel

3,000 - 6,800 mm (118.1 - 267.7 in)

How much does the TOS Kuřim SKD-D cost?

Price estimate

Uncertain

We do not have a price for the TOS Kuřim SKD-D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The TOS Kuřim SKD-D is a large vertical lathe with a movable cross-rail, built around a clamping plate of 4,000/5,000 mm (157.5/196.9 in) and a maximum machining diameter of 6,000 mm (236.2 in). It takes workpieces of 100,000 kg (220,459 lb).

D is the lighter of the two SKD classes, and the guideway rows show how it is built. The ram's Z axis runs on sliding ways. X and W, the support travel and the cross-rail stroke, run on linear profile guides. The cutting figure, which the catalogue heads "cutting power" and gives in kN, is 40 kN. On the SKD-E every one of those axes is hydrostatic and the figure is 100 kN.

Machining height is 2,000/2,800 mm (78.7/110.2 in). The cross-rail moves 1,500/2,000 mm (59.1/78.7 in) to suit the part, and the ram, 340 x 340 mm (13.4 x 13.4 in) in section, extends 2,000/2,500 mm (78.7/98.4 in). Support travel in X is 3,000 - 6,800 mm (118.1 - 267.7 in), enough for the tool to cross the plate centre and work both inside and outside diameters.

Plate speed is printed as 125 - 60 rpm. It is written from high to low, and the likely reading is that the top speed depends on the plate size ordered; ask which figure goes with which plate. Beyond turning, the maker lists a multifunctional design with milling and grinding function and a ram with a built-in milling spindle as an option. Tool holders are exchanged automatically. Milling heads on the SKD are exchanged semi-automatically, which the SKDY and SKJ lists state as automatic.

Full Specifications

Parameter	Value
Clamping Plate Diameter	4,000/5,000 mm (157.5/196.9 in)
Max Turning Diameter	6,000 mm (236.2 in)
Machining Height	2,000/2,800 mm (78.7/110.2 in)
Max Workpiece Weight	100,000 kg (220,459 lb)
Clamping Plate Speed	125 - 60 rpm
X Axis Travel	3,000 - 6,800 mm (118.1 - 267.7 in)
Z Axis Travel Ram	2,000/2,500 mm (78.7/98.4 in)
W Axis Travel Cross Rail	1,500/2,000 mm (59.1/78.7 in)
Ram Cross Section	340 x 340 mm (13.4 x 13.4 in)
Cutting Force	40 kN
Z Axis Guideways	sliding
X W Axis Guideways	linear profile

Specifications sourced from tos-kurim.cz — verified 2026-10-04

Strengths & Limitations

Strengths

Maximum machining diameter of 6,000 mm (236.2 in) on a 4,000/5,000 mm (157.5/196.9 in) plate
Workpiece weight of 100,000 kg (220,459 lb)
Plate speed listed as 125 - 60 rpm, the highest of the two SKD classes
Milling and grinding functions and an optional ram with built-in milling spindle
Linear profile guideways on the X and W axes

Limitations

Cutting force of 40 kN against 100 kN on the SKD-E
Machining height tops out at 2,800 mm; the SKD-E lists 4,000/5,000/6,000 mm (157.5/196.9/236.2 in)
Milling heads are exchanged semi-automatically
No Y axis: off-centre milling needs the SKDY-D with its 3,000/5,000 mm (118.1/196.9 in) of Y travel

Best For

Rings, flanges and casings up to 6,000 mm (236.2 in) in diameter Turning of parts up to 100,000 kg (220,459 lb) Mostly turned parts with some milling or grinding in the same clamping Parts no taller than 2,800 mm

Frequently Asked Questions

01 What size of workpiece does the SKD-D take?

Up to 6,000 mm (236.2 in) in machining diameter and 2,000/2,800 mm (78.7/110.2 in) in height, at a workpiece weight of 100,000 kg (220,459 lb). The clamping plate is 4,000/5,000 mm (157.5/196.9 in) in diameter.

02 What is the difference between the SKD-D and the SKD-E?

Size and construction. The SKD-E has plates of 5,000/6,300/8,000 mm (196.9/248.0/315.0 in), machines 6,500 - 10,000 mm (255.9 - 393.7 in) and carries 80,000 - 320,000 kg (176,367 - 705,467 lb) on hydrostatic guideways. The D class uses sliding and linear profile guideways and lists 40 kN where the SKD-E lists 100 kN.

03 Can the SKD-D mill as well as turn?

Yes, within limits the catalogue leaves open. The series is described as multifunctional with milling and grinding function, and a ram with a built-in milling spindle is an option. Milling heads are exchanged semi-automatically. There is no Y axis in the SKD table, so milling positions come from the X travel and the rotation of the plate.

04 How fast does the clamping plate of the SKD-D turn?

The row reads 125 - 60 rpm. The catalogue does not explain the descending range. Since the plate comes in two diameters, the probable meaning is a top speed that falls as the plate gets larger, and the quotation should state it.
