Thielenhaus PowerCUBE 400

Q: How much does the Thielenhaus PowerCUBE 400 cost?

The price estimate for the Thielenhaus PowerCUBE 400 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/thielenhaus-powercube-400#price; the request is passed to Thielenhaus Technologies or an authorised dealer.

Specs verified 2026-10-05 · thielenhaus.com Updated 2026-10-05

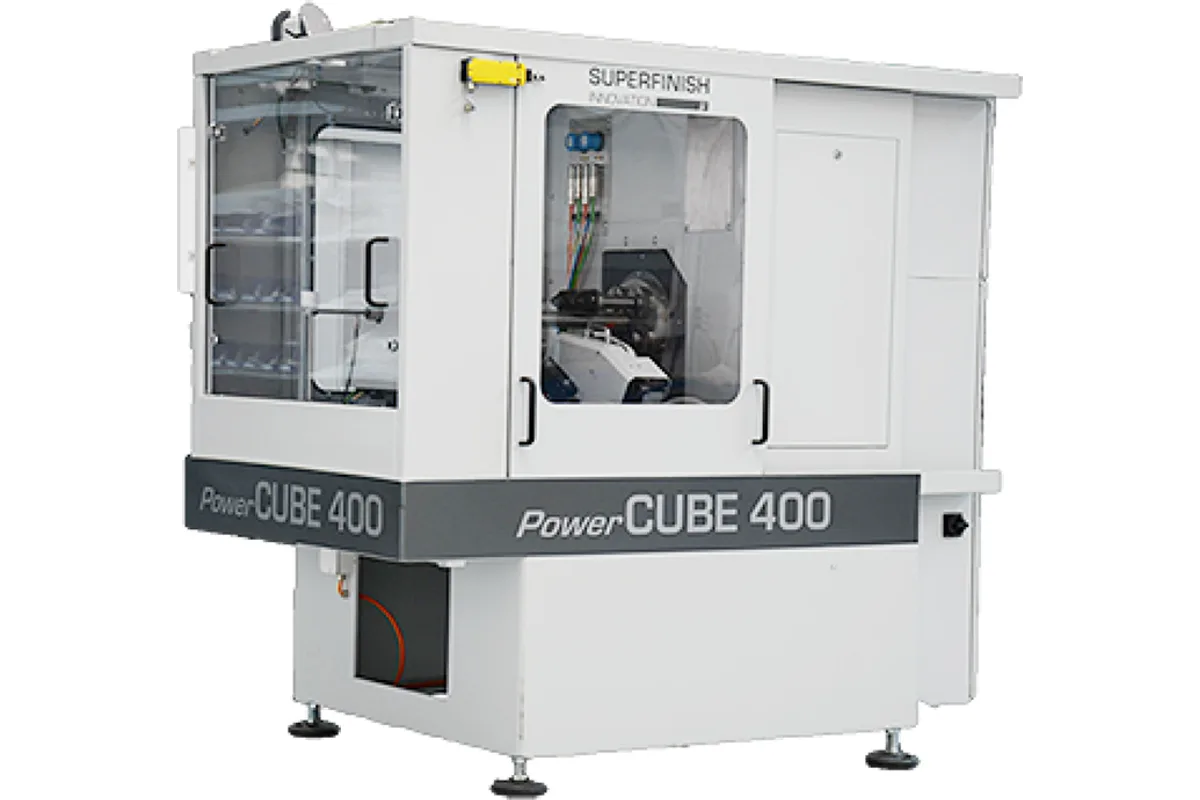

Thielenhaus PowerCUBE 400 multi-spindle belt finishing machine

Image: thielenhaus.com, Thielenhaus Technologies

Key Specifications

loading unloading

3-axis handling with double gripper and special pneumatic loader/unloader

programmable longitudinal axis travel

max. 400 mm (15.7 in)

flushing trolley filter cartridge

1 – 30 μ

unit type

SL50, KG50, SL50-100M

units per station

max. 2 with SL50, max. 3 with KG50

spindle speed

10 – 3,000 rpm

How much does the Thielenhaus PowerCUBE 400 cost?

Price estimate

Uncertain

We do not have a price for the Thielenhaus PowerCUBE 400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Thielenhaus PowerCUBE 400 is a compact multi-spindle belt finishing machine for shafts up to 400 mm (15.7 in) long and 4 – 50 mm (0.16 – 2.0 in) in diameter. It is built with 4 or 6 workpiece spindles, and Thielenhaus lists the machine at approx. 1,500 kg (3,307 lb).

The table calls it a plunge machine with a programmable longitudinal axis, and gives that axis a travel of max. 400 mm (15.7 in). In plunge finishing the tool is as wide as the seat, which is how the product page puts it for grooving: tool = seat width. The finishing units are Thielenhaus types SL50, KG50 or SL50-100M, with max. 2 per station for the SL50 and max. 3 for the KG50.

Spindle speed is 10 – 3,000 rpm. The control holds 99 programs with 10 freely programmable zones per spindle. That covers a family of similar shafts, though it is far less than the 500 programs and 50 zones of the CUBE evo. Loading is automated in the listed basic configuration, by a 3-axis handling with double gripper and a special pneumatic loader/unloader.

Installation needs are modest: 3 x 400 V at 50/60 Hz and 6 A, plus 1 x 6 bar of compressed air. A flushing trolley with filter cartridge belongs to the basic configuration. For the PowerCUBE the product page also mentions double loading, a loading gantry, a precoat filter, a measuring station and a cleaning station. It does not say which of them are extras, so ask.

Full Specifications

Parameter	Value
Loading Unloading	3-axis handling with double gripper and special pneumatic loader/unloader
Programmable Longitudinal Axis Travel	max. 400 mm (15.7 in)
Flushing Trolley Filter Cartridge	1 – 30 μ
Unit Type	SL50, KG50, SL50-100M
Units per Station	max. 2 with SL50, max. 3 with KG50
Spindle Speed	10 – 3,000 rpm
Number of Spindles	4 or 6
Freely Programmable Zones	10 per spindle
Number of Programs	99
Max Workpiece Length	400 mm (15.7 in)
Workpiece Diameter	4 – 50 mm (0.16 – 2.0 in)
Machine Weight	approx. 1,500 kg (3,307 lb)
Power Requirement	3 x 400 V, 50/60 Hz, 6 A (L1, L2, L3, N, PE)
Compressed Air	1 x 6 bar

Specifications sourced from thielenhaus.com — verified 2026-10-05

Strengths & Limitations

Strengths

4 or 6 workpiece spindles in a machine of approx. 1,500 kg (3,307 lb)
3-axis handling with double gripper and pneumatic loader/unloader in the basic configuration
Programmable longitudinal axis with max. 400 mm (15.7 in) of travel
Each station takes max. 2 SL50 units or max. 3 KG50 units
Runs on 3 x 400 V at 6 A and 1 x 6 bar of compressed air

Limitations

Workpiece diameter is limited to 4 – 50 mm and workpiece length to 400 mm
99 programs and 10 zones per spindle, against 500 programs and 50 zones on the CUBE evo
Spindle speed tops out at 3,000 rpm; the CUBE evo runs to 6,000 rpm
Unit types are restricted to SL50, KG50 and SL50-100M

Best For

Small shafts up to 50 mm diameter in series production Plunge finishing of seats on shafts up to 400 mm long Automated cells that want handling built into the machine Plants with little floor space for a multi-spindle finisher

Frequently Asked Questions

01 What size shafts does the PowerCUBE 400 take?

Workpiece diameter is 4 – 50 mm (0.16 – 2.0 in) and the maximum workpiece length 400 mm (15.7 in). The programmable longitudinal axis also has max. 400 mm of travel, so the finishing units can reach seats along the whole listed length.

02 How many spindles does it have?

The machine data list 4 or 6 spindles. Each spindle has 10 freely programmable zones, and spindle speed is 10 – 3,000 rpm. Thielenhaus describes the PowerCUBE as a space-saving Microfinish solution with up to six horizontally arranged workpiece spindles.

03 Which finishing units can be fitted?

The device configuration names SL50, KG50 and SL50-100M units. A station takes max. 2 units with the SL50 or max. 3 with the KG50. Thielenhaus's page for the CUBE series describes the process as belt finish for shaft machining.

04 How is the PowerCUBE 400 loaded?

The basic configuration lists a 3-axis handling with double gripper and a special pneumatic loader/unloader. The product page for the PowerCUBE additionally mentions double loading, a loading gantry and a mechanical and electrical loading/unloading interface, without saying which are standard.

05 How does it compare with the CUBE evo?

The PowerCUBE 400 is the multi-spindle machine: 4 or 6 spindles, fixed limits of 400 mm length and 4 – 50 mm diameter, and approx. 1,500 kg. The CUBE evo is configured to customer request for workpiece size, takes max. 6 units, runs to 6,000 rpm and weighs approx. 2,300 kg with handling.
