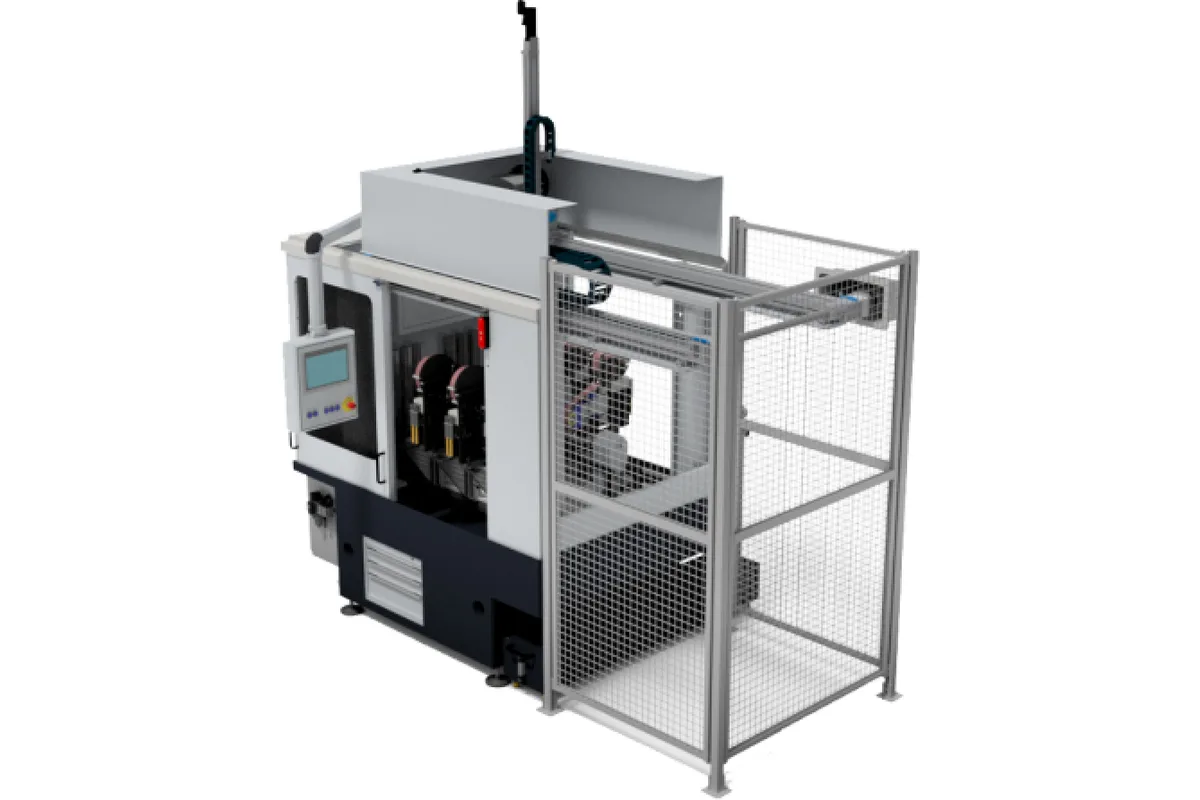

Thielenhaus CUBE evo
Image: thielenhaus.com, Thielenhaus Technologies
Key Specifications
loading unloading
plunge machine with programmable longitudinal axis
flushing trolley filter cartridge
unit type
number of units
spindle speed
How much does the Thielenhaus CUBE evo cost?
Price estimate
We do not have a price for the Thielenhaus CUBE evo that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Thielenhaus CUBE evo is a belt finishing machine for shafts that Thielenhaus configures around the customer's part: workpiece length, workpiece diameter and the type of finishing unit are all entered in its table as per customer request. What is fixed is the platform. It carries max. 6 finishing units, the spindle runs from 0 – 6,000 rpm, and the machine weighs approx. 2,300 kg (5,071 lb) with handling.
Programmability is the theme of the maker's description. The positions of the finishers can be approached with extreme precision, all processing parameters can be saved and called up quickly, and the handling is integrated and programmable via the control system. The machine data support that with 500 programs and 50 freely programmable zones. Thielenhaus's overview brochure adds self-preparation of the machine in combination with Industry 4.0, lot size 1, and error-free and fast changeover times.
Loading is listed as manual or as integrated handling with infeed and outfeed. A loading portal with storage for parts and a robot with storage area are named as options. An NC axis gives longitudinal finishing. For grooving, the tool equals the seat width.
Connections are 3 x 400 V at 50/60 Hz and 6 A, and 1 x 6 bar of compressed air; the product page says a minimum of 5 bar is required. The PowerCUBE 400 fixes its range at 4 – 50 mm diameter and 400 mm length across 4 or 6 spindles. Next to it the CUBE evo is the flexible machine for changing parts, with twice the top spindle speed.
Full Specifications
| Parameter | Value |
|---|---|
| Loading Unloading | manual, integrated handling with infeed and outfeed |
| Plunge Machine with Programmable Longitudinal Axis | per customer request |
| Flushing Trolley Filter Cartridge | 1 – 30 μ |
| Unit Type | per customer request |
| Number of Units | max. 6 |
| Spindle Speed | 0 – 6,000 rpm |
| Freely Programmable Zones | 50 |
| Number of Programs | 500 |
| Max Workpiece Length | per customer request |
| Workpiece Diameter | per customer request |
| Machine Weight | approx. 2,300 kg (5,071 lb) with handling |
| Power Requirement | 3 x 400 V, 50/60 Hz, 6 A (L1, L2, L3, N, PE) |
| Compressed Air | 1 x 6 bar |
Specifications sourced from thielenhaus.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 500 programs and 50 freely programmable zones
- Spindle speed range of 0 – 6,000 rpm
- Takes max. 6 finishing units, with the unit type chosen per customer request
- Integrated handling programmable via the control system, with fast workpiece changeover
- An NC axis positions the finishers and allows longitudinal finishing
Limitations
- Workpiece length and diameter are not published; both are set per customer request
- Loading portal with parts storage and robot with storage area are options
- At approx. 2,300 kg (5,071 lb) with handling it is heavier than the PowerCUBE 400 at approx. 1,500 kg
- Needs a 3 x 400 V supply and compressed air at 1 x 6 bar
Best For
Frequently Asked Questions
01
Thielenhaus does not publish fixed limits. Maximum workpiece length, workpiece diameter and the type of finishing unit are all listed as per customer request. If you need published limits, the PowerCUBE 400 is specified for 4 – 50 mm diameter and 400 mm length.
02
The machine data list 500 programs and 50 freely programmable zones. Thielenhaus says all processing parameters can be saved and called up quickly and that the positions of the finishers can be approached with extreme precision, which is what makes small batches practical.
03
The basic configuration lists manual loading or integrated handling with infeed and outfeed, and the product page says loading/unloading is manual or automatic. Optional equipment includes a loading portal with storage for parts and a robot with storage area. The weight of approx. 2,300 kg is given with handling.
04
Electrics are 3 x 400 V, 50/60 Hz, 6 A, and pneumatics 1 x 6 bar. The product page states that a minimum of 5 bar is required. A flushing trolley with filter cartridge is part of the basic configuration.
