Thielenhaus BearingStar 200

Q: How much does the Thielenhaus BearingStar 200 cost?

The price estimate for the Thielenhaus BearingStar 200 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/thielenhaus-bearingstar-200#price; the request is passed to Thielenhaus Technologies or an authorised dealer.

Specs verified 2026-10-05 · thielenhaus.com Updated 2026-10-05

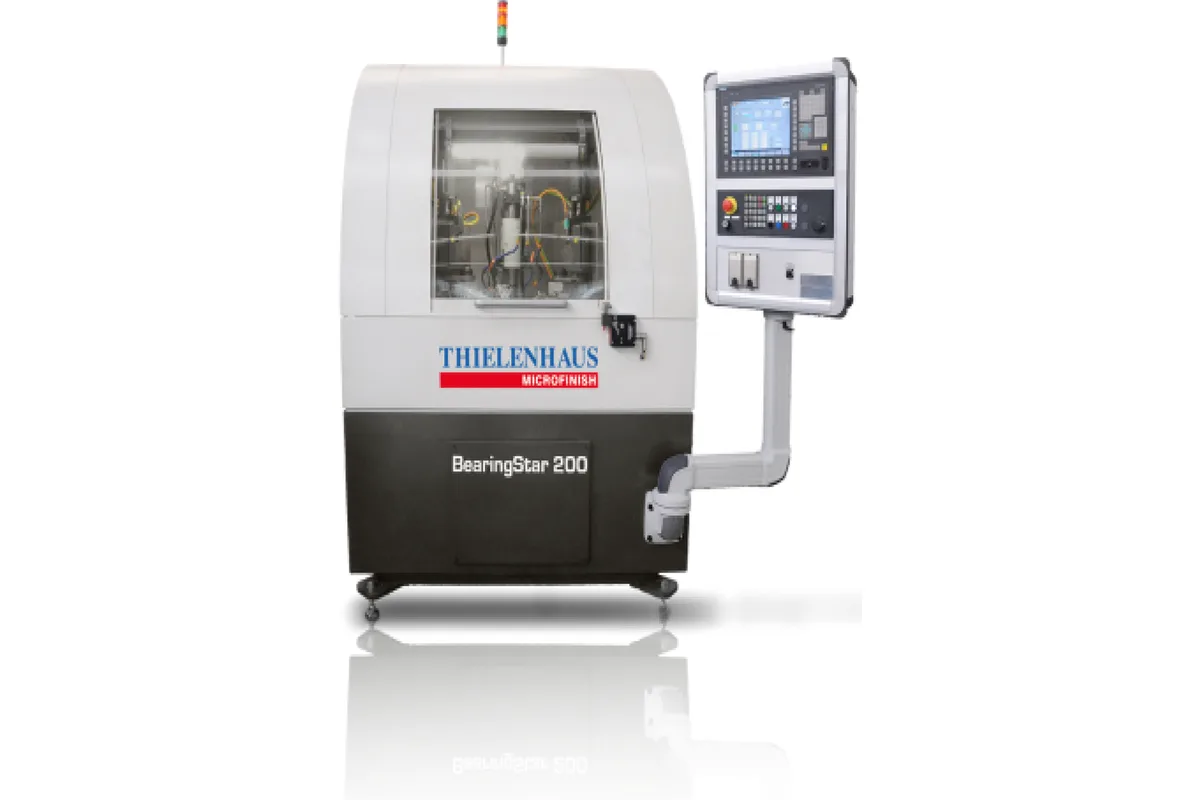

Thielenhaus BearingStar 200 Microfinish machine for bearing rings

Image: thielenhaus.com, Thielenhaus Technologies

Key Specifications

outer ring outside diameter

85 – 200 mm (3.3 – 7.9 in)

inner ring inner diameter

50 – 180 mm (2.0 – 7.1 in)

ring width

15 – 80 mm (0.59 – 3.1 in)

workpiece spindle speed

0 – 3,000 rpm

oscillation frequency

0 – 1,200 double strokes/min

oscillation angle

±0 – 18°

How much does the Thielenhaus BearingStar 200 cost?

Price estimate

Uncertain

We do not have a price for the Thielenhaus BearingStar 200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Thielenhaus BearingStar 200 is the mid-size machine of the BearingStar range, for outer rings of 85 – 200 mm (3.3 – 7.9 in) outside diameter and inner rings of 50 – 180 mm (2.0 – 7.1 in) inner diameter. Ring width runs from 15 – 80 mm (0.59 – 3.1 in). Thielenhaus builds it with 1 or 2 machining stations as a fully automatic Microfinish machine for ball and roller bearing inner and outer rings.

Stone force is where this size departs from the smaller machines. Stone contact pressure is 80 – 360 N, more than double the 170 N ceiling of the BearingStar 90, and it cannot be set below 80 N. The workpiece spindle is correspondingly slower at 0 – 3,000 rpm. Oscillation is unchanged: 0 – 1,200 double strokes per minute, with ±0 – 18° of angle or 0 – 6 mm (0 – 0.24 in) of linear stroke.

With two stations the machine runs the 2-step method, pre-finishing on one stone and finishing on the next. Thielenhaus's product page lists 1-stage processing at one station, 1- or 2-stage processing on 2 stations, outer and inner ring machining, and oscillation units with direct drive or mechanical. It calls the 200 series a universal machine platform for all bearing types, though it does not list the ring types one by one for this size.

The ranges overlap with the neighbours. Rings of 180 – 200 mm outside diameter also fit the BearingStar 320, which has the same spindle speed and stone pressure but is listed with 1 machining station. If a programme needs two stations at that diameter, this is the machine that offers them.

Full Specifications

Parameter	Value
Outer Ring Outside Diameter	85 – 200 mm (3.3 – 7.9 in)
Inner Ring Inner Diameter	50 – 180 mm (2.0 – 7.1 in)
Ring Width	15 – 80 mm (0.59 – 3.1 in)
Workpiece Spindle Speed	0 – 3,000 rpm
Oscillation Frequency	0 – 1,200 double strokes/min
Oscillation Angle	±0 – 18°
Linear Oscillation Stroke	0 – 6 mm (0 – 0.24 in)
Stone Contact Pressure	80 – 360 N
Machining Stations	1 or 2

Specifications sourced from thielenhaus.com — verified 2026-10-05

Strengths & Limitations

Strengths

Stone contact pressure of 80 – 360 N for the larger contact areas of mid-size raceways
Built with 1 or 2 machining stations, for 1- or 2-step machining
Covers outer rings of 85 – 200 mm outside diameter and inner rings of 50 – 180 mm inner diameter
Oscillation units with direct drive or mechanical, according to the maker's product page
Ring widths of 15 – 80 mm on one machine

Limitations

Workpiece spindle speed is limited to 3,000 rpm, half the 6,000 rpm of the BearingStar 90
Stone contact pressure cannot be set below 80 N
The maker's data give no weight, footprint or connection values
The ring type list printed for other sizes is missing for this one

Best For

Medium bearing rings up to 200 mm outer ring outside diameter 2-step raceway finishing on two stations Inner and outer rings on one machine platform Rings up to 80 mm wide that need up to 360 N of stone force

Frequently Asked Questions

01 What ring sizes does the BearingStar 200 cover?

Outer ring outside diameter 85 – 200 mm (3.3 – 7.9 in), inner ring inner diameter 50 – 180 mm (2.0 – 7.1 in) and ring width 15 – 80 mm (0.59 – 3.1 in). Below that the BearingStar 120 covers 60 – 120 mm outside diameter, and above it the BearingStar 320 covers 180 – 320 mm.

02 How many machining stations can it have?

1 or 2. Thielenhaus lists 1-stage processing at one station and 1- or 2-stage processing on 2 stations. The BearingStar 320 and BearingStar 650 are both listed with 1 machining station, so this is the largest BearingStar size shown with a 2-station choice.

03 How much stone contact pressure is available?

80 – 360 N. That is the same range as the BearingStar 320 and well above the 0 – 170 N of the BearingStar 90. The lower limit of 80 N means very light finishing passes are work for the smaller machines.

04 What are the spindle and oscillation figures?

Workpiece spindle speed is 0 – 3,000 rpm. Oscillation frequency is 0 – 1,200 double strokes/min, with an oscillation angle of ±0 – 18° or a linear oscillation stroke of 0 – 6 mm (0 – 0.24 in). The product page lists oscillation units with direct drive or mechanical.
