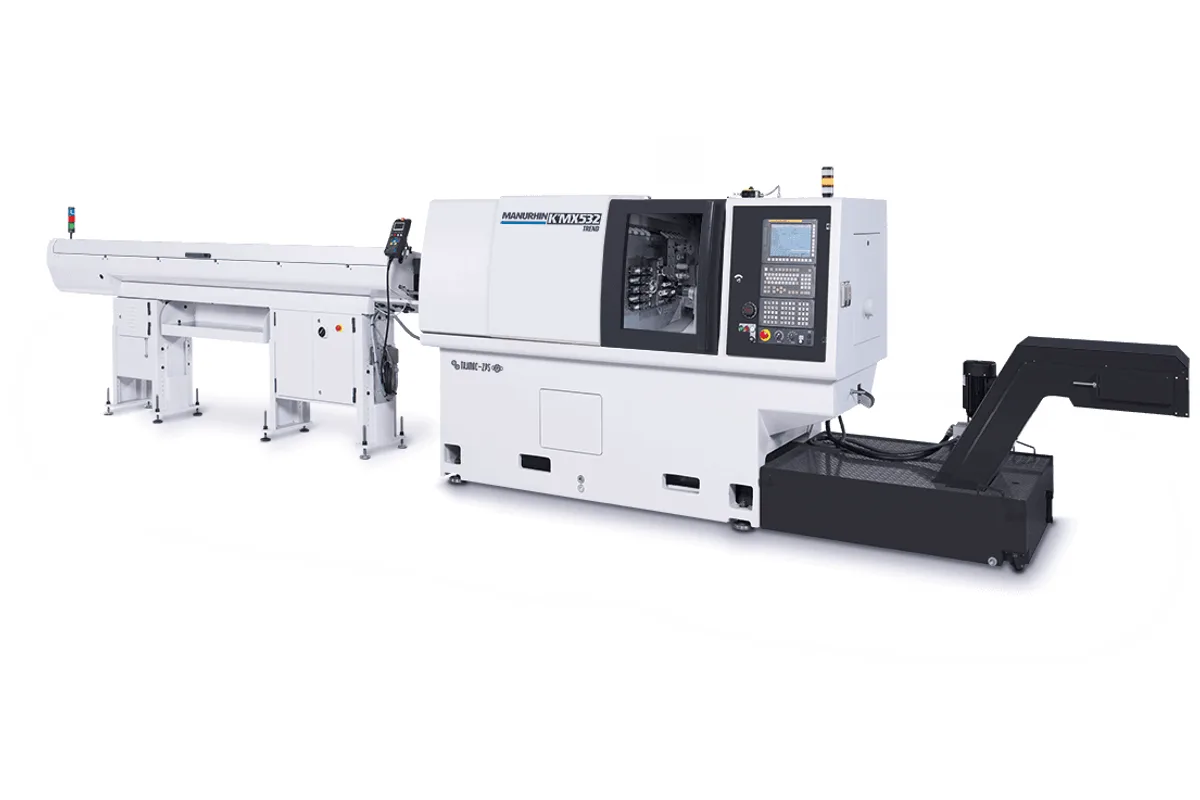

Tajmac-ZPS MANURHIN K'MX 532 TREND
Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
bar capacity
spindle bore
headstock stroke
How much does the Tajmac-ZPS MANURHIN K'MX 532 TREND cost?
Price estimate
We do not have a price for the Tajmac-ZPS MANURHIN K'MX 532 TREND that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The MANURHIN K'MX 532 TREND is a five-axis version of the maker's 32 mm sliding-headstock lathe. Its extra axis is Y2: an axial tool rack with 260 mm (10.2 in) of vertical travel that works independently of the main rack. Bar capacity is Ø 32 mm, with Ø 36 mm optional on request, and the headstock stroke is 410 mm.
Why does a second Y axis matter on a machine like this? On the four-axis MANURHIN K'MX 432 every tool rides on the one rack, so end-working tools and turning tools share the same X1 and Y1 moves. Here the turning positions are listed as (2 x 5) + (2 x 4), and the axial rack can position a drill or boring tool on its own while the main rack turns. The maker mentions extra axial drilling as the use for the optional motorized tools.
The rest of the specification is the 32 mm platform. Two electro spindles reach 10,000 rpm each. Main spindle power is 5.5 / 7.5 kW (100% / 25%); the counter spindle has 3.7 / 5.5 kW (100% / 30 min) and a 300 mm stroke. Rapid feed is 30 m/min on every listed axis. Live tools are rated 2,3 kW with torque up to 32 Nm.
Tajmac-ZPS says the machine is typically delivered with an automatic bar feeder with encoder and a magazine for 3m bars. Parts over 170 mm leave only through the counter spindle, an option for parts up to Ø 26 mm. A second option deserves a look if you run short parts: a longer-nose collet clamping that enters the working area through the guide bush hole, so the machine works without a guide bush and leaves a shorter bar remnant. Control is FANUC 0i. The machine measures 3,000 x 1,460 x 1,860 mm and weighs 4,500 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | Ø 32 mm (1.3 in); Ø 36 mm (1.4 in) optional on request |
| Max Turning Length | 400 mm (15.7 in) |
| Spindle Bore | Ø 37 mm (Ø 1.5 in) |
| Spindle Motor Power | 5.5 / 7.5 kW (7.4 / 10.1 hp) (100% / 25%) |
| Max Spindle Speed | 10,000 rpm |
| Headstock Stroke | 410 mm (16.1 in) |
| Rapid Traverse Main Spindle | 30 m/min |
| Number of Tool Racks | 1 |
| X1 Axis Travel | 80 mm (3.1 in) |
| Rapid Traverse X1 | 30 m/min |
| Y1 Axis Travel | 191 mm (7.5 in) |
| Rapid Traverse Y1 | 30 m/min |
| Y2 Axis Travel | 260 mm (10.2 in) |
| Rapid Traverse Y2 | 30 m/min |
| Tool Positions Turning | (2 x 5) + (2 x 4) |
| Tool Shank Size | 16 x 16 mm (0.6 x 0.6 in) |
| Sub Spindle Stroke | 300 mm (11.8 in) |
| Rapid Traverse Sub Spindle | 30 m/min |
| Sub Spindle Bar Capacity | Ø 32 mm (1.3 in); Ø 36 mm (1.4 in) optional on request |
| Max Part Length Inside Sub Spindle | 150 mm (5.9 in) |
| Max Part Length Front Ejection | 170 mm (6.7 in) |
| Sub Spindle Bore | Ø 37 mm (Ø 1.5 in) |
| Sub Spindle Speed | 10,000 rpm |
| Sub Spindle Power | 3.7 / 5.5 kW (5.0 / 7.4 hp) (100% / 30 min) |
| Part Evacuation Through Sub Spindle | Optional (for parts max. Ø 26 mm) |
| Air Pressure | 6 bar |
| Coolant Tank Capacity | 300 l |
| Coolant Flow Rate | 100 l/min |
| Coolant Pump Pressure | 5.5 bar |
| Power Requirement | 3 x 400 V – 50 Hz |
| Power Input | 32 kVA |
| CNC Control | FANUC 0i |
| Machine Dimensions | 3,000 x 1,460 x 1,860 mm (118.1 x 57.5 x 73.2 in) |
| Machine Weight | 4,500 kg (9,921 lb) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Independent axial tool rack on Y2 with 260 mm (10.2 in) of travel
- Turning positions listed as (2 x 5) + (2 x 4), more than the (2 x 5) : 10 of the MANURHIN K'MX 432
- 410 mm (16.1 in) headstock stroke for shafts up to 400 mm on one clamping
- Optional clamping without a guide bush for short parts and a shorter bar remnant
- Live tools rated 2,3 kW with torque up to 32 Nm
Limitations
- One main tool rack only: the two-rack MANURHIN K'MX 632 DUO cuts with two tools on the main spindle at once
- Main spindle power is 5.5 / 7.5 kW, a modest figure for Ø 32 mm bar in tough materials
- Parts longer than 170 mm can only be evacuated through the optional counter-spindle route, up to Ø 26 mm
- Needs a 32 kVA supply and floor space for a 4,500 kg (9,921 lb) machine plus bar feeder
Best For
Frequently Asked Questions
01
A fifth linear axis. The MANURHIN K'MX 432 has X1, Y1, Z1 and Z2; the TREND adds Y2, an axial tool rack with 260 mm of vertical stroke and a 30 m/min rapid feed. Tool positions go from (2 x 5) : 10 to (2 x 5) + (2 x 4). Spindles, bar capacity, strokes and overall dimensions are unchanged.
02
The main spindle is rated 5.5 / 7.5 kW (100% / 25%) and the counter spindle 3.7 / 5.5 kW (100% / 30 min). Both electro spindles run to 10,000 rpm and both bores are Ø 37 mm. A rotary guide bush synchronized with the main spindle by pulleys and belts is standard.
03
Yes, as an option. The maker offers a special longer-nose clamping for collets on the main spindle that enters the working area through the hole for the guide bush. It is meant for short parts where the guide bush is not necessary, and the customer gets a shorter bar remnant.
04
Parts up to 170 mm (6.7 in) are ejected from the front; the counter spindle holds 150 mm of part inside it. Parts over 170 mm can only leave through the counter spindle, which is optional and takes parts up to Ø 26 mm. In that case the maker says part length is limited in theory only by the length of the bar.
05
The control is a FANUC 0i. The supply is 3 x 400 V – 50 Hz at 32 kVA, with air at 6 bar. The coolant tank holds 300 l and the pump gives 100 l/min at 5.5 bar.
