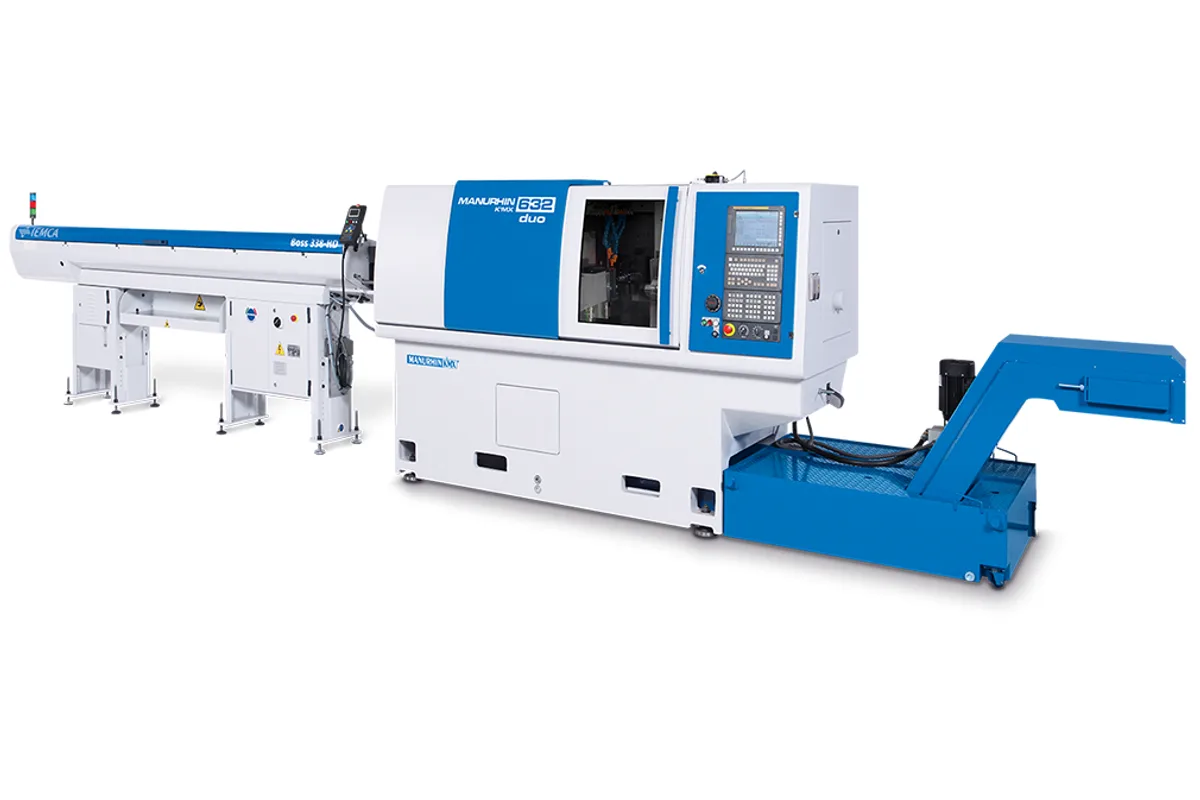

Tajmac-ZPS MANURHIN K'MX 632 DUO
Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
bar capacity
spindle bore
headstock stroke
How much does the Tajmac-ZPS MANURHIN K'MX 632 DUO cost?
Price estimate
We do not have a price for the Tajmac-ZPS MANURHIN K'MX 632 DUO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two tool racks face each other across the guide bush on the MANURHIN K'MX 632 DUO, and each has its own X and Y axis. That is what the name refers to: two tools cutting on the main spindle at once. The machine takes Ø 32 mm (1.3 in) bar, has six linear axes (X1, X2, Y1, Y2, Z1, Z2) and a main spindle rated 15 / 25 kW (100% / 25%).
The maker calls parallel turning or milling with two tools the big advantage of this model. Balanced turning splits the cutting load between opposing tools, which helps on slender work, and two tools roughing together shorten the cycle. Feeding two cuts takes power, and the main spindle has close to three times the continuous rating of the single-rack MANURHIN K'MX 432, at 15 kW against 5.5 kW. Top speed on the main spindle is 8,000 rpm.
Each rack has 45 mm of horizontal stroke on X1 and 180 mm of vertical stroke on Y1, with rapid feeds of 30 m/min. Tool positions for turning are listed as (2 x 5) : 10 with 16 x 16 mm shanks. Motorized tools are optional on both the rear and the front rack; live tools are quoted at 2,3 kW with torque up to 32 Nm.
Length capacity matches the rest of the 32 mm family. The headstock stroke is 410 mm and 400 mm can be turned on one stroke. The counter spindle is rated 3.7 / 5.5 kW (100% / 30 min) with a 295 mm stroke, and parts up to 170 mm are caught by a pneumatic arm with a bucket. Control is FANUC 31i. Dimensions are 3,000 x 1,460 x 1,860 mm and the weight is 4,500 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | Ø 32 mm (1.3 in); Ø 36 mm (1.4 in) optional on request |
| Max Turning Length | 400 mm (15.7 in) |
| Spindle Bore | Ø 37 mm (Ø 1.5 in) |
| Spindle Motor Power | 15 / 25 kW (20.1 / 33.5 hp) (100% / 25%) |
| Max Spindle Speed | 8,000 rpm |
| Headstock Stroke | 410 mm (16.1 in) |
| Rapid Traverse Main Spindle | 30 m/min |
| Number of Tool Racks | 2 |
| X1 Axis Travel | 45 mm (1.8 in) |
| Rapid Traverse X1 | 30 m/min |
| Y1 Axis Travel | 180 mm (7.1 in) |
| Rapid Traverse Y1 | 30 m/min |
| Tool Positions Turning | (2 x 5) : 10 |
| Tool Shank Size | 16 x 16 mm (0.6 x 0.6 in) |
| Sub Spindle Stroke | 295 mm (11.6 in) |
| Rapid Traverse Sub Spindle | 30 m/min |
| Sub Spindle Bar Capacity | Ø 32 mm (1.3 in); Ø 36 mm (1.4 in) optional on request |
| Max Part Length Inside Sub Spindle | 150 mm (5.9 in) |
| Max Part Length Front Ejection | 170 mm (6.7 in) |
| Sub Spindle Bore | Ø 37 mm (Ø 1.5 in) |
| Sub Spindle Power | 3.7 / 5.5 kW (5.0 / 7.4 hp) (100% / 30 min) |
| Part Evacuation Through Sub Spindle | Optional (for parts max. Ø 26 mm) |
| Air Pressure | 6 bar |
| Coolant Tank Capacity | 300 l |
| Coolant Flow Rate | 100 l/min |
| Coolant Pump Pressure | 5.5 bar |
| Power Requirement | 3 x 400 V – 50 Hz |
| Power Input | 32 kVA |
| CNC Control | FANUC 31i |
| Machine Dimensions | 3,000 x 1,460 x 1,860 mm (118.1 x 57.5 x 73.2 in) |
| Machine Weight | 4,500 kg (9,921 lb) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Two independent tool racks allow parallel turning or milling with two tools on the main spindle
- 15 / 25 kW (20.1 / 33.5 hp) main electro spindle
- Ø 37 mm bore passes Ø 32 mm bar without bar-end modification; Ø 36 mm optional on request
- 410 mm (16.1 in) headstock stroke, 400 mm turned on one stroke
- FANUC 31i control, with a rotary guide bush synchronized to the main spindle
Limitations
- Main spindle tops out at 8,000 rpm, lower than the 10,000 rpm of the MANURHIN K'MX 432
- X1 stroke is 45 mm per rack, against 80 mm on the single-rack MANURHIN K'MX 432
- Motorized tools are optional on both racks
- No separate axial tool rack; the MANURHIN K'MX 732 EVO adds one on Y3
Best For
Frequently Asked Questions
01
It refers to the two tool racks, each with its own horizontal and vertical axis. Tajmac-ZPS describes the big advantage of the model as the possibility of parallel turning or milling with two tools at the same time, and lists two tools in the cut at once on the main spindle.
02
15 / 25 kW (100% / 25%), with a maximum speed of 8,000 rpm and a Ø 37 mm bore. The counter spindle is rated 3.7 / 5.5 kW (100% / 30 min). By comparison the MANURHIN K'MX 432 has a 5.5 / 7.5 kW main spindle that runs to 10,000 rpm.
03
They are an option. The maker says the machine can be equipped with motorized tools on both the rear and the front tool rack. The product page quotes live tool power of 2,3 kW and live tool torque up to 32 Nm. Both spindles have a C-axis.
04
Up to 400 mm (15.7 in) is turned on one clamping, and longer shafts can be made with multiple clamping. Parts up to 170 mm are caught by the pneumatic arm with bucket. Longer parts are evacuated through the counter spindle, an option for parts up to Ø 26 mm.
05
The machine measures 3,000 x 1,460 x 1,860 mm (118.1 x 57.5 x 73.2 in) and weighs 4,500 kg (9,921 lb). It needs 3 x 400 V – 50 Hz at 32 kVA and air at 6 bar. The coolant tank holds 300 l, with a pump giving 100 l/min at 5.5 bar.
