Tajmac-ZPS MANURHIN K'MX 620
Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
bar capacity
spindle bore
How much does the Tajmac-ZPS MANURHIN K'MX 620 cost?
Price estimate
We do not have a price for the Tajmac-ZPS MANURHIN K'MX 620 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

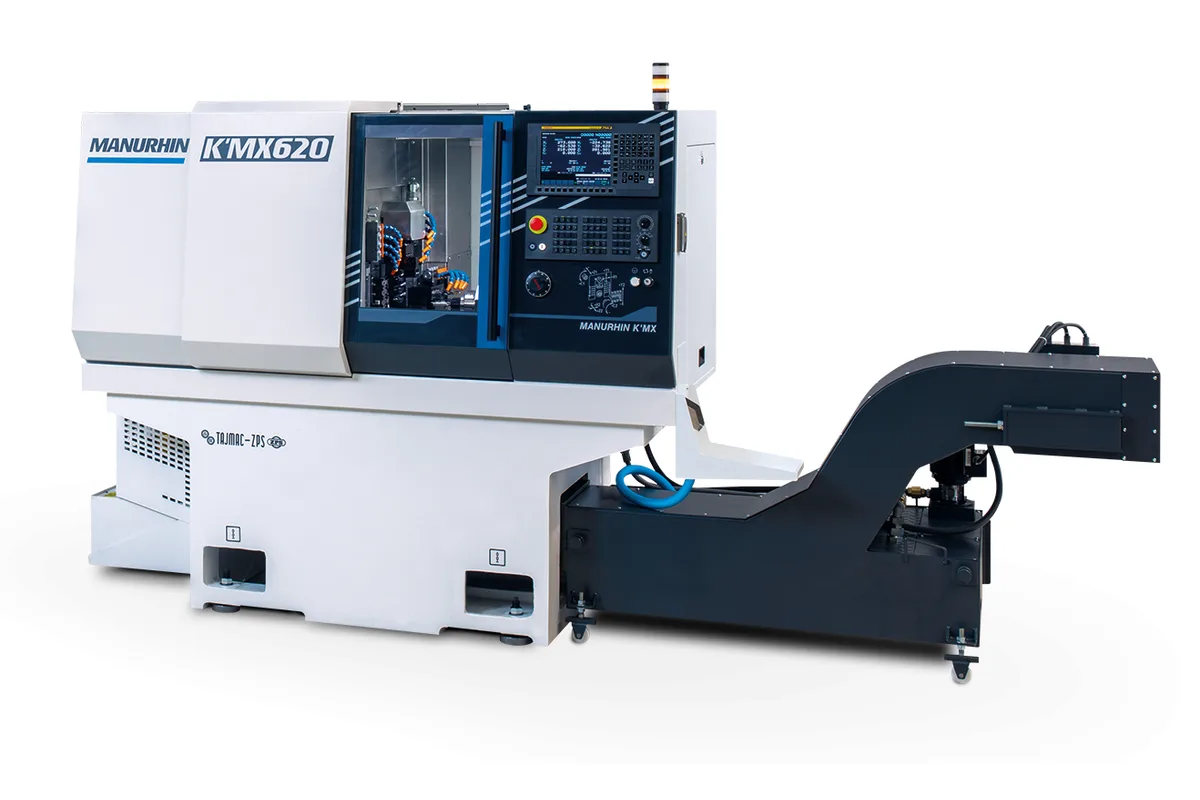

Six linear CNC axes on a 20 mm bar machine: the MANURHIN K'MX 620 is the K'MX 520 with a Y2 axis added to the cross slide. It turns Ø 20 mm (0.8 in) bar, 200 mm (7.9 in) per stroke, on two 12,000 rpm motor spindles, and comes with sub-spindle, driven tools and bar feeder as standard.
Y2 has 66 mm (2.6 in) of travel. That is enough to put tools at different heights on the cross slide, and the tool count there rises to 8+3 against 4+1 on the MANURHIN K'MX 520. In practice the back-working side stops being a place for a cut-off pickup and a single drill; off-centre holes and milled features on the second end become possible without a special holder. The main slide is unchanged at (2 x 5) + (2 x 4) tools, with X1 and Y1 travels of 60 mm and 167 mm.
Power is modest. The main spindle delivers 3.7 / 5.5 kW (100% / 25%) and the sub-spindle 2.2 / 3.7 kW (100% / 30 min). Driven tools have 1 kW and 8,000 rpm. Torque is 4.8 Nm on OT4, and the optional OT1, OT5, OT2 and OT3 units give 5.5 Nm or 5.8 Nm. Size the milling work to those numbers.
The brochure lists the linear axis accelerations individually, with Y2 the quickest at 13,0 m/s2, and a single rapid traverse of 25 m/min for all axes. Control is FANUC 0i-TF Plus. The footprint is that of the five-axis machine, 1,980 x 1,230 x 1,813 mm at 2,300 kg, so the extra axis costs no floor space.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | Ø 20 mm (Ø 0.8 in) |
| Max Turning Length | 200 mm (7.9 in) |
| Spindle Bore | 24.5 mm (1.0 in) |
| Spindle Motor Power | 3.7 / 5.5 kW (5.0 / 7.4 hp) (100% / 25%) |
| Max Spindle Speed | 12,000 rpm |
| Headstock Stroke | 210 mm (8.3 in) |
| Number of Tool Slides | 2 |
| X1 Axis Travel | 60 mm (2.4 in) |
| Y1 Axis Travel | 167 mm (6.6 in) |
| X2 Axis Travel | 240 mm (9.4 in) |
| Y2 Axis Travel | 66 mm (2.6 in) |
| Tools Main Slide | (2 x 5) + (2 x 4) |
| Tools Cross Slide | 8+3 |
| Tool Shank Size | 12 x 12 mm (0.5 x 0.5 in) |
| Sub Spindle Stroke | 210 mm (8.3 in) (subject to change) |
| Rapid Traverse Rate | 25 m/min |
| Sub Spindle Bar Capacity | Ø 20 mm (Ø 0.8 in) |
| Max Part Length Front Ejection | 140 mm (5.5 in) (subject to change) |
| Sub Spindle Bore | Ø 21 mm (Ø 0.8 in) |
| Sub Spindle Speed | 12,000 rpm |
| Sub Spindle Power | 2.2 / 3.7 kW (3.0 / 5.0 hp) (100% / 30 min) |
| Part Evacuation Through Sub Spindle | Optional (for workpieces up to max. Ø 17 mm) |
| Driven Tool Power | 1 kW (1.3 hp) |
| Driven Tool Speed | 8,000 rpm |
| Driven Tool Torque Ot1 Ot5 | 5.5 Nm (4.1 lb-ft) (optional equipment) |
| Driven Tool Torque Ot2 | 5.8 Nm (4.3 lb-ft) (optional equipment) |
| Driven Tool Torque Ot3 | 5.8 Nm (4.3 lb-ft) (optional equipment) |
| Driven Tool Torque Ot4 | 4.8 Nm (3.5 lb-ft) |
| Air Pressure | 6 bar |
| Coolant Tank Capacity | 150 l |
| Coolant Flow Rate | 45 l/min |
| Coolant Pump Pressure | 3 bar |
| Power Requirement | 3 x 400 V – 50 Hz |
| Power Input | 26 kVA |
| CNC Control | FANUC 0i-TF Plus |
| Machine Dimensions | 1,980 x 1,230 x 1,813 mm (78.0 x 48.4 x 71.4 in) |
| Machine Weight | 2,300 kg (5,071 lb) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Y2 axis with 66 mm (2.6 in) of travel on the cross slide for off-centre work on the sub-spindle side
- 8+3 tools on the cross slide in addition to (2 x 5) + (2 x 4) on the main slide
- Both spindles run to 12,000 rpm and can machine simultaneously
- Same 1,980 x 1,230 x 1,813 mm footprint and 2,300 kg (5,071 lb) weight as the five-axis MANURHIN K'MX 520
- Standard package includes sub-spindle, driven tools and bar feeder
Limitations
- Driven tools are limited to 1 kW; the highest listed torque is 5.8 Nm, on optional units
- Main spindle power of 3.7 / 5.5 kW restricts heavy roughing in tough alloys
- Maximum machining length per stroke is 200 mm (7.9 in)
- Evacuation through the sub-spindle is optional and limited to workpieces of Ø 17 mm
Best For
Frequently Asked Questions
01
It is Y2, the vertical travel of the cross slide that serves the sub-spindle, with 66 mm of stroke. With it the cross slide carries 8+3 tools and can place them above or below centre. The six linear axes are X1, Y1, Z1, X2, Y2 and Z2, with rotary axes C1 and C2.
02
No. The MANURHIN K'MX 520 and the 620 share the same listed dimensions, 1,980 x 1,230 x 1,813 mm, the same 2,300 kg weight, the same Ø 20 mm bar capacity and the same spindle ratings. The differences are the Y2 axis and the larger tool count on the cross slide.
03
The main motor spindle is rated 3.7 / 5.5 kW (100% / 25%) and the sub-spindle 2.2 / 3.7 kW (100% / 30 min). Both reach 12,000 rpm. The main spindle bore is 24.5 mm and the sub-spindle bore Ø 21 mm.
04
The brochure shows two kinematic arrangements: without a driven guide bushing and with a driven guide bushing. The standard description is a rotating guide bush synchronized with the main spindle by pulleys and belts. Guide bushes are type i357.
05
A FANUC 0i-TF Plus. The maker describes it as a latest-generation CNC chosen for easy and fast programming and shorter setup times, and states that both spindles can machine simultaneously with driven tools available to each.
