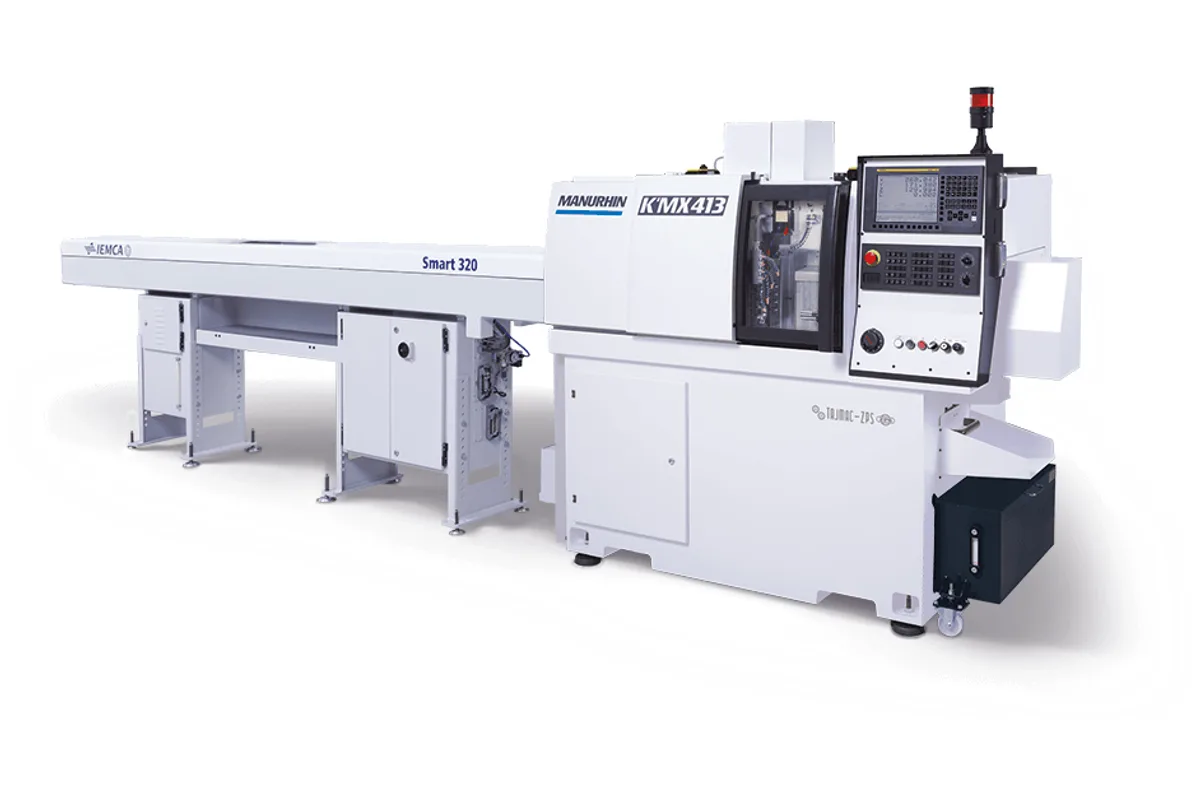

Tajmac-ZPS MANURHIN K'MX 413

The MANURHIN K'MX 413 is the smallest sliding-headstock lathe in the K'MX range: a Ø 13 mm (0.5 in) bar machine with a 130 mm (5.1 in) headstock stroke and 12,000 rpm on both the main and the counter spindle. Tajmac-ZPS lists four linear axes (X1, Y1, Z1, Z2) and two rotary axes (C1, C2), and sells it as a complete package: counter spindle, live tools and bar feeder are standard equipment.

Bar size needs a careful read. The table gives the capacity as Ø 13 (16) mm. Bars above 13 mm go through only after the bar end has been modified, because the standard spindle bore is 18 mm. The maker offers a 19 mm bore as an option so that 16 mm bars run without that preparation. If most of your work is stock larger than 13 mm, order the larger bore.

Tooling is a single gang arrangement. There are up to 8 external turning stations for 12 x 12 mm shanks, up to 3 internal stations bored Ø 16 mm, and 3 powered tools in ER 11 collets. Driven speed is 8,000 rpm on two of those stations and 2,600 rpm on the third, so plan which cross hole or flat goes where. The main electrospindle is rated 3.7 / 5.5 kW (100% / 30 min).

Part length is the limit that decides most jobs here. One feed of the headstock turns 130 mm, the counter spindle takes a part up to 95 mm inside it, and frontal ejection handles 130 mm. The machine itself is compact at 2,350 x 1,050 x 1,784 mm and 2,000 kg, with a 120 l coolant tank and a 26 kVA connection. Control is FANUC.
