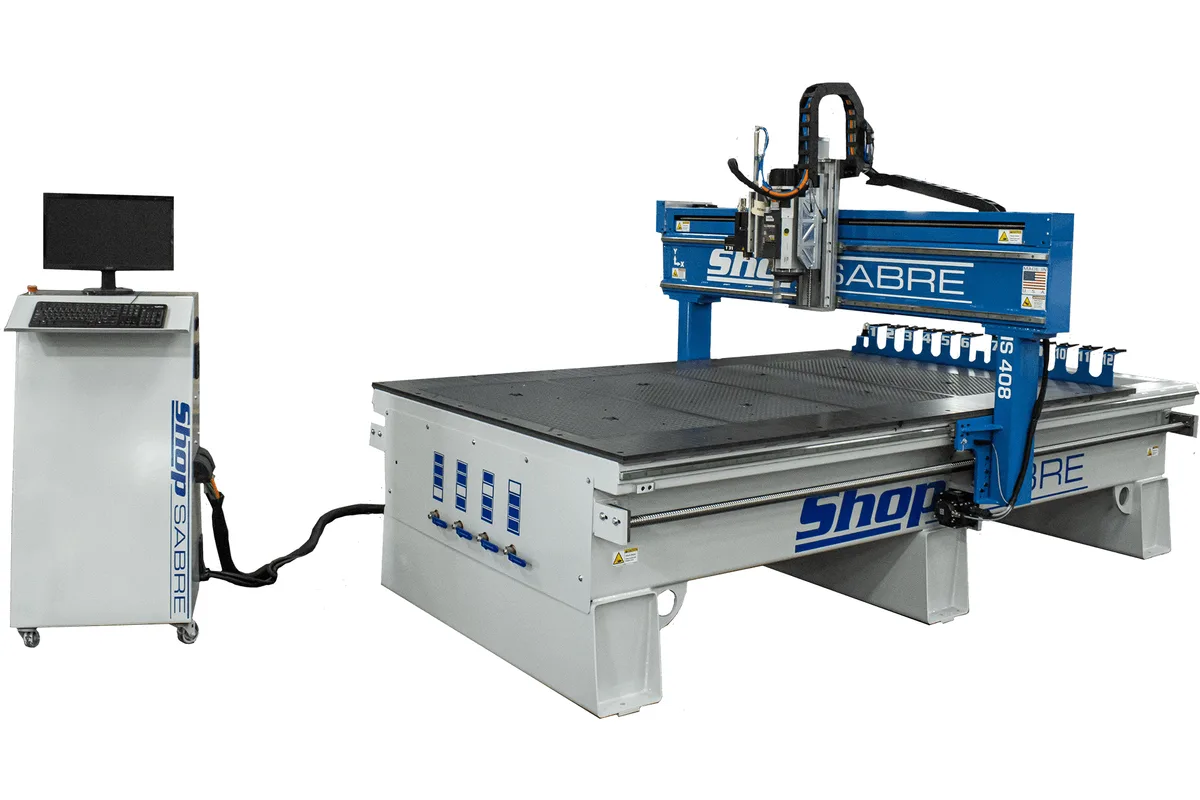

ShopSabre IS EVA 408
Image: shopsabre.com, ShopSabre
Key Specifications
Rapid Traverse
Repeatability
machine dimensions
cutting area
z clearance
z axis travel
How much does the ShopSabre IS EVA 408 cost?
Price estimate
We do not have a price for the ShopSabre IS EVA 408 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The ShopSabre IS EVA 408 is the production-grade 4x8 machine in ShopSabre's EVA foam line: an Industrial Series router with a tangential oscillating knife, a 10 hp tool changer holding 12 tools and a Becker VTLF vacuum pump in its Well Equipped list. Rapid speed is 2,100 ipm (53.3 m/min) over a 65 x 100 x 12 in (1,651 x 2,540 x 305 mm) cut area.
Knife work is mostly travel. An outline cut in foam puts almost no load on the machine, so throughput on a decking job is set by how quickly the head gets from one pad to the next and how fast it can follow curves, which is where the IS drive train, with its oversized ball screws and AC servo motors, separates this model from the 1,200 ipm PRO EVA 408.
The package is also more complete. The knife comes with auto knife length compensation, and ShopSabre lists a dual-head EVA tool calibration package so the knife and the router bit are measured against the same reference. That is what keeps a routed groove at a constant depth relative to a knife-cut edge when blades and bits are changed. An EVA tooling kit, pop-up reference pins and a Z-axis brake are on the list as well.
Twelve tool positions are generous for decking, where three or four groove and bevel cutters do most of the work, and leave pockets free for the tools of ordinary sheet jobs. The machine measures 88 x 133 x 93 in (2,235 x 3,378 x 2,362 mm). Repeatability is +/- 0.001 in (0.025 mm) and Z travel is 16 in (406 mm).
Full Specifications
| Parameter | Value |
|---|---|
| Machine Dimensions | 88 x 133 x 93 in (2,235 x 3,378 x 2,362 mm) |
| Cutting Area | 65 x 100 x 12 in (1,651 x 2,540 x 305 mm) |
| Z Clearance | 12 in (305 mm) standard |
| Z Axis Travel | 16 in (406 mm) |
| Rapid Traverse Rate | 2,100 ipm (53.3 m/min) |
| Repeatability | +/- 0.001 in (0.025 mm) |
| Drive Motors | AC Servo Motors |
| Drive System | Ball Screw X, Dual Y, & Z axis |
| CNC Control | Ethernet/network-ready machine controller with at-machine PC and Windows OS |
| Linear Guides | 25 mm linear guide rails and bearings on all axes |
| Software | Vectric VCarve PRO CAD/CAM software license |
| Dust Port | 4 in (102 mm) |
| Well Equipped Spindle | 10 hp / 12 hp (7.5 / 8.9 kW) electric fan-cooled auto tool change spindle |
| Well Equipped Tool Changer | 12 tool positions, with 12 ISO30 tool holders and ER32 collets |
| Well Equipped Knife | Tangential oscillating knife with auto knife length compensation |
| Well Equipped Tabletop | Surfaced phenolic hi-flow vacuum-ready tabletop with 4 independently controlled zones |
| Well Equipped Vacuum Pump | Becker VTLF vacuum pump |
Specifications sourced from shopsabre.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,100 ipm (53.3 m/min) rapid speed shortens the travel-heavy cycles of knife cutting
- Tangential oscillating knife with auto knife length compensation
- 10 hp / 12 hp tool changer with 12 ISO30 positions in the Well Equipped list
- Becker VTLF vacuum pump and a 4-zone phenolic vacuum-ready tabletop
- Dual-head EVA tool calibration package and an EVA tooling kit
Limitations
- 88 x 133 x 93 in (2,235 x 3,378 x 2,362 mm) machine for 4x8 sheet; longer decking needs the IS EVA 510
- The EVA options list is short and shows no boring heads or aggregate attachments
- Knife stroke and maximum foam thickness are not published
- Electrical requirement for the spindle and Becker pump is not in the table
Best For
Frequently Asked Questions
01
Speed and equipment. The IS EVA 408 lists 2,100 ipm rapids against 1,200 ipm on the PRO EVA 408, a 65 x 100 x 12 in cut area against 60 x 100 x 12 in, a 10 hp tool changer with 12 positions against 6, and a Becker VTLF vacuum pump in place of the F4 system.
02
ShopSabre lists a dual-head EVA tool calibration package built on its tool measure technology, and the knife has auto knife length compensation. Both tools are measured by the machine, so depths stay related after a blade or bit change without manual touch-off.
03
65 x 100 x 12 in (1,651 x 2,540 x 305 mm), with 16 in (406 mm) of Z travel and 12 in (305 mm) of standard gantry clearance. The IS EVA 510 is the larger size at 75 x 125 x 12 in.
04
ShopSabre's onboard computer system with integrated WINCNC controller hardware and software, operated from a rolling control tower. Vectric VCarve PRO CAD/CAM is included, the control is standard G-code compatible, and it accepts direct DXF import.
