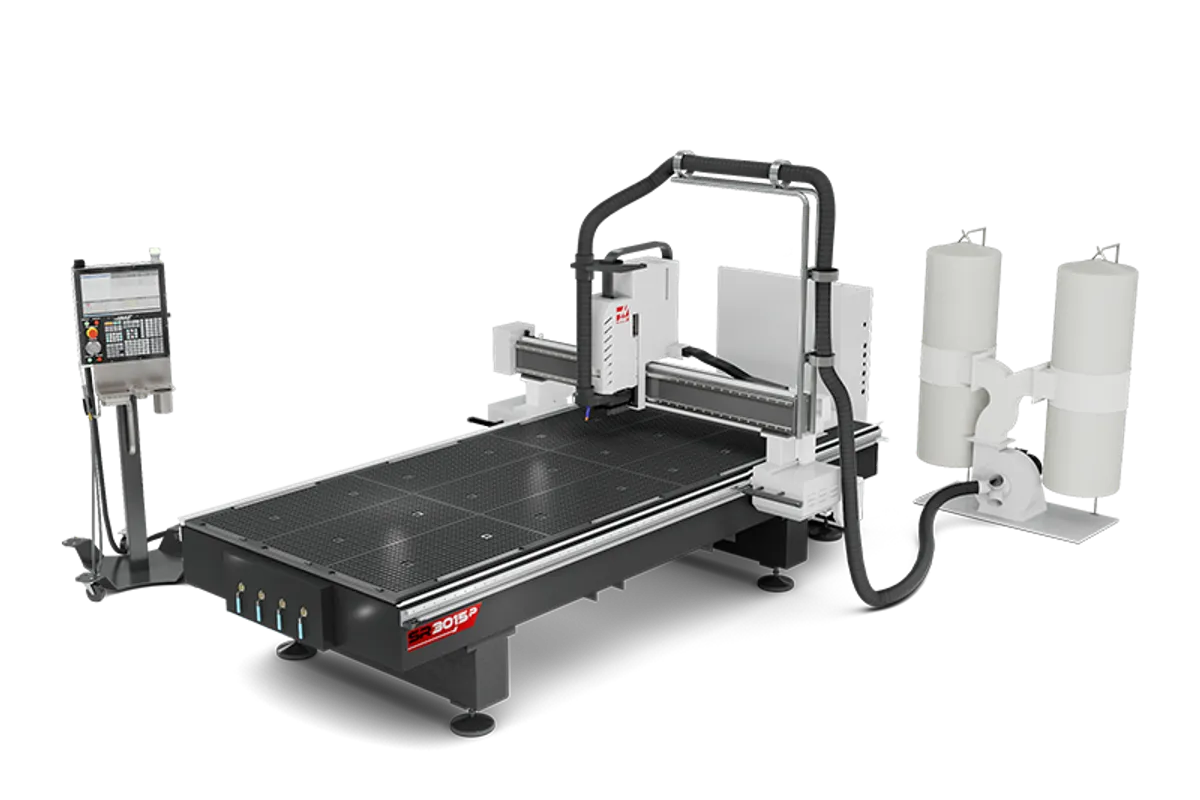

Haas SR-3015P Sheet Router

List US$62,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

118 in (3,000 mm)

Y Travel

59 in (1,500 mm)

Z Travel

9.8 in (250 mm)

Max Spindle

24,000 rpm

Spindle Taper

ISO30

Tool Capacity

How much does the Haas SR-3015P Sheet Router cost?

Manufacturer list price

US$62,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas SR-3015P Sheet Router is the tool-changing, servo-driven machine in the 118 × 59 in (3,000 × 1,500 mm) sheet router size. It pairs a 12.1 hp (9 kW), 24,000 rpm ISO30 spindle with a 12-tool linear rack and 1,772 ipm (45 m/min) rapids on X and Y.

Next to the SR-3015, which has a 6.1 hp (4.5 kW), 18,000 rpm ER32 collet spindle and 567 ipm (14.4 m/min) rapids, the P model doubles the spindle power and roughly triples the traverse rate. Z travel grows from the SR-3015's 7.1 in (180 mm) to 9.8 in (250 mm). The extra hardware shows in the shipping weight: 4,057 lb (1,840 kg) against 2,650 lb (1,200 kg) for the SR-3015. Table load is the same 2,976 lb (1,350 kg) on both.

The spindle's torque figure is 5.6 ft-lbf (7.6 N·m) at 10,000 rpm, which tells you where it works: small cutters, high speed, light chip loads. Cutting feedrate tops out at 394 ipm (10 m/min), well below the rapid rate. Axis thrust is 900 lbf (4,004 N) on X, 450 lbf (2,002 N) on Y and 1,215 lbf (5,406 N) on Z, through servomotor drives.

Tooling has tight limits. The rack holds tools up to 2 in (50 mm) in diameter and 3.25 in (83 mm) long, and a tool change takes 20 s, so the changer saves operator attention more than it saves cycle time. The spindle nose stops 1.9 in (47 mm) above the table at the bottom of Z and reaches 11.7 in (297 mm) at the top. A tool has to project at least that 1.9 in to touch the table surface, which leaves little margin inside the 3.25 in length limit.

Services are 4 scfm of air at 100 psi (113 L/min at 6.9 bar), and 220 VAC at 60 A or 440 VAC at 30 A, three-phase. Haas lists a starting price of US$62,995.

Full Specifications

Parameter	Value
X-Axis Travel	118 in (3,000 mm)
Y-Axis Travel	59 in (1,500 mm)
Z-Axis Travel	9.8 in (250 mm)
Spindle Nose to Table (max)	11.7 in (297 mm)
Spindle Nose to Table (min)	1.9 in (47 mm)
Spindle Motor Power	12.1 hp (9 kW)
Max Spindle Speed	24,000 rpm
Spindle Torque	5.6 ft-lbf @ 10,000 rpm (7.6 N·m @ 10,000 rpm)
Spindle Drive	Integral Spindle/Motor
Spindle Taper	ISO30
Table Size	120.1 × 59 in (3,050 × 1,500 mm)
Max Table Load	2,976 lb (1,350 kg)
Table Between Columns	62.4 in (1,584 mm)
Max Cutting Feedrate	394 ipm (10 m/min)
Rapid Traverse X	1,772 ipm (45 m/min)
Rapid Traverse Y	1,772 ipm (45 m/min)
Rapid Traverse Z	591 ipm (15 m/min)
Axis Drive Type	Servomotor
Max Thrust X	900 lbf (4,004 N)
Max Thrust Y	450 lbf (2,002 N)
Max Thrust Z	1,215 lbf (5,406 N)
Tool Changer Type	Linear Rack
Tool Capacity	12
Max Tool Diameter (full magazine)	2 in (50 mm)
Max Tool Length	3.25 in (83 mm)
Max Tool Weight	22 lb (10 kg)
Tool Change (tool-to-tool)	20 s
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 60 A
Electrical Service (high voltage)	440 VAC 3-phase, 30 A
Shipping Domestic Pallet	90 × 180 × 78 in (229 × 457 × 198 cm)
Shipping Export Pallet	90 × 180 × 78 in (229 × 457 × 198 cm)
Machine Weight	4,057 lb (1,840 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

24,000 rpm ISO30 spindle rated 12.1 hp (9 kW), twice the power of the SR-3015's 6.1 hp (4.5 kW)
12-tool linear rack changer, so multi-tool programs run without manual tool changes
Servomotor axis drives with 1,772 ipm (45 m/min) rapids on X and Y and 591 ipm (15 m/min) on Z
9.8 in (250 mm) of Z travel and up to 11.7 in (297 mm) between spindle nose and table
Two supply choices: 220 VAC at 60 A or 440 VAC at 30 A, three-phase

Limitations

Tool-to-tool time is 20 s, slow enough to matter on parts with many tool changes
Maximum tool length is 3.25 in (83 mm) and maximum tool diameter is 2 in (50 mm)
Spindle torque is 5.6 ft-lbf (7.6 N·m) at 10,000 rpm, so large cutters and heavy cuts are out
Y thrust of 450 lbf (2,002 N) is half the 900 lbf (4,004 N) on X
Cutting feedrate is capped at 394 ipm (10 m/min), under a quarter of the 1,772 ipm (45 m/min) rapid rate

Best For

Multi-tool sheet programs: profile, pocket, drill and chamfer from the 12-tool rack Aluminium sheet and plate parts cut with small tools at up to 24,000 rpm Nested parts across a 118 × 59 in (3,000 × 1,500 mm) sheet Plastic and composite panels up to the 2,976 lb (1,350 kg) table load

Frequently Asked Questions

01 What does the P add over the SR-3015?

A tool changer, a bigger spindle and faster axes. The SR-3015P has a 12-tool linear rack, a 12.1 hp (9 kW), 24,000 rpm ISO30 spindle, 1,772 ipm (45 m/min) X and Y rapids and 9.8 in (250 mm) of Z travel. The SR-3015 has a 6.1 hp (4.5 kW), 18,000 rpm ER32 collet spindle, 567 ipm (14.4 m/min) rapids and 7.1 in (180 mm) of Z. X and Y travel and the 2,976 lb (1,350 kg) table load are the same.

02 How many tools does the SR-3015P hold, and how big can they be?

The linear rack holds 12 tools on an ISO30 taper. Each can be up to 2 in (50 mm) in diameter, 3.25 in (83 mm) long and 22 lb (10 kg). Tool-to-tool time is 20 s. The spindle nose comes no closer than 1.9 in (47 mm) to the table, so very short tools will not reach a part clamped flat on it.

03 How fast does the SR-3015P move?

Rapids are 1,772 ipm (45 m/min) on X and Y and 591 ipm (15 m/min) on Z. The maximum cutting feedrate is 394 ipm (10 m/min). The axes are driven by servomotors, with 900 lbf (4,004 N) of thrust on X, 450 lbf (2,002 N) on Y and 1,215 lbf (5,406 N) on Z.

04 Should I choose the SR-3015P or the SR-4020?

The SR-4020 covers a bigger sheet, 158.6 × 86.4 in (4,029 × 2,195 mm), and carries 8,818 lb (4,000 kg), but it has the 6.1 hp (4.5 kW), 18,000 rpm ER32 spindle, 315 ipm (8 m/min) rapids and a 236 ipm (6 m/min) cutting feedrate. The SR-3015P is smaller at 118 × 59 in (3,000 × 1,500 mm) with a 2,976 lb (1,350 kg) table load, and faster: 24,000 rpm, a 12-tool rack and 1,772 ipm (45 m/min) rapids. Pick on sheet size first, then on how many tools the parts need.

05 What air and power does the SR-3015P need?

Air consumption is 4 scfm at 100 psi (113 L/min at 6.9 bar), with a minimum supply pressure of 80 psi (5.5 bar) through a 3/8 in hose and coupler. Electrical supply is 220 VAC three-phase at 60 A or 440 VAC three-phase at 30 A. The machine weighs 4,057 lb (1,840 kg) and ships on a 90 × 180 × 78 in (229 × 457 × 198 cm) pallet.
