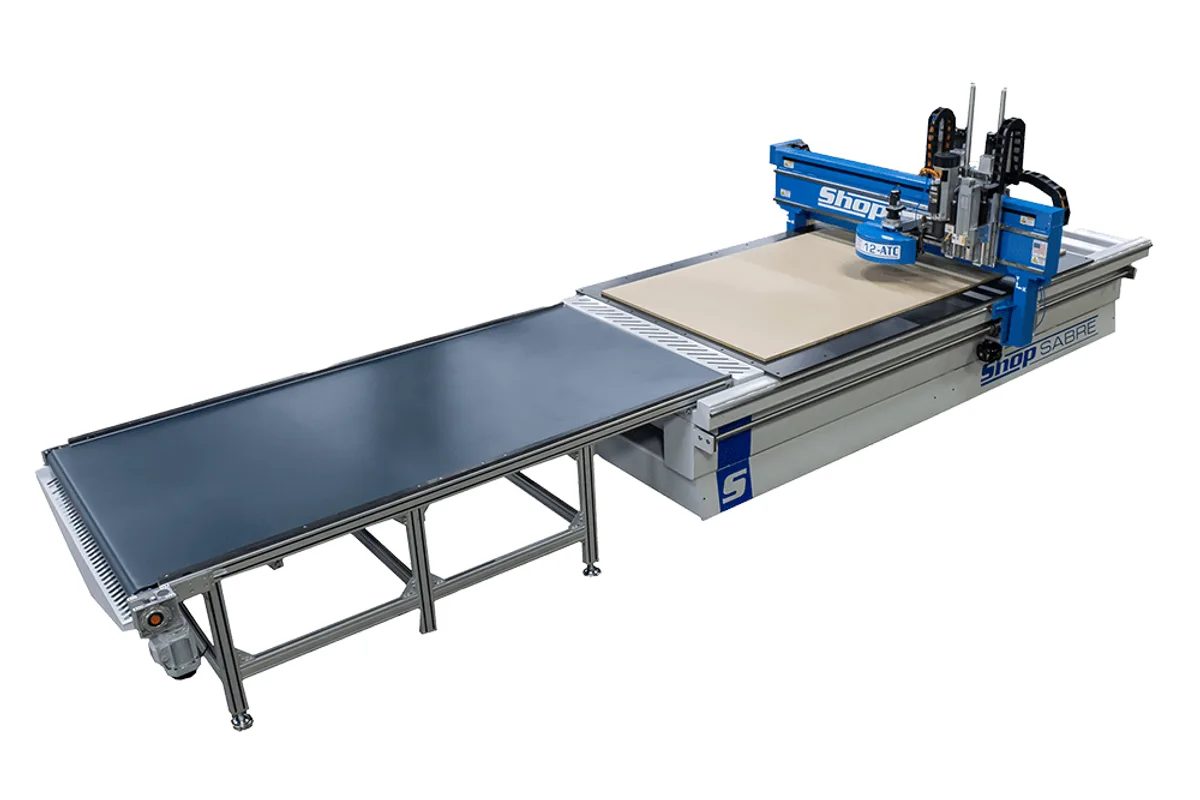

ShopSabre IS-A 510
Image: shopsabre.com, ShopSabre
Key Specifications
Rapid Traverse
Repeatability
power requirement
machine dimensions
cutting area
z axis travel
How much does the ShopSabre IS-A 510 cost?
Price estimate
We do not have a price for the ShopSabre IS-A 510 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The ShopSabre IS-A 510 is an automated nesting cell built around a 5x10 ball screw router: sheets are lifted and loaded at one end, aligned on pneumatic pins, cut, and pushed off onto a motorized unload table at the other. The cut area is 65.5 x 122 x 6 in (1,664 x 3,099 x 152 mm) and the whole line occupies 293.50 x 116.68 x 86.62 in (7,455 x 2,964 x 2,200 mm).
That operating length, more than 24 ft, is the first thing to plan for. The second is how different the Z figures are from ShopSabre's other industrial routers. Gantry clearance is 3 in (76 mm) and the cut area is 6 in deep, although Z travel is 14 in (356 mm). The low bridge suits the job: this is a flat-sheet machine for cabinet, closet and furniture panels, not a table for thick blocks or a rotary axis.
The cutting head carries a 10 hp HSD spindle with a 12-position rotary tool changer that travels with the head, and the Well Equipped package adds a 5x4 HSD drill head for shelf-pin and hardware holes. Vacuum comes from a Becker VTLF pump through a phenolic table with 4 zones that the controller switches automatically for 4x8, 5x5 and 5x10 sheets.
Motion is by ball screws on X, dual Y and Z with Mitsubishi 1 kW AC servo motors, under a Mitsubishi M80 control with ShopSabre's interface. Rapid speed is 2,100 ipm (53.3 m/min) and repeatability +/- 0.001 in (0.025 mm). The listed supply is 220 V at 60 A, and shipping weight is 6,500-7,000 lbs (2,948-3,175 kg). The package includes one day of on-site install inspection and training.
Full Specifications
| Parameter | Value |
|---|---|
| Power Requirement | 220 V, 60 A |
| Machine Dimensions | 293.50 x 116.68 x 86.62 in (7,455 x 2,964 x 2,200 mm) |
| Cutting Area | 65.5 x 122 x 6 in (1,664 x 3,099 x 152 mm) |
| Z Axis Travel | 14 in (356 mm) |
| Z Clearance | 3 in (76 mm) |
| Rapid Traverse Rate | 2,100 ipm (53.3 m/min) |
| Repeatability | +/- 0.001 in (0.025 mm) |
| Drive Motors | AC Servo Motors |
| Drive System | Ball Screw X, Dual Y, & Z axis |
| CNC Control | Mitsubishi M80 Control with ShopSabre Interface |
| Shipping Weight | 6,500-7,000 lbs (2,948-3,175 kg) |
| Linear Guides | 25 mm linear profile guide rails and bearings with quad rollers on all axes |
| Software | Vectric VCarve PRO CAD/CAM full license |
| Servo Motor Power | 1 kW (Mitsubishi AC closed-loop brushless servo motors) |
| Well Equipped Spindle | 10 hp (7.5 kW) with 12-position rotary ATC |
| Well Equipped Drill Head | 5x4 HSD drill head |
| Vacuum Pump | Becker VTLF 2.400 vacuum pump |
| Tabletop | Phenolic tabletop with 4-zone vacuum table and automated digital zone control for 5x5, 4x8 and 5x10 sheets |
| Sheet Handling | Auto loader and material lift table, 5 automated reference pins, pusher bar and motorized unload table |
Specifications sourced from shopsabre.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Auto loader with material lift table, pusher bar and motorized unload table are in the Well Equipped package
- 5 pneumatically controlled reference pins align each sheet automatically
- 10 hp HSD spindle with a 12-position rotary tool changer, plus a 5x4 HSD drill head
- Vacuum zones switched by the controller for 4x8, 5x5 and 5x10 sheets, fed by a Becker VTLF pump
- Mitsubishi M80 control and 1 kW servo motors, with a 2,100 ipm (53.3 m/min) rapid speed
- Power requirement and shipping weight are published: 220 V at 60 A and 6,500-7,000 lbs (2,948-3,175 kg)
Limitations
- Operating size of 293.50 x 116.68 in (7,455 x 2,964 mm) needs a long, clear bay
- Gantry clearance is 3 in (76 mm), so thick stock and tall fixtures are out
- Only one table size is listed; there is no 4x8 or 6x12 version in the series
- Short options list compared with the IS Series: no T-slot tops, rotary axis or knife systems are shown
Best For
Frequently Asked Questions
01
The Well Equipped package lists a machine auto loader with a material lift table, 5 automated reference pins for sheet alignment, an industrial pusher bar that clears the cut sheet, and a motorized unload table. Vacuum zones are switched by the controller.
02
ShopSabre gives an operating size of 293.50 x 116.68 x 86.62 in (7,455 x 2,964 x 2,200 mm). That includes the load and unload ends. Space for stacks of raw sheet, finished parts, the vacuum pump and dust collection comes on top.
03
The cut area is 65.5 x 122 x 6 in (1,664 x 3,099 x 152 mm). Z travel is 14 in (356 mm) and gantry clearance is 3 in (76 mm). By comparison the IS-M 510 has 12 in of standard clearance, so the IS-A is the choice for sheet goods only.
04
A 10 hp Italian HSD electric fan-cooled spindle with a bi-directional, at-head carousel tool changer holding 12 tools. ShopSabre lists the machine with or without an HSD 9-position boring head in an L pattern, and the Well Equipped package names a 5x4 HSD drill head. A 13 hp HSK spindle is an option.
05
The table lists 220 V at 60 A. ShopSabre says the spindle is available for single-phase or three-phase operation and that the Becker vacuum pump is available for single or three-phase users, so confirm the total load of spindle, pump and dust collection with ShopSabre.
