Shibaura Machine BTD-110S.R16
Image: shibaura-machine.com, Shibaura Machine
Key Specifications
Max Spindle
Tool Capacity
Table Size
spindle diameter
x axis travel
y axis travel
How much does the Shibaura Machine BTD-110S.R16 cost?
Price estimate
We do not have a price for the Shibaura Machine BTD-110S.R16 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

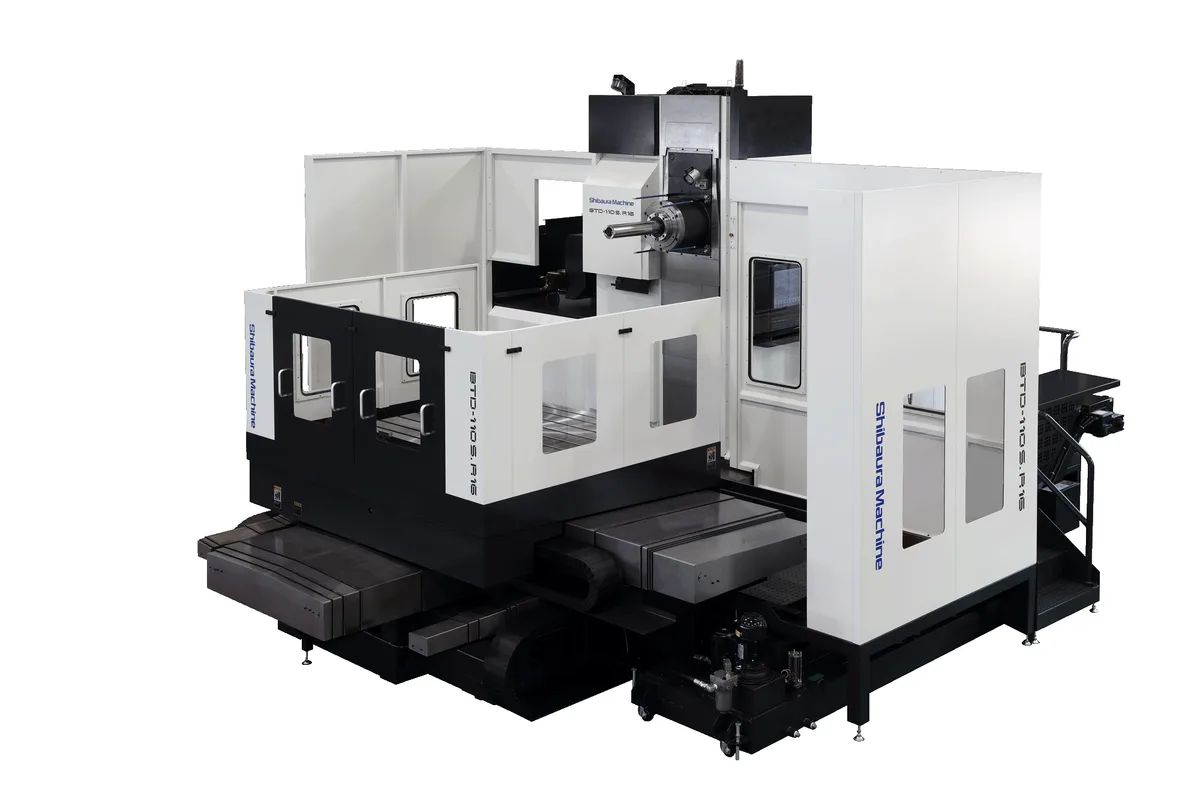

The Shibaura Machine BTD-110S.R16 is a horizontal boring machine with a 4.3 in (110 mm) boring spindle and a 55 x 63 in (1,400 x 1,600 mm) table rated for 13,860 lb (6,300 kg). Travel is 78.7 in (2,000 mm) in X, 59 in (1,500 mm) in Y and 57 in (1,450 mm) in Z, with 19.7 in (500 mm) more on the W axis.
The Z figure stands out. At 57 in (1,450 mm) it is almost as long as Y, which lets the spindle back well clear of a tall fixture and still reach features set deep along the spindle axis. W then adds 19.7 in (500 mm) for bores the headstock itself cannot get to.
The standard spindle runs to 3,000 rpm. An optional high-speed head covers 40-8,000 rpm with an AC 35/30 hp (26.1/22.4 kW) motor, and it changes the character of the machine: aluminium housings and small-tool finishing become practical on a boring mill. Its range starts at 40 rpm, so check that low end against your largest facing and boring tools. No power figure is listed for the standard 3,000 rpm spindle.
A 2-pallet APC is optional. Each pallet is rated for 9,900 lb (4,500 kg), less than the 13,860 lb (6,300 kg) of the fixed table, so the heaviest work this machine can take is not available with pallet changing.
Within the range it sits below the BTD-130S.R22, which has a 71 x 87 in (1,800 x 2,200 mm) table, 26,400 lb (12,000 kg) of table load and a 2,500 rpm spindle. The BTD-200QS goes the other way, with a 39 x 47 in (1,000 x 1,200 mm) table and 30 tools. The BTD-110S.R16 carries 60 tools and runs the FANUC 31i-B Plus control.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 4.3 in (110 mm) boring spindle |
| X Axis Travel | 78.7 in (2,000 mm) |
| Y Axis Travel | 59 in (1,500 mm) |
| Z Axis Travel | 57 in (1,450 mm) |
| W Axis Travel | 19.7 in (500 mm) |
| Max Spindle Speed | 3,000 rpm |
| Spindle Speed Optional | 40-8,000 rpm high-speed head, AC 35/30 hp (26.1/22.4 kW) |
| Table Size | 55 x 63 in (1,400 x 1,600 mm) |
| Max Table Load | 13,860 lb (6,300 kg) |
| Tool Capacity | 60 tools |
| CNC Control | FANUC 31i-B Plus |
| Pallet Changer | Optional 2-pallet APC, 9,900 lb (4,500 kg) per pallet |
Specifications sourced from shibaura-machine.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 78.7 in (2,000 mm) X, 59 in (1,500 mm) Y and 57 in (1,450 mm) Z travel
- 4.3 in (110 mm) boring spindle with 19.7 in (500 mm) of W travel
- Optional 40-8,000 rpm high-speed head with an AC 35/30 hp (26.1/22.4 kW) motor
- 60 tools in the magazine, twice the 30 of the BTD-200QS
- 55 x 63 in (1,400 x 1,600 mm) table rated for 13,860 lb (6,300 kg)
Limitations
- Standard spindle speed is 3,000 rpm; reaching 8,000 rpm means ordering the optional high-speed head
- The optional 2-pallet APC takes 9,900 lb (4,500 kg) per pallet, well under the fixed table's 13,860 lb (6,300 kg)
- Table load is roughly half the 26,400 lb (12,000 kg) of the BTD-130S.R22
- No power figure is listed for the standard spindle, and there are no rapid traverse or accuracy rows
Best For
Frequently Asked Questions
01
X is 78.7 in (2,000 mm), Y is 59 in (1,500 mm) and Z is 57 in (1,450 mm). The W axis adds 19.7 in (500 mm). The table measures 55 x 63 in (1,400 x 1,600 mm), so X travel is longer than either side of it and the spindle can pass the ends of a full-table fixture.
02
The standard 4.3 in (110 mm) boring spindle runs to 3,000 rpm. The option is a high-speed head with a 40-8,000 rpm range and an AC 35/30 hp (26.1/22.4 kW) motor. Shibaura Machine's table gives a power figure only for the high-speed head, so the rating of the standard spindle should be requested.
03
The fixed table is rated for 13,860 lb (6,300 kg). The optional 2-pallet APC is rated for 9,900 lb (4,500 kg) per pallet. Fixtures count toward both limits, so a part that is close to the table rating cannot be moved to the pallet-changing version of the machine.
04
Size and speed. The BTD-130S.R22 has a 71 x 87 in (1,800 x 2,200 mm) table rated for 26,400 lb (12,000 kg) and a 2,500 rpm spindle. The BTD-110S.R16 has a 55 x 63 in (1,400 x 1,600 mm) table rated for 13,860 lb (6,300 kg) and runs to 3,000 rpm. Both hold 60 tools and use the FANUC 31i-B Plus.
