Nicolas Correa MAGNA

Specs verified 2026-10-05 · nicolascorrea.com Updated 2026-10-05

Image: nicolascorrea.com, Nicolas Correa

Key Specifications

Table Size

6,000 - 27,000 x 2,000 - 2,500 - 3,000 mm

Spindle Power

42 / 52 / 70 kW

max table load

10,000 / 15,000 kg/m2

x axis travel

6,000 - 27,000 mm

y axis travel

1,500 - 2,000 mm

z axis travel

4,000 / 5,000 / 6,000 / 7,000 / 8,000 mm

How much does the Nicolas Correa MAGNA cost?

Price estimate

Uncertain

We do not have a price for the Nicolas Correa MAGNA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

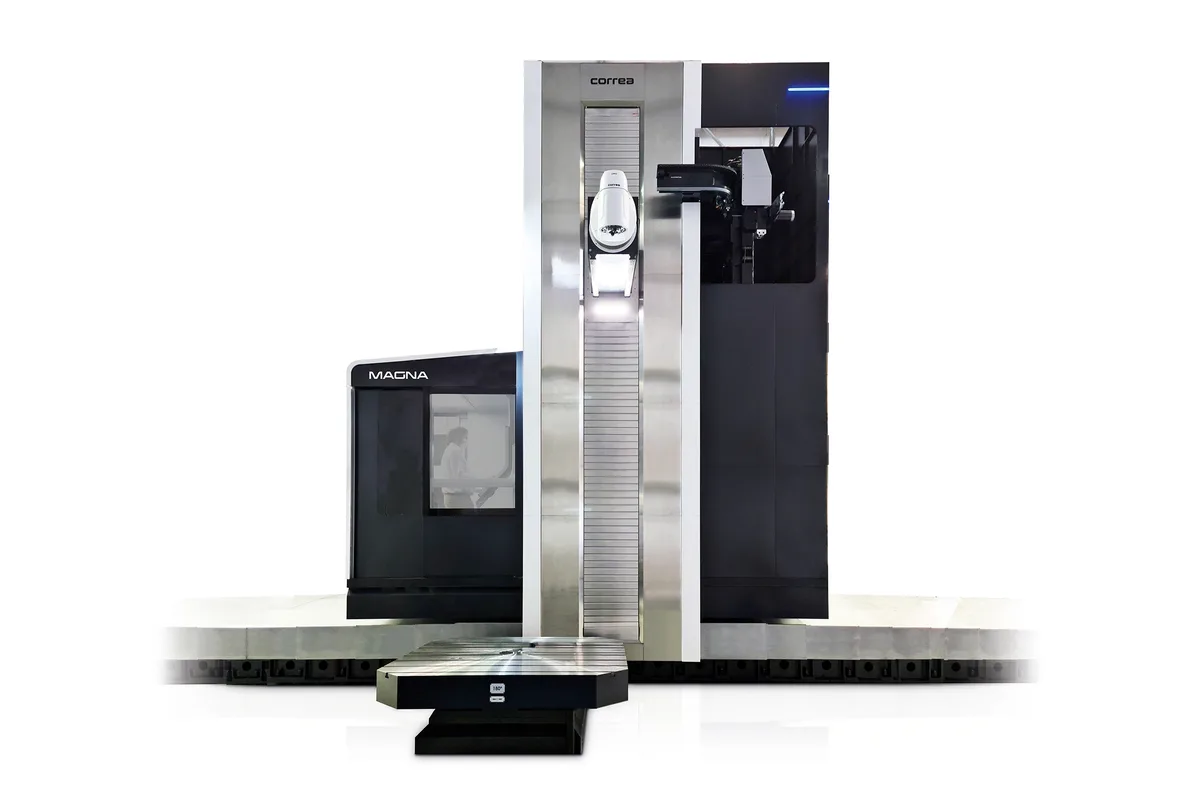

Vertical travel defines the Nicolas Correa MAGNA. This travelling column machine is listed with Z of 4,000 / 5,000 / 6,000 / 7,000 / 8,000 mm, on X travel of 6,000 - 27,000 mm and Y of 1,500 - 2,000 mm. It is the tallest machine in the range: the AXIA, the next travelling column model down, lists Z of 2,500 / 3,000 / 4,000 mm.

A column that tall bends and tips under its own moving masses, and the design answers that directly. Nicolas Correa calls the layout pure box-in-box, with the vertical slide guided by 2 front LM guideways + 2 rear LM guideways. Pulling bars limit column bending, and two dynamic systems correct ram droop and frame tipping as the axes move. The maker's stated aim is heavy chip removal with precision kept through the whole working volume.

Maximum power is listed as 42 / 52 / 70 kW with torque of 620 / 1,375 / 1,500 Nm. X and Y feed at 30 m/min. The table surface runs 6,000 - 27,000 mm long by 2,000 - 2,500 - 3,000 mm wide and is rated 10,000 / 15,000 kg/m2, though at these heights most work will stand on floor plates or a rotary table, both of which are options.

Standard equipment includes an automatic universal head, a Heidenhain or Siemens control and linear scales in all axes. An automatic head-changer, tool magazines for 30, 40, 60 or 120 tools and turning tables are optional. Check the foundation drawing early: a machine with 8,000 mm of vertical travel sets the hall height and crane hook height as well.

Full Specifications

Parameter	Value
Table Size	6,000 - 27,000 x 2,000 - 2,500 - 3,000 mm
Max Table Load	10,000 / 15,000 kg/m2
X Axis Travel	6,000 - 27,000 mm
Y Axis Travel	1,500 - 2,000 mm
Z Axis Travel	4,000 / 5,000 / 6,000 / 7,000 / 8,000 mm
Max Feed X	30 m/min
Max Feed Y	30 m/min
Spindle Motor Power	42 / 52 / 70 kW
Spindle Torque	620 / 1,375 / 1,500 Nm

Specifications sourced from nicolascorrea.com — verified 2026-10-05

Strengths & Limitations

Strengths

Vertical travel of 4,000 / 5,000 / 6,000 / 7,000 / 8,000 mm, beyond the 4,000 mm top figure of the AXIA
Box-in-box column with the vertical slide on 2 front LM guideways + 2 rear LM guideways
Dynamic compensation of both ram droop and frame tipping, plus pulling bars against column bending
Spindle power up to 70 kW and torque up to 1,500 Nm in the listed options
X travel of 6,000 - 27,000 mm for long parts or several stations in a row

Limitations

Y travel is 1,500 - 2,000 mm, so reach into the part is short relative to the height covered
The page's Z feed row has fewer entries than the Z travel row; the vertical feed for each height must be confirmed
Floor plates, rotary tables and turning tables are optional equipment
The tool changer and the automatic head-changer are options

Best For

Very tall workpieces needing 4,000 to 8,000 mm of vertical travel Large machine frames, housings and structures set on floor plates Heavy roughing with the 70 kW spindle option Long parts within 6,000 - 27,000 mm of X travel

Frequently Asked Questions

01 How tall a part can the Correa MAGNA machine?

Vertical travel is offered in five steps: 4,000 / 5,000 / 6,000 / 7,000 / 8,000 mm. Longitudinal travel is 6,000 - 27,000 mm and cross travel 1,500 - 2,000 mm. Usable height on a given job also depends on the head fitted and on whether the part stands on the table, on floor plates or on a rotary table.

02 What does box-in-box mean on the MAGNA?

The vertical slide runs inside a closed column frame and is guided at the front and at the back: 2 front LM guideways + 2 rear LM guideways. Nicolas Correa adds pulling bars that limit column bending, a dynamic ram droop correction system and a dynamic frame tipping compensation system.

03 How does the MAGNA differ from the AXIA?

Mainly in height. The MAGNA lists Z travel from 4,000 to 8,000 mm, while the AXIA lists 2,500 / 3,000 / 4,000 mm. Y travel is 1,500 - 2,000 mm on the MAGNA against 1,500 / 1,750 mm on the AXIA, and the MAGNA's power row goes up to 70 kW.

04 Which spindle options does the MAGNA have?

The table lists maximum power of 42 / 52 / 70 kW and maximum torque of 620 / 1,375 / 1,500 Nm. An automatic universal head is standard equipment, and other heads and an automatic head-changer are listed as options.
