Shibaura Machine BTH-130.R24
Image: shibaura-machine.com, Shibaura Machine
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
Accuracy
Repeatability
How much does the Shibaura Machine BTH-130.R24 cost?
Price estimate
We do not have a price for the Shibaura Machine BTH-130.R24 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

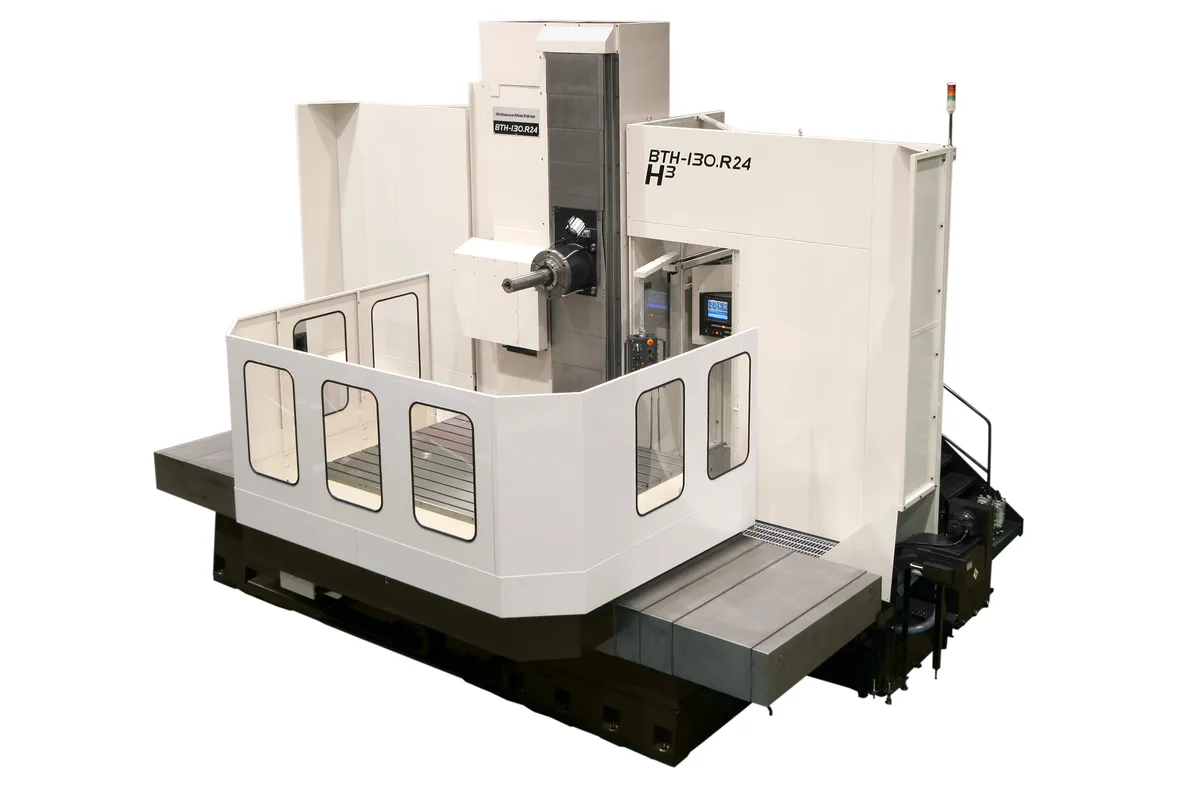

The Shibaura Machine BTH-130.R24 is a heavy horizontal boring machine: a 130 mm (5.1 in) boring spindle facing a 2,000 x 2,400 mm (78.7 x 94.4 in) table rated for 20,000 kg (44,000 lb), or 40,000 kg (88,000 lb) with the optional hydrostatic table. X is 3,000 mm (118 in) of table cross movement, Y is 2,300 mm (90 in) of spindle head travel and Z is 1,500 mm (60 in) of column movement. The spindle extends a further 500 mm (20 in) in W.
The hydrostatic table is the first thing to decide. It doubles the load rating, and for forgings, press frames or large gear cases the part weight alone can settle the question. The optional 2-pallet APC goes the other way: at 15,000 kg (33,000 lb) per pallet it is rated below either table, so pallet changing and maximum part weight cannot be had together.
As standard the spindle runs 5-2,500 rpm on an AC 30/22 kW (40/30 hp) motor, rated 30 min/continuous. An optional high-speed head covers 6-4,000 rpm with AC 60/50 hp. The BTH-110.R18 has 6-4,000 rpm as its standard range on the same AC 30/22 kW (40/30 hp) rating, so what is standard on the smaller machine is an option here.
Axis speeds reflect the mass being moved. Rapid traverse is 14,000 mm/min (551.1 ipm) on X, Y and Z, 5,000 mm/min (196.8 ipm) on W and 500 deg/min on B, with cutting feed from 1-7,000 mm/min (0.04-275.5 ipm). Accuracy is not relaxed for the size: ±0.004 mm (±0.00016 in) positioning and ±0.002 mm (±0.00008 in) repeatability on X, Y and Z.
There are 60 tools in the magazine and the control is the FANUC 31i-B Plus. The machine measures 5,060 x 6,740 x 7,140 mm (199.2 x 265.4 x 281.1 in) H x W x D.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 130 mm (5.1 in) boring spindle |
| X Axis Travel | 3,000 mm (118 in), cross movement of table |
| Y Axis Travel | 2,300 mm (90 in), vertical movement of spindle head |
| Z Axis Travel | 1,500 mm (60 in), longitudinal movement of column |
| W Axis Travel | 500 mm (20 in) spindle extension |
| Table Size | 2,000 x 2,400 mm (78.7 x 94.4 in) |
| Max Table Load | 20,000 kg (44,000 lb) |
| Max Table Load Optional | 40,000 kg (88,000 lb) hydrostatic table |
| Max Spindle Speed | 5-2,500 rpm standard; 6-4,000 rpm optional high-speed head |
| Spindle Motor Power | AC 30/22 kW (40/30 hp), 30 min/continuous (AC 60/50 hp with high-speed head) |
| Rapid Traverse Xyz | 14,000 mm/min (551.1 ipm) |
| Rapid Traverse W | 5,000 mm/min (196.8 ipm) |
| Rapid Traverse B | 500 deg/min |
| Cutting Feed Rate | 1-7,000 mm/min (0.04-275.5 ipm) |
| Positioning Accuracy | ±0.004 mm (±0.00016 in) X, Y, Z |
| Repeatability | ±0.002 mm (±0.00008 in) X, Y, Z |
| Tool Capacity | 60 tools |
| CNC Control | FANUC 31i-B Plus |
| Pallet Changer | Optional 2-pallet APC, 15,000 kg (33,000 lb) per pallet |
| Machine Dimensions | 5,060 x 6,740 x 7,140 mm (199.2 x 265.4 x 281.1 in) H x W x D |
Specifications sourced from shibaura-machine.com — verified 2026-09-24
Strengths & Limitations
Strengths
- Table load of 20,000 kg (44,000 lb) as standard and 40,000 kg (88,000 lb) with the hydrostatic table
- 2,000 x 2,400 mm (78.7 x 94.4 in) table with 3,000 mm (118 in) of X and 2,300 mm (90 in) of Y travel
- Optional high-speed head with 6-4,000 rpm and AC 60/50 hp
- ±0.004 mm (±0.00016 in) positioning accuracy and ±0.002 mm (±0.00008 in) repeatability on X, Y and Z
- Optional 2-pallet APC for parts up to 15,000 kg (33,000 lb) per pallet
Limitations
- Standard spindle range ends at 2,500 rpm; the BTH-110.R18 has 6-4,000 rpm as standard
- The 40,000 kg (88,000 lb) rating requires the optional hydrostatic table
- B-axis rapid is 500 deg/min and W-axis rapid 5,000 mm/min (196.8 ipm), so rotations and spindle extension moves add to the cycle
- The APC pallet limit of 15,000 kg (33,000 lb) is below the 20,000 kg (44,000 lb) of the standard table
- At 5,060 mm (199.2 in) high the machine needs a tall building before crane clearance is counted
Best For
Frequently Asked Questions
01
It raises the table load from 20,000 kg (44,000 lb) to 40,000 kg (88,000 lb). The table size listed is 2,000 x 2,400 mm (78.7 x 94.4 in). If the heaviest part with its fixture is above the standard rating, the hydrostatic table has to be part of the order.
02
The standard spindle runs 5-2,500 rpm with an AC 30/22 kW (40/30 hp) motor, rated 30 min/continuous. The optional high-speed head runs 6-4,000 rpm with AC 60/50 hp. The boring spindle is 130 mm (5.1 in) in diameter and extends 500 mm (20 in) in W.
03
Rapid traverse is 14,000 mm/min (551.1 ipm) on X, Y and Z and 5,000 mm/min (196.8 ipm) on W. The B axis rapids at 500 deg/min, so a half turn of the table takes a noticeable part of a minute. Cutting feed is 1-7,000 mm/min (0.04-275.5 ipm).
04
Shibaura Machine lists 5,060 x 6,740 x 7,140 mm (199.2 x 265.4 x 281.1 in) as height, width and depth. Those are machine dimensions only. Room for loading a 2,000 x 2,400 mm (78.7 x 94.4 in) table by crane, and for the pallet changer if ordered, comes on top.
