Juaristi TS3

Est. $350,000 - $550,000 Possible older model Updated 2026-10-03

This model was not found in Juaristi's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.

Key Specifications

X Travel

2,000 mm (78.7 in)

Y Travel

1,600 mm (63.0 in)

Z Travel

1,250 mm (49.2 in)

Spindle Taper

ISO 50 / BT 50

Table Size

1,600 x 1,400 mm (63.0 x 55.1 in)

Spindle Power

30 kW (40 hp) continuous

How much does the Juaristi TS3 cost?

Estimated price range

Est.$350,000 - $550,000

Our best estimate for a cnc boring machine in this class — not a quote from Juaristi. Configuration moves it a long way.

Overview

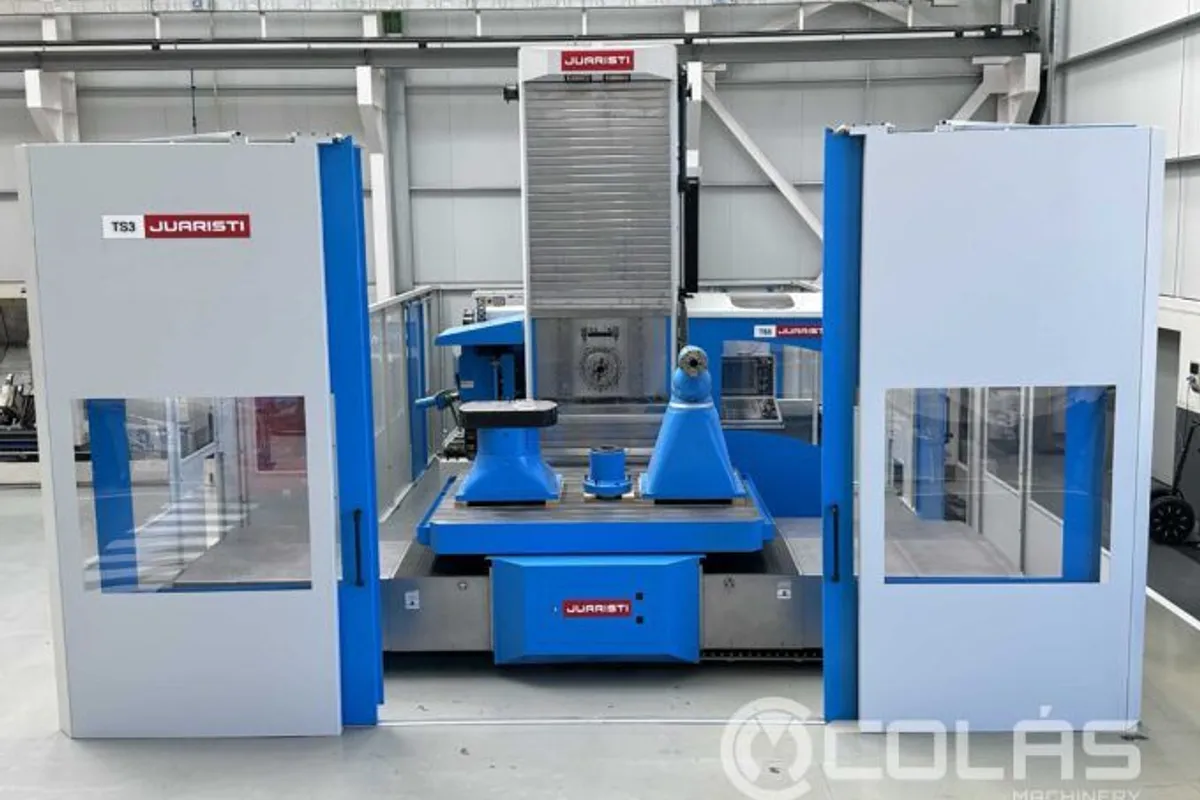

The Juaristi TS3 is a table-type boring mill with a 130 mm (5.1 in) spindle and fixed travels of 2,000 mm (78.7 in) in X, 1,600 mm (63.0 in) in Y and 1,250 mm (49.2 in) in Z. It is not in Juaristi's current lineup, so the listed figures are best used to assess a used machine and should be checked against that machine's own records.

Every TS3 row is a single value, not a range, which makes fit easy to judge. The table measures 1,600 x 1,400 mm (63.0 x 55.1 in) and carries 10,000 kg (22,046 lb). Its 1,600 mm width sits inside the 2,000 mm X travel, so the spindle can reach both edges of a full-width part. The TX3S, by comparison, lists X travel in steps from 2,000 to 6,000 mm and a 20,000 kg table load, twice the TS3's rating.

The spindle is rated 30 kW (40 hp) continuous with a 3,500 rpm maximum and an ISO 50 / BT 50 taper. The W axis gives 600 mm (23.6 in) of spindle travel for boring inside a part. The TX3S lists 40/46 kW, so the TS3 is the lighter-duty machine of the two.

Positioning accuracy is listed at 0.008 mm (0.0003 in) and repeatability at 0.005 mm (0.0002 in). The magazine holds 40 tools as standard, with 80 optional, and the control is Heidenhain TNC 640 or Siemens 840D SL. Machine weight is listed as approx 25,000 kg (55,116 lb), the figure to plan the foundation and rigging around.

Full Specifications

Parameter	Value
Spindle Diameter	130 mm (5.1 in)
X-Axis Travel	2,000 mm (78.7 in)
Y-Axis Travel	1,600 mm (63.0 in)
Z-Axis Travel	1,250 mm (49.2 in)
Travel W Spindle	600 mm (23.6 in)
Spindle Speed	3,500 rpm max
Spindle Motor Power	30 kW (40 hp) continuous
Spindle Taper	ISO 50 / BT 50
Table Size	1,600 x 1,400 mm (63.0 x 55.1 in)
Table Load Capacity	10,000 kg (22,046 lb)
Positioning Accuracy	0.008 mm (0.0003 in)
Repeatability	0.005 mm (0.0002 in)
Tool Magazine Capacity	40 tools standard (80 optional)
CNC Control	Heidenhain TNC 640 or Siemens 840D SL
Machine Weight	25,000 kg (55,116 lb) approx
Spindle Size	5.1181"

Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.

Strengths & Limitations

Strengths

Fixed, clearly stated envelope: 2,000 mm (78.7 in) X, 1,600 mm (63.0 in) Y, 1,250 mm (49.2 in) Z
Table of 1,600 x 1,400 mm (63.0 x 55.1 in) rated for 10,000 kg (22,046 lb)
W-axis spindle travel of 600 mm (23.6 in) on a 130 mm (5.1 in) spindle
Listed positioning accuracy of 0.008 mm (0.0003 in) and repeatability of 0.005 mm (0.0002 in)
3,500 rpm maximum spindle speed with 30 kW (40 hp) continuous power

Limitations

Not in Juaristi's current lineup; the listed figures should be confirmed for the individual machine
Table load of 10,000 kg (22,046 lb) is half the 20,000 kg listed for the TX3S
The 80-tool magazine is optional; standard capacity is 40 tools
X travel is 2,000 mm (78.7 in) with no longer version listed, so longer parts need a different machine

Best For

Medium housings and gearbox cases within a 2,000 x 1,600 x 1,250 mm envelope Parts and fixtures up to 10,000 kg (22,046 lb) on the table Bores reached with 600 mm (23.6 in) of W-axis travel Shops assessing a used table-type boring mill with ISO 50 / BT 50 tooling

Frequently Asked Questions

01 Is the Juaristi TS3 still available new?

The TS3 is not in Juaristi's current lineup. The listed figures on this page describe an older model, so anyone looking at a TS3 should confirm travels, spindle rating and magazine size against that machine's documentation.

02 What size workpiece fits the TS3?

The table is 1,600 x 1,400 mm (63.0 x 55.1 in) with a load capacity of 10,000 kg (22,046 lb). Travels are 2,000 mm (78.7 in) in X, 1,600 mm (63.0 in) in Y and 1,250 mm (49.2 in) in Z, with 600 mm (23.6 in) of W-axis spindle travel.

03 What spindle does the TS3 have?

A 130 mm (5.1 in) boring spindle with an ISO 50 / BT 50 taper, rated 30 kW (40 hp) continuous and 3,500 rpm maximum. No torque figure is listed.

04 How does the TS3 compare with the TX3S?

The TS3 has one size: 2,000 mm (78.7 in) of X travel, a 10,000 kg (22,046 lb) table load and 30 kW (40 hp). The TX3S lists X travel in steps from 2,000 to 6,000 mm, a 20,000 kg table load and 40/46 kW of spindle power.

05 How many tools does the TS3 carry?

The tool magazine is listed at 40 tools as standard, with an 80-tool magazine as an option. The control is listed as Heidenhain TNC 640 or Siemens 840D SL.
