Sharp STC-95

Q: How much does the Sharp STC-95 cost?

The price estimate for the Sharp STC-95 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/sharp-stc-95#price; the request is passed to Sharp or an authorised dealer.

Specs verified 2026-10-04 · sharp-industries.com Updated 2026-10-04

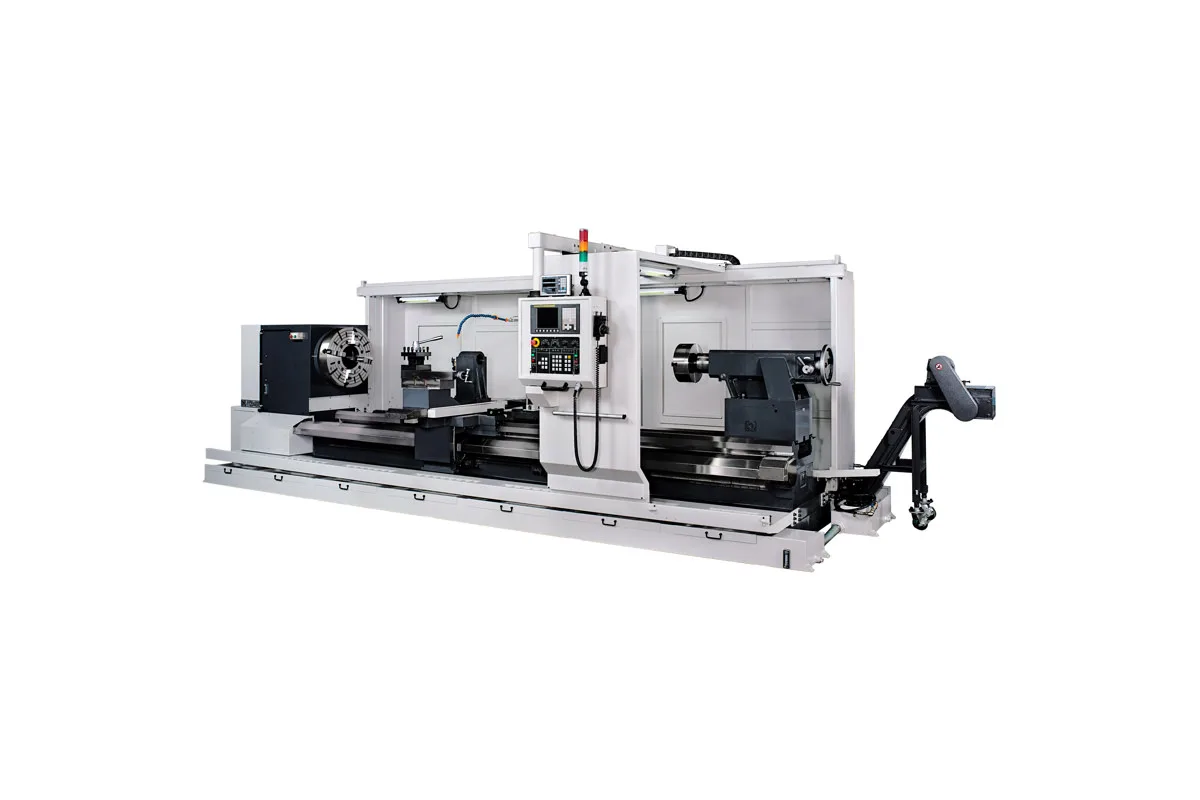

Sharp STC series big bore CNC lathe (series photo shown on the STC-95 page)

Image: sharp-industries.com, Sharp

Key Specifications

Spindle Power

30 hp (STD Fanuc Alpha 22) Opt: 40 hp or 50 hp

Max Turn Length

STC-95160: 157.48 in (4,000 mm); STC-95200: 196.85 in (5,000 mm)

swing over bed

95 in (2413 mm)

distance between centers

STC-95160: 157.48 in (4,000 mm); STC-95200: 196.85 in (5,000 mm)

spindle bore

6 in (152 mm) 9 in (230 mm) 10 in (255 mm) 12 in (305 mm) 15 in (380 mm)

control

FANUC Oi-TF

How much does the Sharp STC-95 cost?

Price estimate

Uncertain

We do not have a price for the Sharp STC-95 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The STC-95 is the heaviest of Sharp's big bore CNC lathes. It swings 95 in (2413 mm) over a 49.21 in (1250 mm) bed, stands 126.0 in (3,200 mm) high and weighs 64,300 lb (29,300 kg) on the shorter bed or 66,100 lb (30,000 kg) on the longer.

Swing is the only capacity figure that grows over the STC-80. Travel does not: X is 15.75 in (400 mm) and Z is 157.48 in (4,000 mm) or 196.85 in (5,000 mm). Nor does power, with a 30 hp spindle motor as standard. The buyer is paying for clearance, the ability to rotate a part close to the full 95 in across, and for the mass and bed width to hold it steady.

That makes workholding the real engineering question. Sharp's page says double chucks are available as options and lists a rear chuck adapter, hydraulic turrets in 4-way, V-8 and V-12 forms and a tailstock base with hydraulic lock bolt, all optional. None of it is part of the base machine, so the quotation should be built around the heaviest part to be run.

There is also an STB-95 with the same swing, the lighter design of the two. The STB-95 sits on a 31.89 in (810 mm) bed with 27.56 in (700 mm) of X travel, and comes in three lengths where the STC-95 comes in two.

Full Specifications

Parameter	Value
Swing Over Bed	95 in (2413 mm)
Distance Between Centers	STC-95160: 157.48 in (4,000 mm); STC-95200: 196.85 in (5,000 mm)
Max Turning Length	STC-95160: 157.48 in (4,000 mm); STC-95200: 196.85 in (5,000 mm)
Spindle Bore	6 in (152 mm) 9 in (230 mm) 10 in (255 mm) 12 in (305 mm) 15 in (380 mm)
CNC Control	FANUC Oi-TF
Bed Way Type	Multiple guides
Bed Width	49.21 in (1250 mm)
Bed Length	STC-95160: 236.22 in (6000 mm); STC-95200: 275.59 in (7000 mm)
X Axis Travel	15.75 in (400 mm)
Z Axis Travel	STC-95160: 157.48 in (4,000 mm); STC-95200: 196.85 in (5,000 mm)
X Axis Ballscrew Diameter	1.57 in (40 mm)
Z Axis Ballscrew Diameter	2.48 in (63 mm)
Spindle Motor Power	30 hp (STD Fanuc Alpha 22) Opt: 40 hp or 50 hp
X Axis Motor	5.3 hp (Fanuc AC servo)
Z Axis Motor	9.3 hp (Fanuc AC servo)
Hydraulic Pump Motor	2 hp (1.5 kW)
Coolant Pump Motor	1.7 hp (1.27 kW)
Machine Weight	STC-95160: 64,300 lb (29,300 kg); STC-95200: 66,100 lb (30,000 kg)
Machine Length	STC-95160: 320.9 in (8,150 mm); STC-95200: 360.2 in (9,150 mm)
Machine Width	150.4 in (3,820 mm)
Machine Height	126.0 in (3,200 mm)

Specifications sourced from sharp-industries.com — verified 2026-10-04

Strengths & Limitations

Strengths

95 in (2413 mm) swing, the largest Sharp lists
64,300 lb (29,300 kg) to 66,100 lb (30,000 kg) of machine weight
49.21 in (1250 mm) bed with multiple guides
Spindle supported by one ball bearing and two tapered roller bearings
Z-axis travel covers the full 196.85 in (5,000 mm) on the STC-95200

Limitations

126.0 in (3,200 mm) high, before crane hook height
X travel stays at 15.75 in (400 mm)
Standard motor is 30 hp; 40 hp or 50 hp are options
Roll cutting diameter rows are not consistent on Sharp's page

Best For

Parts approaching 95 in diameter between centers Large drums, rolls and vessel sections Heavy pipe with double chuck options Plants already equipped for 30,000 kg machines

Frequently Asked Questions

01 How large is the STC-95?

Swing over the bed is 95 in (2413 mm). The machine is 150.4 in (3,820 mm) wide and 126.0 in (3,200 mm) high; length with chip conveyor is 320.9 in (8,150 mm) for the shorter bed and 360.2 in (9,150 mm) for the longer.

02 What is the difference between the STC-95 and the STB-95?

The STC-95 has a 49.21 in (1250 mm) bed, 15.75 in (400 mm) of X travel and two lengths. The STB-95 has a 31.89 in (810 mm) bed, 27.56 in (700 mm) of X travel, three lengths up to 236.22 in (6,000 mm) between centers and a height of 115.4 in (2,931 mm).

03 How long a part can the STC-95 turn?

157.48 in (4,000 mm) on the STC-95160 or 196.85 in (5,000 mm) on the STC-95200. Those figures are the distance between centers, the maximum cutting length and the Z-axis travel alike, since the tailstock runs on bedways separate from the cross slide.

04 What spindle bore can the STC-95 be ordered with?

The table lists 6 in (152 mm), 9 in (230 mm), 10 in (255 mm), 12 in (305 mm) and 15 in (380 mm). Sharp's feature text repeats those five sizes and notes that double chucks are available as options.
