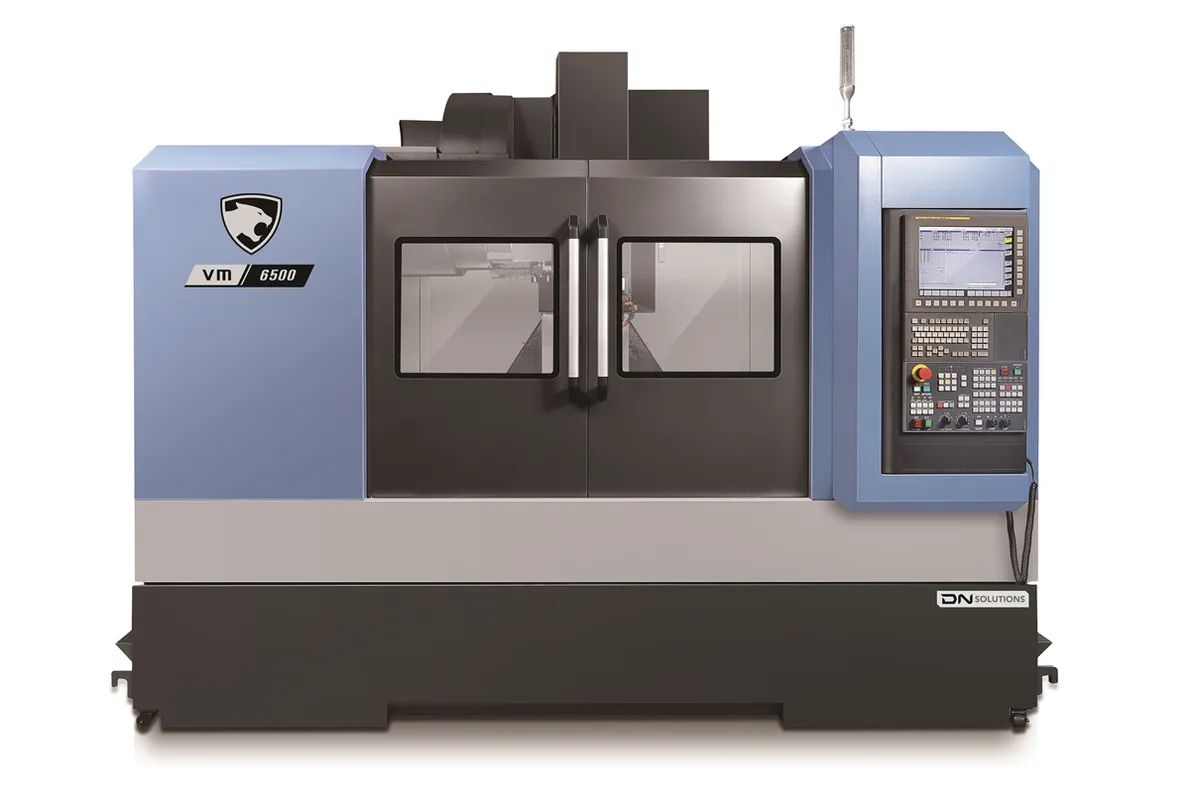

DN Solutions VM 6500

$120,000 - $170,000 Updated 2026-03-19

Key Specifications

Table Size

1,400 x 670 mm (55.1 x 26.4 in)

Spindle Power

15.6 kW (20.9 hp)

x axis travel

1,270 mm (50 in)

y axis travel

670 mm (26.4 in)

z axis travel

625 mm (24.6 in)

rapid traverse x

30 m/min (1,181 in/min)

Overview

The DN Solutions VM 6500 is a heavy-duty vertical machining center built on box-way construction for shops that prioritize rigidity and cutting authority over speed. With 1,270 x 670 x 625 mm travels on X, Y, and Z, it occupies the space between mid-size production VMCs and large-format machines, and it fills that space with iron. The 9,000 kg (19,842 lb) machine weight is heavy for this travel class, and every kilo of it goes toward vibration damping and accuracy retention.

The spindle runs at 12,000 RPM with 15.6 kW (20.9 hp) and 165.5 Nm (122.1 ft-lb) of torque through what appears to be an ISO 40 or BT40 taper. That torque number is notably high — over 165 Nm puts the VM 6500 in a different league than most 40-taper VMCs for face milling and slotting in steel. If you're running 4-inch face mills in cast iron all day, this machine won't break a sweat.

The 1,400 x 670 mm table holds workpieces up to 1,000 kg, which covers most mid-size part families. Rapids are 30 m/min on X and Y with 24 m/min on Z — not the fastest numbers around, but the box-way construction explains the tradeoff. Box ways prioritize damping and load-carrying capacity over speed, and for the heavy cutting this machine is designed for, that's the right call.

DN Solutions pairs the VM 6500 with the Fanuc 0i-Plus control and iHMI touchscreen. The 2,674 x 3,350 mm footprint is compact considering the machine weighs nearly 10 tons. The VM 6500 competes against the Mazak VCN-530A, Okuma GENOS M560-V, and Hyundai Wia KF5600 in the heavy-duty mid-size VMC segment. For shops that machine steel and cast iron as their primary materials, the box-way VM 6500 is a serious contender.

Full Specifications

Parameter	Value
X Axis Travel	1,270 mm (50 in)
Y Axis Travel	670 mm (26.4 in)
Z Axis Travel	625 mm (24.6 in)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Y	30 m/min (1,181 in/min)
Rapid Traverse Z	24 m/min (945 in/min)
Spindle Speed	12,000 RPM
Spindle Motor Power	15.6 kW (20.9 hp)
Spindle Torque	165.5 Nm (122.1 ft-lb)
Table Size	1,400 x 670 mm (55.1 x 26.4 in)
Max Table Load	1,000 kg (2,205 lb)
Machine Dimensions	2,674 x 3,350 x 3,107 mm
Machine Weight	9,000 kg (19,842 lb)
CNC Control	Fanuc 0i-Plus with 15" iHMI touchscreen
Max Spindle Speed	12000 r/min
X Axis Travel Distance	1270 mm
Y Axis Travel Distance	670 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle Torque
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	VM 6500

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

165.5 Nm spindle torque is exceptionally high for a 40-taper VMC — handles aggressive face milling in steel and cast iron
Box-way construction on all axes delivers superior damping for heavy interrupted cuts
9,000 kg machine weight provides thermal stability and rigidity beyond typical VMCs in this travel class
1,270 x 670 mm X/Y travels cover a broad range of mid-to-large parts
1,000 kg table load handles heavy fixtures and castings comfortably
Compact footprint relative to the machine's weight and capability

Limitations

30/24 m/min rapids are slower than linear-guide VMCs — non-cutting time is higher on multi-feature parts
15.6 kW spindle power is moderate despite the high torque — sustained heavy roughing may hit the power limit
Box-way construction requires periodic maintenance including way scraping and adjustment
9,000 kg weight needs floor assessment — not all shop floors support this load per square meter

Best For

Steel and cast iron shops where rigidity and torque matter more than spindle speed Die and mold facilities running heavy roughing on hardened materials Production environments with interrupted cuts where vibration damping prevents chatter Shops looking for a box-way VMC that holds tolerances over years of heavy use Facilities machining mid-to-large parts that need high torque for face milling and slotting Replacement for aging box-way VMCs where new controls and spindle technology are needed

Frequently Asked Questions

01 What does a DN Solutions VM 6500 cost?

New VM 6500 machines run $120,000-$170,000 depending on options. The box-way construction adds cost versus linear-guide machines, but you're paying for long-term accuracy retention and cutting rigidity.

02 How does the VM 6500 compare to a linear-guide VMC?

The VM 6500's box-way construction offers superior vibration damping and load-carrying capacity versus linear guides. Linear-guide machines counter with faster rapids, lower maintenance, and often lower price. For heavy steel cutting, box ways win. For high-speed aluminum work, linear guides are the better choice.

03 Is 15.6 kW enough spindle power?

For most applications that leverage the high torque, yes. The 165.5 Nm of torque is available at lower RPMs, where the 15.6 kW power is sufficient. If you're consistently running at high RPM and high torque simultaneously, you could reach the power ceiling. For face milling, slotting, and heavy roughing at moderate speeds, it's well matched.

04 What's the maintenance like on box ways?

Box-way machines need periodic way scraping and oil system maintenance. Expect to check way lubrication regularly and have ways rescraped every 5-8 years under heavy production use. The tradeoff is that box ways maintain their accuracy for decades when properly maintained, unlike linear guides that may need rail and block replacement.
