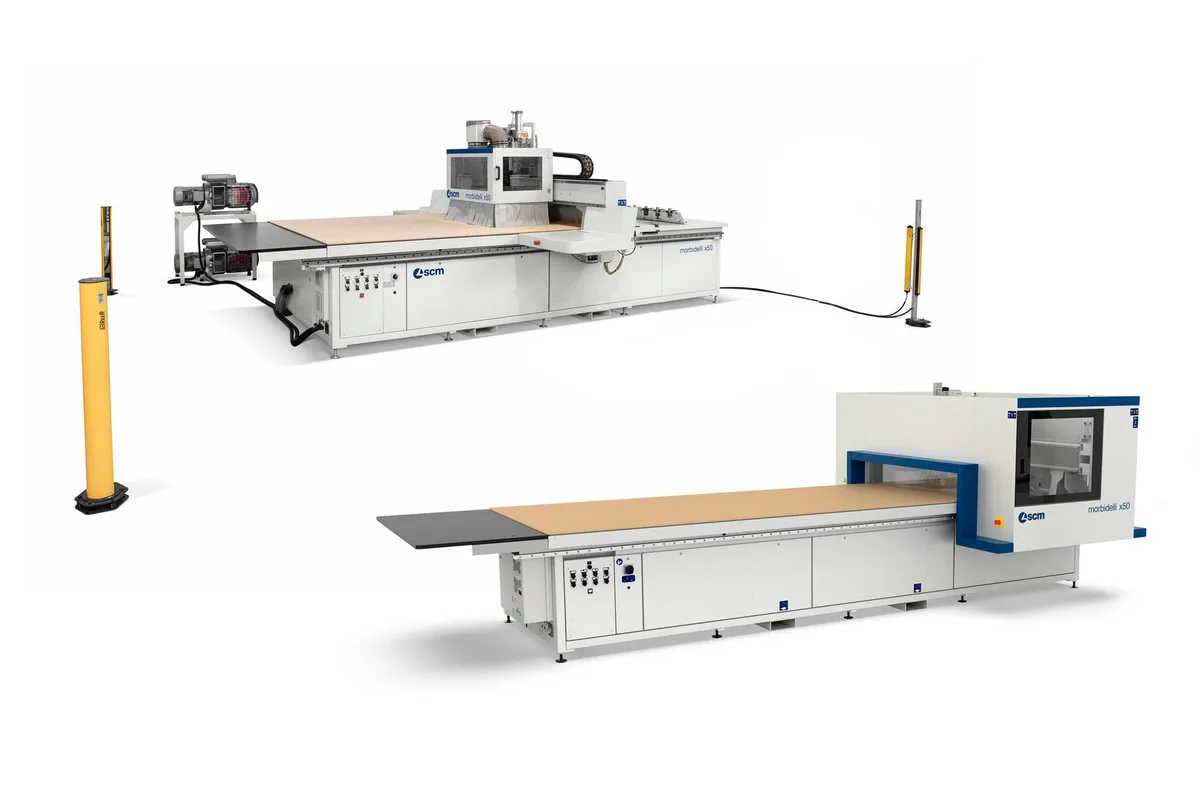

SCM Morbidelli X50
Image: scmgroup.com, SCM
Key Specifications
Tool Capacity
working areas xy
vectorial speed pro speed
vectorial speed pro space
z axis panel passage
spindle power 3 axis
How much does the SCM Morbidelli X50 cost?
Price estimate
We do not have a price for the SCM Morbidelli X50 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli X50 is the entry nesting machining center of the range, which SCM aims at companies taking a first step into nesting. It is a 3-axis machine with a routing spindle of up to 9.5 kW (12.2 hp) and a tool changer of up to 12 positions.
Five table sizes are listed, and they map onto common sheet formats: 2556x1296 mm (100x51 in), 3756x1596 mm (147x62.8 in), 3756x1896 mm (147x74.6 in), 3156x2216 mm (124x87 in) and 4356x2216 mm (171x87 in). The Z-axis panel passage is 140 mm (5.5 in), enough for sheet goods on a spoilboard and little else.
Vectorial speed in X-Y is 57 m/min (186 ft/min) in the PRO-SPEED version and 47 m/min (155 ft/min) in PRO-SPACE. The drilling unit is small, with up to 12 independent vertical spindles and up to 6 independent horizontal spindles at up to 8000 rpm, and a single integrated blade in X of 125 mm (4.9 in).
Much of what SCM says about this model concerns hold-down. A deflector in the worktable distributes the vacuum evenly across the surface, the SMART CUT algorithm orders the cuts to keep pieces clamped, and a spoilboard management system reports when the spoilboard needs to be rectified or replaced. A removable XS Device references small pieces that do not reach the stops.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xy | 2556x1296 mm (100x51 in) / 3756x1596 mm (147x62.8 in) / 3756x1896 mm (147x74.6 in) / 3156x2216 mm (124x87 in) / 4356x2216 mm (171x87 in) |
| Vectorial Speed Pro Speed | 57 m/min (186 ft/min) |
| Vectorial Speed Pro Space | 47 m/min (155 ft/min) |
| Z Axis Panel Passage | 140 mm (5.5 in) |
| Spindle Power 3 Axis | up to 9.5 kW (12.2 hp) |
| Spindle Speed | up to 24000 rpm |
| Tool Capacity | up to 12 positions (available tools on tool changer) |
| Drilling Vertical Spindles | up to 12 independent vertical spindles |
| Drilling Horizontal Spindles | up to 6 independent horizontal spindles |
| Drilling Rotation Speed | up to 8000 rpm |
| Integrated Blades | up to 1 |
| Integrated Blade in X Diameter | 125 mm (4.9 in) |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Five table sizes from 2556x1296 mm (100x51 in) to 4356x2216 mm (171x87 in)
- Vacuum deflector distributes hold-down evenly across the worktable
- SMART CUT cutting sequence improves the clamping of small pieces
- Spoilboard management system reports when the spoilboard needs attention
Limitations
- 3-axis routing only, with up to 9.5 kW (12.2 hp)
- Tool changer limited to 12 positions
- Z-axis panel passage of 140 mm (5.5 in) restricts the machine to sheet work
- Drilling unit tops out at 12 vertical and 6 horizontal spindles, with 1 integrated blade
Best For
Frequently Asked Questions
01
SCM describes it as a CNC nesting machining center conceived for companies taking a first step into nesting technology. Its table lists a 3-axis spindle of up to 9.5 kW (12.2 hp) and a tool changer of up to 12 positions.
02
Five X-Y working areas: 2556x1296 mm (100x51 in), 3756x1596 mm (147x62.8 in), 3756x1896 mm (147x74.6 in), 3156x2216 mm (124x87 in) and 4356x2216 mm (171x87 in). The Z-axis panel passage is 140 mm (5.5 in) for all of them.
03
The vectorial speed of the X-Y axes is 57 m/min (186 ft/min) in the PRO-SPEED version and 47 m/min (155 ft/min) in the PRO-SPACE version. The routing spindle turns at up to 24000 rpm.
04
It is a removable device for referencing small pieces on the spoilboard. SCM presents it as the answer for small pieces that do not reach the stops of the table.
