Onsrud 98RH
Image: cronsrud.com, Onsrud
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
table size x
table size y
machine length
How much does the Onsrud 98RH cost?
Price estimate
We do not have a price for the Onsrud 98RH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

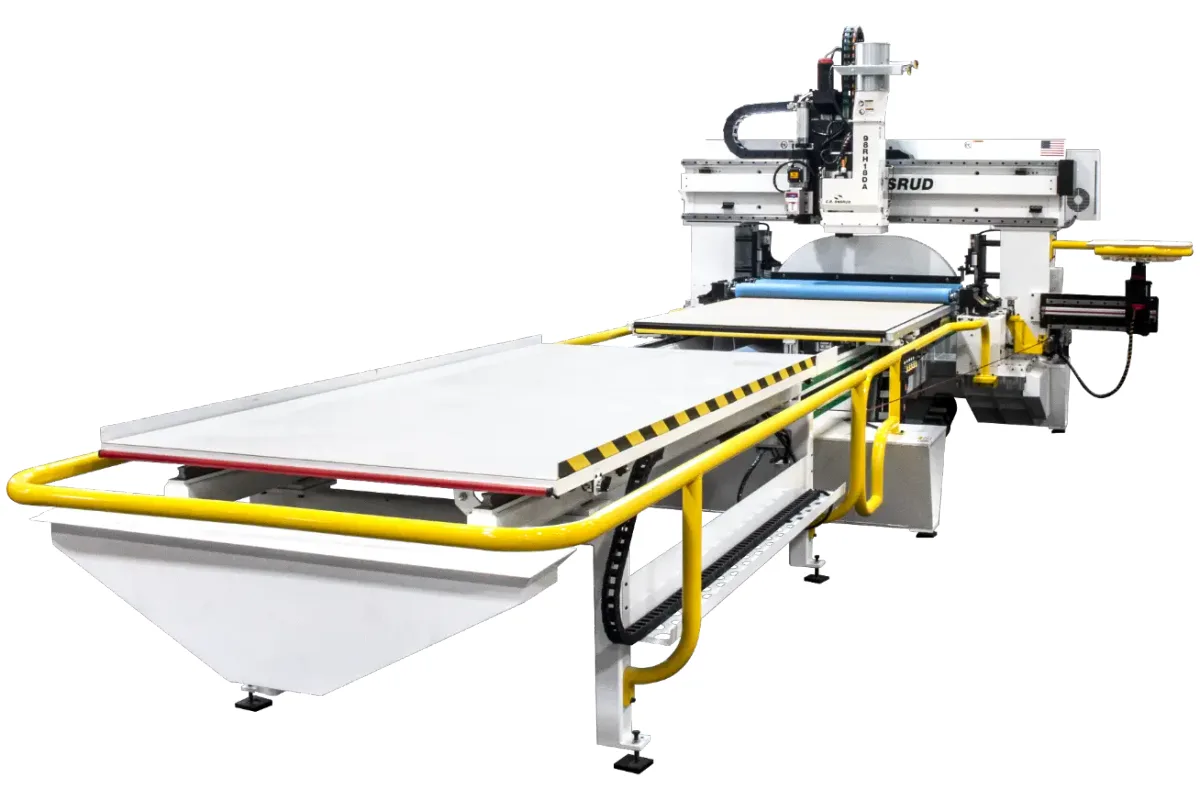

The Onsrud 98RH is the eight-foot model of the RH-Series, Onsrud's roller hold-down routers. The table is 96 in (2,438 mm) by 48 in (1,219 mm), and four rollers press the material down beside the cut while an 18 hp (13.4 kW), 24,000 rpm spindle works between them.
Roller hold-down solves two problems vacuum alone does not. Stacked sheets slip, because vacuum only grips the bottom one. Warped sheets leak. Onsrud places two retractable pairs of rollers on the leading and trailing edges of the cutting envelope, each with regulated pressure, so a stack is clamped right where the tool is. For single sheets, plastics or aluminum the rollers can be disengaged and the table used as a normal vacuum table with 2 zones.
It is a 3-axis fixed-bridge machine, and a long one for its table: 250 in (6,350 mm), which is longer than either of the larger RH models. Width is 127 in (3,226 mm) and height 92 in (2,337 mm).
Twelve tools and an 11 in (279 mm) Z-stroke are standard. The upgrades are a 24 hp (17.9 kW) spindle, a second spindle and a second tool changer.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size X | 96 in (2,438 mm) |
| Table Size Y | 48 in (1,219 mm) |
| Machine Length | 250 in (6,350 mm) |
| Machine Width | 127 in (3,226 mm) |
| Machine Height | 92 in (2,337 mm) |
| Vacuum Zones Standard | 2 |
| Spindle Motor Power | 18 hp (13.4 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 12 (larger capacity tool changers optional) |
| Z Stroke | 11 in (279 mm) |
| Spindle Power Optional | 24 hp (17.9 kW) |
| Spindles Optional | 2 |
| Second Tool Changer | Optional |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Four rollers hold stacked or warped sheets at the cut
- Rollers disengage for single sheets, plastics or aluminum
- 18 hp (13.4 kW) standard spindle, 24 hp (17.9 kW) optional
- Table matches a standard sheet at 96 in (2,438 mm) by 48 in (1,219 mm)
Limitations
- Listed length of 250 in (6,350 mm), more than the larger 122RH
- Table has no margin beyond a 96 in (2,438 mm) by 48 in (1,219 mm) sheet
- Z-stroke is 11 in (279 mm) with no longer option listed
Best For
Frequently Asked Questions
01
Two retractable pairs of rollers sit on the leading and trailing edges of the cutting envelope and press down with regulated pressure. They stop the top sheet of a stack from slipping and flatten warped sheets while the spindle cuts between them.
02
96 in (2,438 mm) by 48 in (1,219 mm) with 2 vacuum zones. The machine is 250 in (6,350 mm) long, 127 in (3,226 mm) wide and 92 in (2,337 mm) high.
03
Yes. Onsrud states that the rollers can be disengaged when cutting single sheets or materials such as plastics or aluminum, leaving the vacuum table to hold the work.
04
An 18 hp (13.4 kW) spindle at up to 24,000 rpm is standard. A 24 hp (17.9 kW) spindle and a second spindle are listed as upgrades, with a 12-tool changer as standard.
