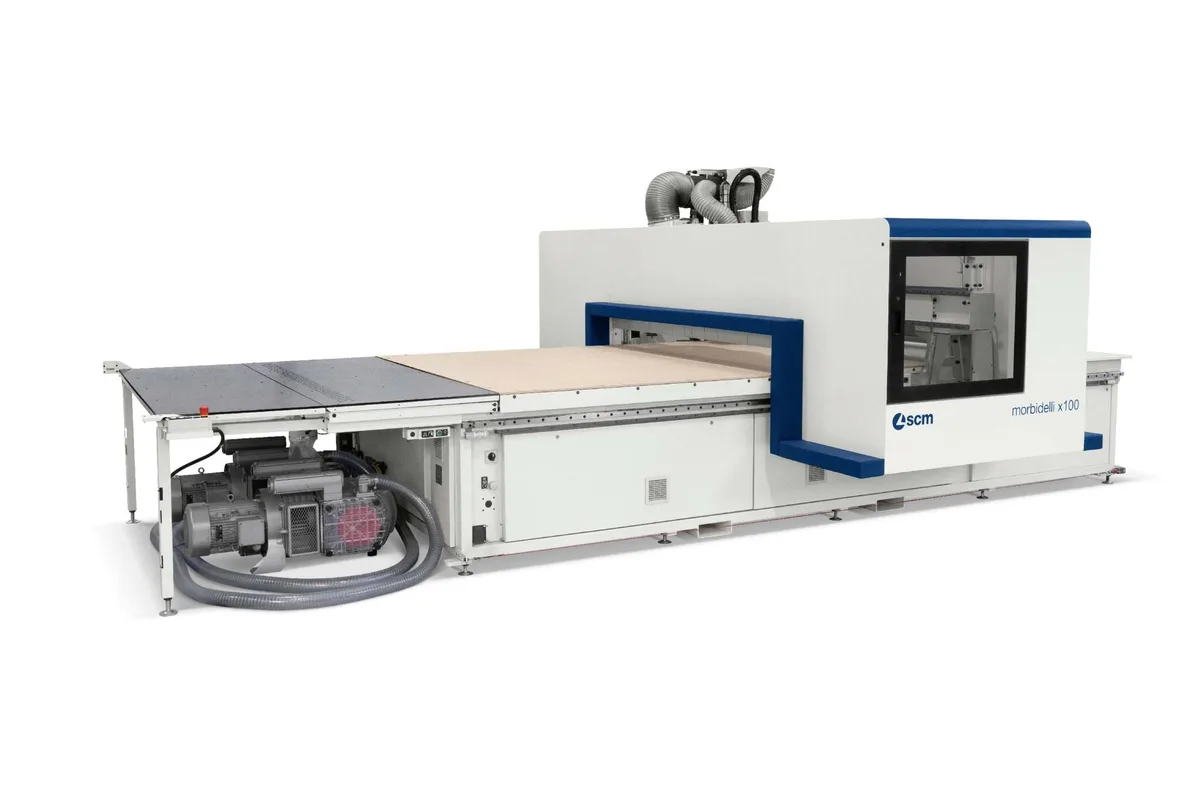

SCM Morbidelli X100
Image: scmgroup.com, SCM
Key Specifications
Tool Capacity
working areas xy
vectorial speed pro space
z axis panel passage
spindle power 3 4 axis
spindle speed
How much does the SCM Morbidelli X100 cost?
Price estimate
We do not have a price for the SCM Morbidelli X100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli X100 sits in the middle of the nesting range. Against the entry model it brings a stronger spindle, up to 15 kW (20.5 hp) on 3 or 4 axes, and a tool changer of up to 31 positions; the Morbidelli X50 is listed with up to 12 positions (available tools on tool changer).
Its table sizes are the five that the range shares, from 2556x1296 mm (100x51 in) to 4356x2216 mm (171x87 in), and the Z-axis panel passage is 150 mm (5.9 in). SCM lists only a PRO-SPACE vectorial speed for this model, 70 m/min (230 ft/min).
Two features widen what a nesting table can do. The X-PODs are suction cups that let a part be raised and machined without removing the spoilboard, so an edge profile or a horizontal boring does not force a table changeover. Vacuum management lets the programmer switch table areas on or off, so suction is not lost where no sheet lies.
Drilling is handled by up to 16 independent vertical and up to 8 independent horizontal spindles at up to 8000 rpm, with up to 2 integrated blades and a blade diameter in X of 125 mm (4.9 in). SCM offers several versions for different material flows.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xy | 2556x1296 mm (100x51 in) / 3756x1596 mm (147x62.8 in) / 3756x1896 mm (147x74.6 in) / 3156x2216 mm (124x87 in) / 4356x2216 mm (171x87 in) |
| Vectorial Speed Pro Space | 70 m/min (230 ft/min) |
| Z Axis Panel Passage | 150 mm (5.9 in) |
| Spindle Power 3 4 Axis | up to 15 kW (20.5 hp) |
| Spindle Speed | up to 24000 rpm |
| Tool Capacity | up to 31 positions (available tools on tool changer) |
| Drilling Vertical Spindles | up to 16 independent vertical spindles |
| Drilling Horizontal Spindles | up to 8 independent horizontal spindles |
| Drilling Rotation Speed | up to 8000 rpm |
| Integrated Blades | up to 2 |
| Integrated Blade in X Diameter | 125 mm (4.9 in) |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Routing spindle of up to 15 kW (20.5 hp) on 3 or 4 axes
- Tool changer with up to 31 positions
- X-PODs allow machining without removing the spoilboard
- Vacuum areas can be switched on or off from the program
- PRO-SPACE vectorial speed of 70 m/min (230 ft/min)
Limitations
- No 5-axis spindle is listed; the Morbidelli X200/X400 lists 13.5 kW (18.4 hp) (5-axis, x400 only)
- Only a PRO-SPACE speed is given, with no faster PRO-SPEED figure
- Z-axis panel passage of 150 mm (5.9 in)
Best For
Frequently Asked Questions
01
The Morbidelli X50 lists a 3-axis spindle of up to 9.5 kW (12.2 hp) and up to 12 positions on the tool changer. This model lists up to 15 kW (20.5 hp) on 3 or 4 axes, up to 31 positions and a larger drilling unit, on the same five table sizes.
02
SCM describes them as a way to carry out any machining process without removing the spoilboard. A cross laser function references both the suction cups and the piece to be machined.
03
Up to 16 independent vertical spindles and up to 8 independent horizontal spindles at up to 8000 rpm. The unit takes up to 2 integrated blades, and the integrated blade in X has a diameter of 125 mm (4.9 in).
04
While programming, the operator sets the parameters for the job and chooses which areas of the table to turn on or off during processing. SCM states that the vacuum then no longer disperses in areas where it is not needed.
