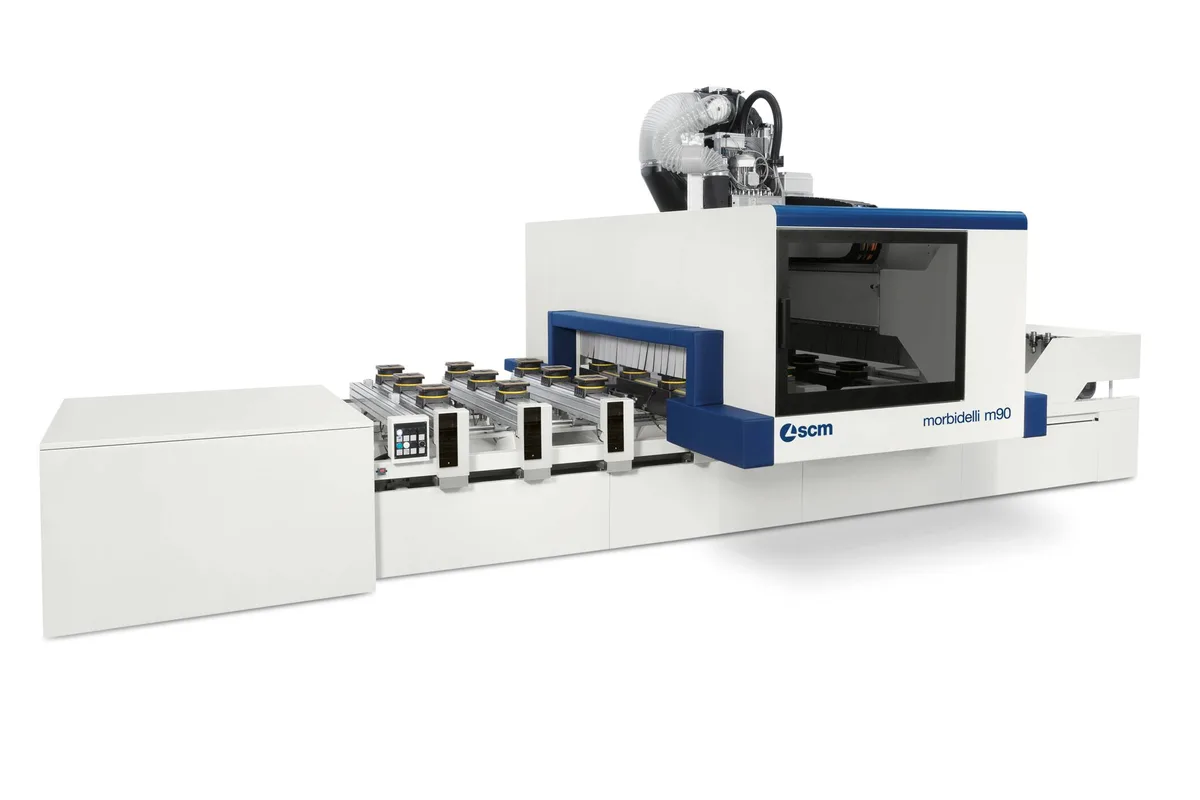

SCM Morbidelli M90
Image: scmgroup.com, SCM
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
working area xy
y axis panel clearance
vectorial speed pro space
How much does the SCM Morbidelli M90 cost?
Price estimate
We do not have a price for the SCM Morbidelli M90 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli M90 is the small machine of the range: a single size with a 3115 x 1320 mm working area, 3-4 axes technology and no 5-axis option in the table. SCM gives its total length as 6 meters with no side protections.
That fixed size defines who it suits. The Y-axis panel clearance is 1,600 mm (63.0 in), wider than the working area, so a panel broader than the routing field can still pass under the gantry. Z-axis panel clearance is 180 mm (7.1 in). The table lists only the Pro-Space version, with a vectorial speed of 56 m/min.
On the cutting side there is a routing unit of up to 14 kW (19 hp) at 24000 rpm, and SCM says routing units of different power can be fitted. Tool changers hold up to 25 places. The drilling unit carries up to 21 independent vertical and 10 independent horizontal spindles at 8000 rpm, plus an integrated blade in X with a diameter of 125 mm (4.9 in).
Step up to the Morbidelli M100/200 and the same drilling count comes with longer frames and a tool changer of 44 places max. (m100); 60 places max. (m200).
Full Specifications
| Parameter | Value |
|---|---|
| Working Area Xy | 3115 x 1320 mm |
| Y Axis Panel Clearance | 1,600 mm (63.0 in) |
| Vectorial Speed Pro Space | 56 m/min |
| Z Axis Panel Clearance | 180 mm (7.1 in) |
| Drilling Vertical Spindles | up to 21 independent vertical spindles |
| Drilling Horizontal Spindles | up to 10 independent horizontal spindles |
| Drilling Rotation Speed Max | 8000 rpm |
| Integrated Blade in X Diameter | 125 mm (4.9 in) |
| Spindle Motor Power | 14 kW (19 hp) max. |
| Max Spindle Speed | 24000 rpm |
| Tool Capacity | up to 25 places (available tools on tool changers) |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6 meters total length with no side protections, by SCM's figure
- Up to 21 independent vertical and 10 independent horizontal drilling spindles on a compact frame
- Y-axis panel clearance of 1,600 mm (63.0 in) on a 3115 x 1320 mm working area
- Routing unit of up to 14 kW (19 hp) at 24000 rpm
Limitations
- One size only, 3115 x 1320 mm
- 3-4 axes technology; no 5-axis head is listed
- Tool changers hold up to 25 places, well under the 60 places max. of the Morbidelli M220
- Only the Pro-Space speed of 56 m/min is listed
Best For
Frequently Asked Questions
01
It has a single X-Y working area of 3115 x 1320 mm, with a Y-axis panel clearance of 1,600 mm (63.0 in) and a Z-axis panel clearance of 180 mm (7.1 in). SCM states a total length of 6 meters with no side protections.
02
No 5-axis unit appears on its page. SCM describes the machine as having 3-4 axes technology, and the table lists one routing unit of up to 14 kW (19 hp) at 24000 rpm. SCM adds that routing units of different power rate can be set up.
03
Up to 21 independent vertical spindles and up to 10 independent horizontal spindles, turning at a maximum of 8000 rpm. The unit also has an integrated blade in X with a diameter of 125 mm (4.9 in). SCM claims a drilling cycle time saving of up to 60%.
04
The table lists up to 25 places for the available tools on the tool changers. For comparison, the Morbidelli M220 is listed with 60 places max. (available tools on tool changer).
