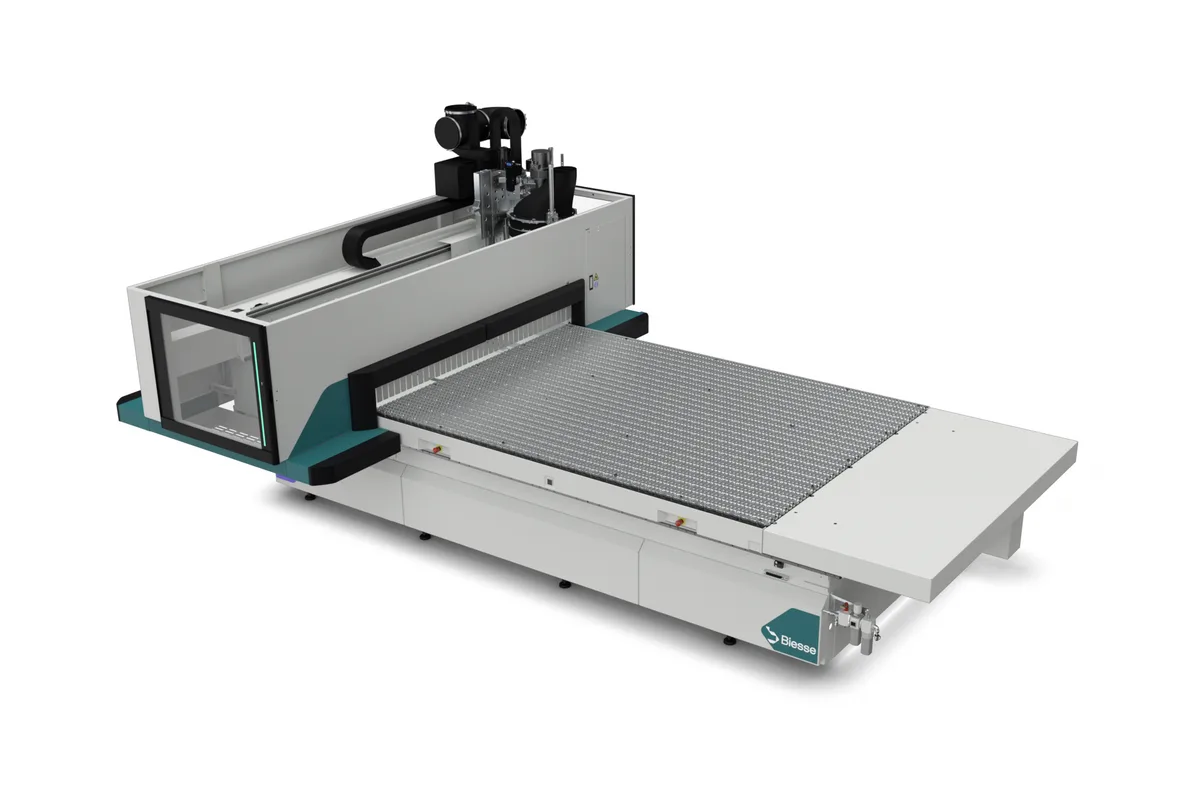

Biesse Explora Multi Up N A
Image: biesse.com, Biesse
Key Specifications
sizes
working fields xy 1224
working fields xy 1531
working fields xy 1536
working fields xy 2231
working fields xy 2243
How much does the Biesse Explora Multi Up N A cost?
Price estimate
We do not have a price for the Biesse Explora Multi Up N A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Biesse Explora Multi Up N A is a flat-table machining centre from the maker's Materia range that can carry more than a router spindle. Operating units with 3 to 5 axes are listed, along with an external vertical axis for an oscillating cutting system. Five working fields run from 2,465 x 1,260 mm (97.0 x 49.6 in) to 4,300 x 2,205 mm (169.3 x 86.8 in), with 250 mm (9.8 in) of workpiece clearance.
The oscillating cutting system is the reason to choose it over a plain nesting machine. A cutter on its own vertical axis handles soft and fibrous sheet that a rotating tool would tear or melt, and Biesse pairs it with a felt worktable for materials processed with cutting units. For breathable materials there is a high-capacity worktable, and clamping systems hold small pieces. Decide early which of these the work needs, because the hold-down method limits what the machine can run.
Speeds match the wood-side Rover Multi Up N G: the full bumper version runs 25 m/min in X and 60 m/min in Y for a 65 m/min vector speed, and the high speed version 85 m/min in X for 105 m/min vector. Z is 20 m/min in both. Acceleration is listed at 5 m/s² in X and 2.5 m/s² in Y. With the sweeping arm fitted, clearance drops to 170 mm (6.7 in).
The frame is electro-welded steel in a closed-ring design. Biesse states the machine is CE-certified according to UNI EN ISO 19085 and that the operator can reach all sides with no obstacles on the ground. Patented blowing systems and extraction deal with dust and debris. Against the Explora Multi Go N K, which lists 170 mm (6.7 in) of clearance and a single X speed of 25 m/min, this model adds height, speed and the multi-axis and cutting options.
Full Specifications
| Parameter | Value |
|---|---|
| Sizes | 1224, 1531, 1536, 2231, 2243 |
| Working Fields Xy 1224 | 2,465 x 1,260 mm (97.0 x 49.6 in) |
| Working Fields Xy 1531 | 3,100 x 1,560 mm (122.0 x 61.4 in) |
| Working Fields Xy 1536 | 3,765 x 1,560 mm (148.2 x 61.4 in) |
| Working Fields Xy 2231 | 3,100 x 2,205 mm (122.0 x 86.8 in) |
| Working Fields Xy 2243 | 4,300 x 2,205 mm (169.3 x 86.8 in) |
| Max Workpiece Clearance | 250 mm (9.8 in) |
| Max Workpiece Clearance with Sweeping Arm | 170 mm (6.7 in) |
| Linear Speed Full Bumper | X 25 m/min, Y 60 m/min, Z 20 m/min; vector 65 m/min |
| Linear Speed High Speed | X 85 m/min, Y 60 m/min, Z 20 m/min; vector 105 m/min |
| Acceleration | X 5 m/s², Y 2.5 m/s² |
Specifications sourced from biesse.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Operating units with 3 to 5 axes, plus an external vertical axis for an oscillating cutting system
- 250 mm (9.8 in) maximum workpiece clearance
- High speed version: 85 m/min in X, 105 m/min vector speed
- Worktable options for breathable materials, felt for cutting units, and clamping for small pieces
- Electro-welded steel frame with a closed-ring design
Limitations
- Full bumper version runs X at 25 m/min and 65 m/min vector
- Y acceleration of 2.5 m/s² is well below the 5 m/s² listed for X
- Sweeping arm cuts clearance to 170 mm (6.7 in)
- No spindle power or speed is published on the page
Best For
Frequently Asked Questions
01
Yes. Biesse lists an external vertical axis that enables an oscillating cutting system, alongside operating units with 3 to 5 axes. A felt worktable is offered for materials processed with cutting units. That combination lets one machine rout rigid sheet and cut soft sheet, provided the worktable fitted suits both jobs.
02
Three kinds are named: a high-capacity worktable for breathable materials, a felt worktable for materials processed with cutting units, and clamping systems for securely holding small pieces. Which one a machine has decides what it can hold, so match the table to the material before anything else.
03
Five: 2,465 x 1,260 mm (97.0 x 49.6 in), 3,100 x 1,560 mm (122.0 x 61.4 in), 3,765 x 1,560 mm (148.2 x 61.4 in), 3,100 x 2,205 mm (122.0 x 86.8 in) and 4,300 x 2,205 mm (169.3 x 86.8 in). Clearance is 250 mm (9.8 in) on every size, or 170 mm (6.7 in) with the sweeping arm.
04
The Explora Multi Go N K lists 170 mm (6.7 in) of clearance, one speed set with 25 m/min in X, and four working fields. This machine has 250 mm (9.8 in) of clearance, a high speed version at 85 m/min in X, five fields, and the 3 to 5 axis and oscillating cutting options.
05
Biesse states the Explora Multi Up N A is CE-certified according to UNI EN ISO 19085 and that a network of sensors managed by the machine guards the operator in every processing phase. The layout lets the operator reach all sides with no obstacles on the ground. In the full bumper version X speed is limited to 25 m/min.
