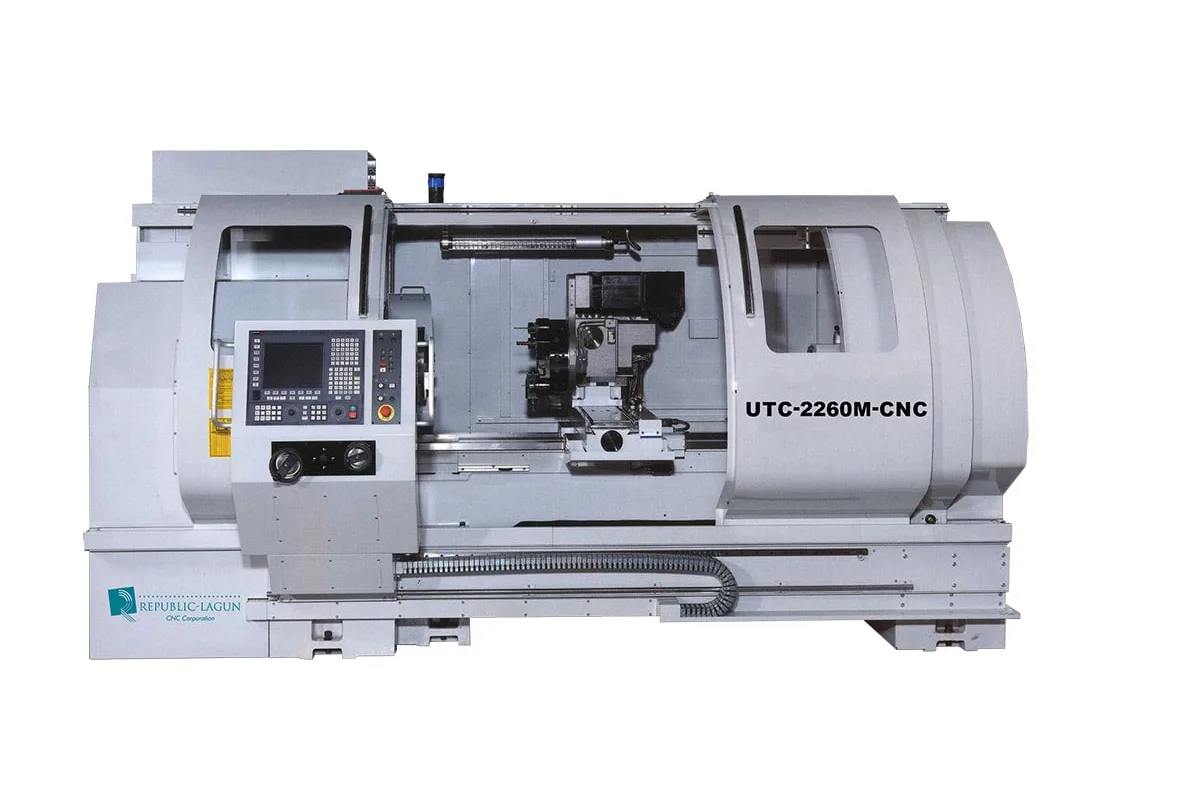

Republic Lagun UTC-2260
Image: lagun.com, Republic Lagun
Key Specifications
Spindle Taper
Spindle Power
Max Turn Length
Accuracy
Repeatability
swing over bed
How much does the Republic Lagun UTC-2260 cost?
Price estimate
We do not have a price for the Republic Lagun UTC-2260 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Republic Lagun UTC-2260 is built around its spindle. Lagun Engineering describes an extra-large 3.58 in (91 mm) spindle bore with an A2-8 spindle mount, on a Universal Turning Center with a Ø 22 in (550 mm) swing and 53.93 in (1,370 mm) between centers.
That bore lets sizeable bar and tube pass through the headstock, which suits the long-shaft and chucking mix the maker names as the machine's purpose. The spindle is carried in a single cylinder bearing housing with double row cylindrical roller bearings and angular contact thrust bearings, grease lubricated, and the description mentions a pressure pump in the base that lubricates the head with oil. Speed is infinitely variable over 35-3,500 rpm with constant surface speed, from an AC 12 HP (9 kW) wide range Fanuc AC spindle motor.
Turning capacity is Ø 12.8 in (325 mm) in diameter and 46.45 in (1,180 mm) in length. X travel is 11.8 in (300 mm) on a full-length slide that the maker says rides on Turcite surfaces, and Z travel is 50.4 in (1,280 mm) on a precision ground ball screw listed at Ø 1.97 in (50 mm). The tailstock has a Ø 3.35 in (85 mm) quill with #5 MT taper and 7 in (178 mm) of travel.
The bed casting sits on a cast iron pedestal and has two V and two flat ways, induction hardened and ground. Net weight is 4,400 kg (9,700 lb). Standard tooling is a manual 4-way tool post for 1 in (25 mm) tools, so a turret, if needed, has to be raised with the maker. Coolant capacity is 31.70 gal (120 liters).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø 22 in (550 mm) |
| Distance Between Centers | 53.93 in (1,370 mm) |
| Max Turning Length | 46.45 in (1,180 mm) |
| Max Turning Diameter | Ø 12.8 in (325 mm) |
| Bed Width | 13.58 in (345 mm) |
| Bed Ways | 2 V, 2 flat |
| X Axis Travel | 11.8 in (300 mm) |
| Z Axis Travel | 50.4 in (1,280 mm) |
| Spindle Nose | ASA A2-8, Ø 3.8 in (97 mm) |
| Spindle Taper | Taper 1/20 |
| Spindle Speeds | Infinitely variable |
| Spindle Speed Range | 35-3,500 rpm |
| Spindle Motor Power | AC 12 HP (9 kW) wide range heavy duty Fanuc AC spindle motor |
| Tool Post | Manual 4-way tool post (STD) |
| Turning Tool Size | 1 in (25 mm) |
| Tailstock Quill Diameter | Ø 3.35 in (85 mm) |
| Tailstock Quill Taper | #5 MT |
| Tailstock Quill Travel | 7 in (178 mm) |
| Ball Screw Diameter X Z | Ø 0.98 in (25 mm) P5 C5 / Ø 1.97 in (50 mm) P10 C5 |
| Rapid Traverse X Z | X = 295 ipm (7.5 m/min) / Z = 394 ipm (10 m/min) |
| Positioning Accuracy | ± 0.0005 in (0.01 mm) |
| Repeatability | ± 0.0002 in (0.005 mm) |
| Resolution | ± 0.0001 in (0.002 mm) |
| Hydraulic Tank | 6.6 gal (25 liters) standard, 10.5 gal (40 liters) optional |
| Coolant Tank | 31.70 gal (120 liters) |
| Machine Weight | 4,400 kg (9,700 lb) / 4,900 kg (10,802 lb) (net / gross, approx.) |
| Packing Dimensions | 145.7 in x 90.6 in x 87.8 in (3,700 mm x 2,300 mm x 2,230 mm) |
Specifications sourced from lagun.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Extra-large 3.58 in (91 mm) spindle bore with A2-8 mount, as described by the maker
- Spindle on double row cylindrical roller bearings with angular contact thrust bearings
- 46.45 in (1,180 mm) working length and Ø 12.8 in (325 mm) working diameter
- Ø 3.35 in (85 mm) tailstock quill with 7 in (178 mm) of travel
- 31.70 gal (120 liters) coolant tank
Limitations
- AC 12 HP (9 kW) spindle motor is small for the bore and swing
- Manual 4-way tool post is the listed standard; no turret appears in the table
- Rapid traverse is 295 ipm (7.5 m/min) in X and 394 ipm (10 m/min) in Z
- Weighs 4,400 kg (9,700 lb) net, with a packing length of 145.7 in
Best For
Frequently Asked Questions
01
Lagun Engineering's description gives an extra-large 3.58 in (91 mm) spindle bore with an A2-8 spindle mount. The specification table lists the nose as ASA A2-8 with a Ø 3.8 in (97 mm) register and an internal taper of 1/20.
02
Speed is infinitely variable from 35 to 3,500 rpm, programmable, with constant surface speed. The motor is listed as an AC 12 HP (9 kW) wide range heavy duty Fanuc AC spindle motor.
03
04
The bed has 2 V and 2 flat ways, induction hardened and precision ground, 13.58 in (345 mm) wide. The X axis uses a Ø 0.98 in (25 mm) ball screw and the Z axis a Ø 1.97 in (50 mm) screw. The maker describes the X slide as riding on Turcite anti-friction surfaces.
